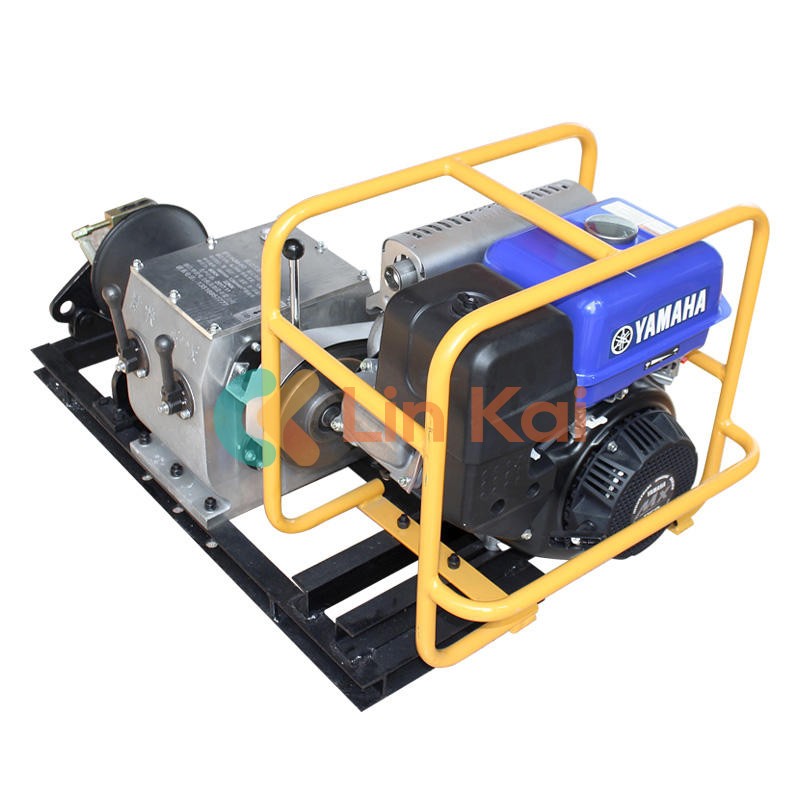

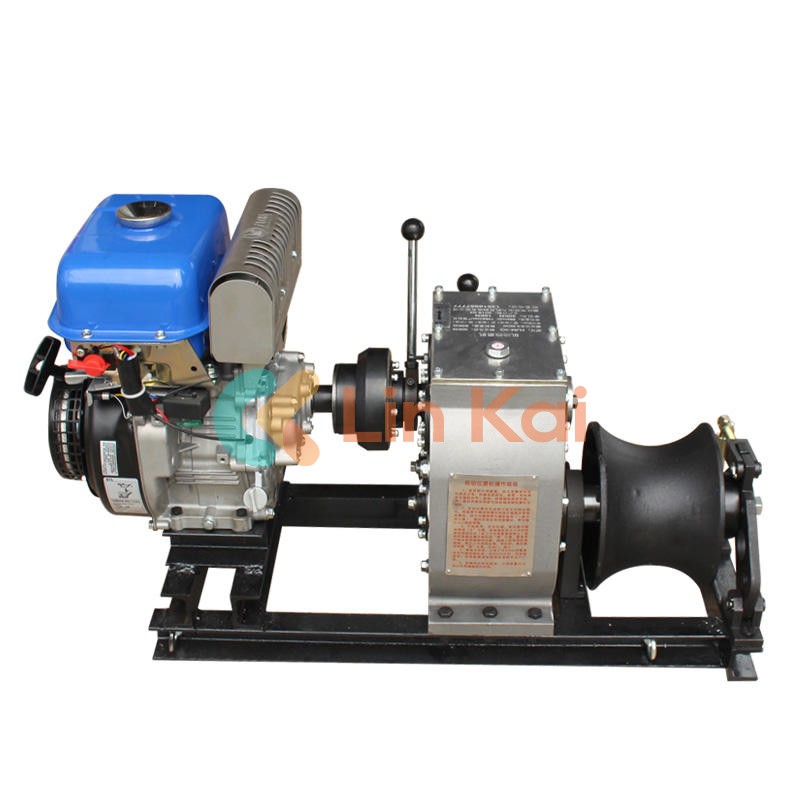

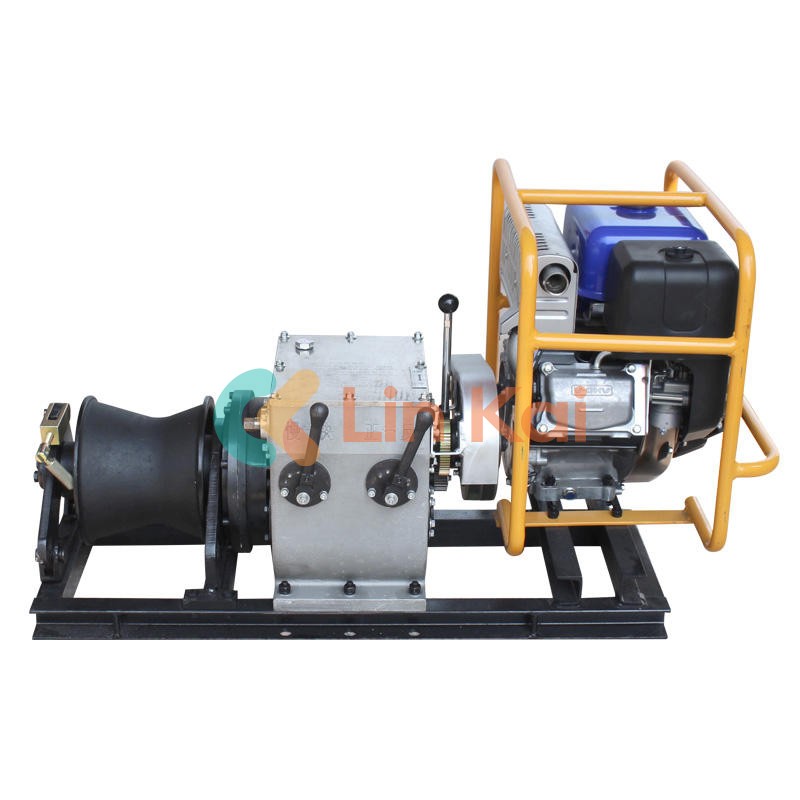

Petrol Engine Powered Winch Manufactured by Ningbo Lingkai, the power can be configured according to used requirements. It is suitable for the construction of tower lines, traction lines, tight line operations, and cable lying.
Petrol Engine Powered Winch customized to the drum size, along with the steel wire rope and steel wire diameter, can all be met if you have a proposal. Shaft-driven transmission line pulling winches have shaft direct connection drive, a compact structure, and fast traction speed features.
When ordering the Petrol Engine Powered Winch, you can tell us the site you applied to and the engine you demanded. The diesel engine has the characteristics of low speed and high torque, and it is more fuel efficient. The patrol engine has a light weight, high HP, and fast speed.
Fast powered shaft driven winch data sheet
|
Item number |
Model |
Rotation direction |
Gear |
Tractive force （T） |
Traction speed （M/MIN） |
Power （KW） |
Outline size （MM） |
Weight （KG） |
|
09131 |
JJQ-30 6HP Gasoline engine |
corotation |
SlowⅠ |
3.0 |
5 |
4.04 |
900x400x430 |
94 |
|
SlowⅡ |
2.0 |
7 |
||||||
|
FastⅠ |
0.9 |
16 |
||||||
|
FastⅡ |
0.6 |
24 |
||||||
|
reversal |
Slow |
No lifting |
4 |
|||||
|
Fast |
13 |
|||||||
|
09131A |
JJC-3 5HP Diesel engine |
corotation |
SlowⅠ |
3.0 |
5 |
2.90 |
1000x450x500 |
115 |
|
SlowⅡ |
2.0 |
7 |
||||||
|
FastⅠ |
0.9 |
16 |
||||||
|
FastⅡ |
0.6 |
24 |
||||||
|
reversal |
Slow |
No lifting |
4 |
|||||
|
Fast |
13 |
|||||||
|
09135 |
JJQ-5B 9HP Gasoline engine |
corotation |
FastⅠ |
0.9 |
24 |
6.6 |
1100x525x600 |
138 |
|
FastⅡ |
1.5 |
13 |
||||||
|
SlowⅠ |
2.5 |
8 |
||||||
|
SlowⅡ |
5.0 |
4 |
||||||
|
reversal |
Slow |
No lifting |
4 |
|||||
|
Fast |
18 |
|||||||
|
09135A |
JJC-5B 186F Diesel engine |
corotation |
FastⅠ |
0.9 |
24 |
5.7 |
1000x498x600 |
148 |
|
FastⅡ |
1.5 |
13 |
||||||
|
lowⅠ |
2.5 |
8 |
||||||
|
SlowⅡ |
5.0 |
4 |
||||||
|
reversal |
Slow |
No lifting |
4 |
|||||
|
Slow |
18 |
|
Item number |
Model |
Rotation direction |
Gear |
rotational speed （） |
Traction speed （m/min） |
Tractive force （T） |
Power （KW） |
Outline size （mm） |
Weight （kg） |
|
09121 |
JJQ-3Q 6HP Gasoline engine |
corotation |
Ⅰ Slow |
9.0 |
4.0 |
3.0 |
4.04 |
840x450x500 |
82 |
|
Ⅱ Fast |
16.0 |
6.6 |
1.8 |
780x450x500 |
85 |
||||
|
reversal |
Reverse |
7.5 |
3.3 |
No lifting |
|||||
|
09121A |
JJC-30 170F Diesel engine |
corotation |
Ⅰ Slow |
11.5 |
5.0 |
3.0 |
2.94 |
840x600x500 |
108 |
|
Ⅱ Fast |
21.0 |
9.0 |
1.8 |
||||||
|
reversal |
Reverse |
10.0 |
4.5 |
No lifting |
|||||
|
09121B |
JJD-30 3KW Electromotor |
corotation |
Ⅰ Slow |
8.5 |
4.0 |
3.0 |
3.00 |
770x600x460 |
108 |
|
Ⅱ Fast |
10.5 |
6.5 |
1.8 |
||||||
|
reversal |
Reverse |
7.0 |
3.0 |
No lifting |
|||||
|
09123 |
JJQ-50 9HP Gasoline engine |
corotation |
Ⅰ Slow |
6.5 |
4.0 |
5.0 |
6.61 |
1000x550x520 |
135 |
|
Ⅱ Fast |
16.0 |
9.0 |
2.2 |
||||||
|
reversal |
Reverse |
7.0 |
4.0 |
No lifting |
|||||
|
09123A |
JJC-50 6.6HP Diesel engine |
corotation |
Ⅰ Slow |
8.0 |
4.5 |
5.0 |
4.41 |
1000x750x600 |
168 |
|
Ⅱ Fast |
19.0 |
11.0 |
2.3 |
||||||
|
reversal |
Reverse |
10.0 |
5.5 |
No lifting |
|||||
|
09123B |
JJD-50 4KW Electromotor |
corotation |
Ⅰ Slow |
5.5 |
3.5 |
5.0 |
4.00 |
1000x850x520 |
160 |
|
Ⅱ Fast |
14.0 |
8.0 |
3.0 |
||||||
|
reversal |
Reverse |
7.0 |
4.0 |
No lifting |
|||||
|
09125 |
JJQ-80 13HP Gasoline engine |
corotation |
Ⅰ Slow |
5 |
3 |
8 |
9.60 |
1000x550x520 |
168 |
|
Ⅱ Fast |
9 |
5 |
4.5 |
||||||
|
reversal |
Reverse |
5 |
3 |
No lifting |
|||||
|
09125A |
JJC-80 10.5HP Diesel engine |
corotation |
Ⅰ Slow |
7 |
4 |
8 |
7.86 |
1000x750x630 |
230 |
|
Ⅱ Fast |
13 |
7.5 |
4 |
||||||
|
reversal |
Reverse |
6.5 |
3.7 |
No lifting |
