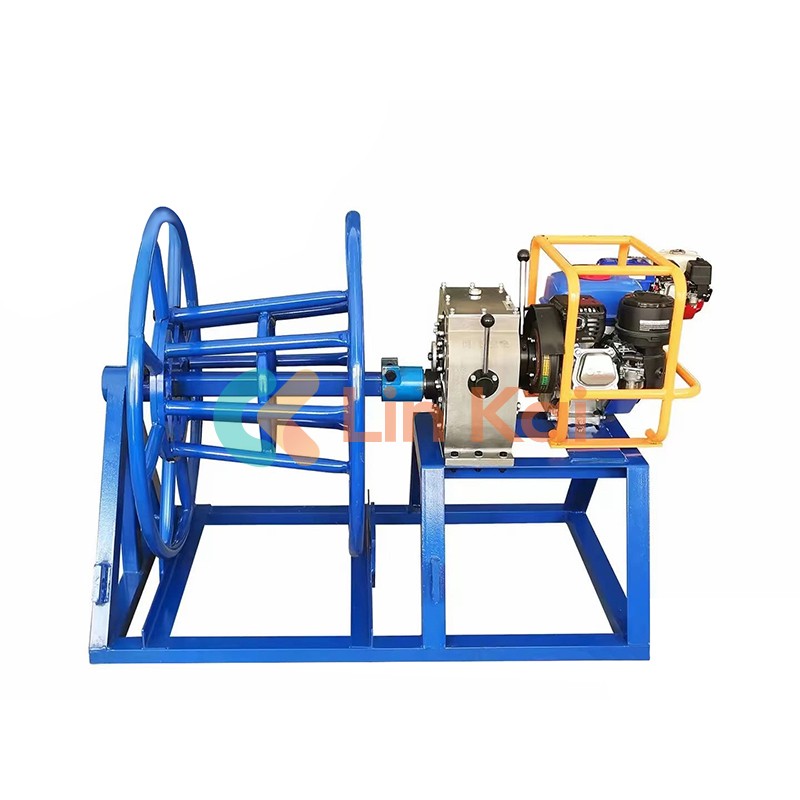

Wire take up winch made in China by Ningbo Lingkai Manufacture is a take-up winch that can be used for pulling small cables on site or retrieving old conductor and earth wire in a conductor changing or OPGW changing project.
Our customized wire take up winch has different power engines and different speeds, so when you inquire about this machine, you can freely share with us your site demands, and we will technically propose one type and design one type for you on site. A motorized cable take-up winch machine is widely used for withdrawing the old conductor or earth wire in transmission.

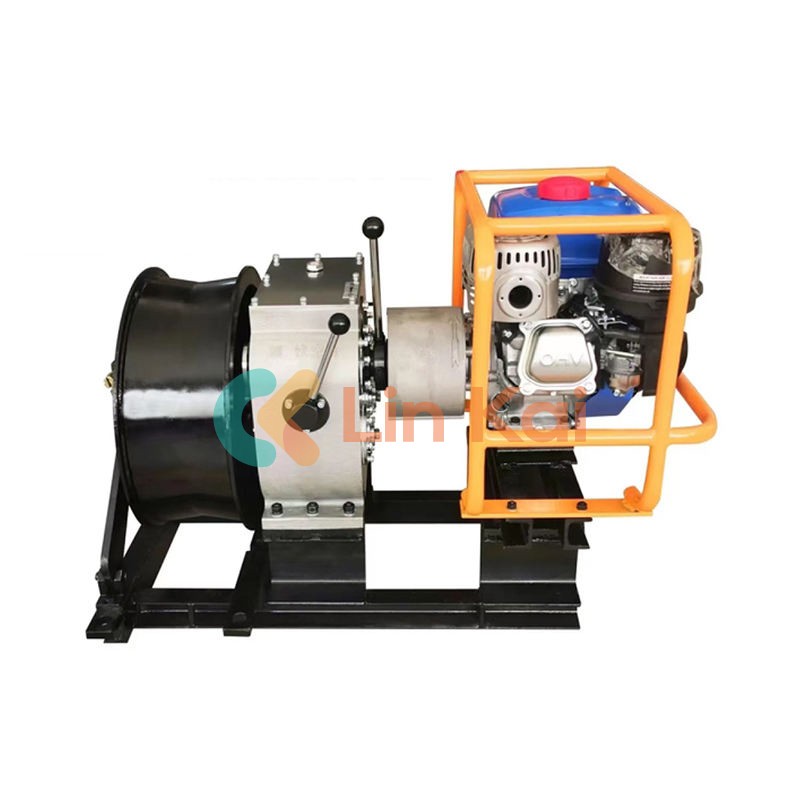

Motorized cable wire take up winch machine, the machine can be equipped with a Honda engine, a Yamaha engine, or a famous diesel domestic engine. And the steel drum can be detachable to change the old conductor or earth wire
|
Item No. |
08151 |
08152 |
|
|
Model |
SJZ-10B |
SJZ-10C |
|
|
Engine |
Model |
GX160 Gasoline engine |
Z170F Diesel engine |
|
Power (hp) |
5.5 |
4 |
|
|
Speed (rpm) |
1500 |
2600 |
|
|
Max. take-up force (KN) |
10 |
10 |
|
|
Max. Take-up speed (m/min) |
41 |
41 |
|
|
Reel Capacity (m) |
ACSR95mm² |
600 |
600 |
|
ACSR120mm² |
460 |
460 |
|
|
ACSR185mm² |
320 |
320 |
|
|
Weight (kg) |
150 |
165 |
|
|
Dimension (m) |
1.2 x 0.9 x 1 |
1.2 x 0.9 x 1 |
|
|

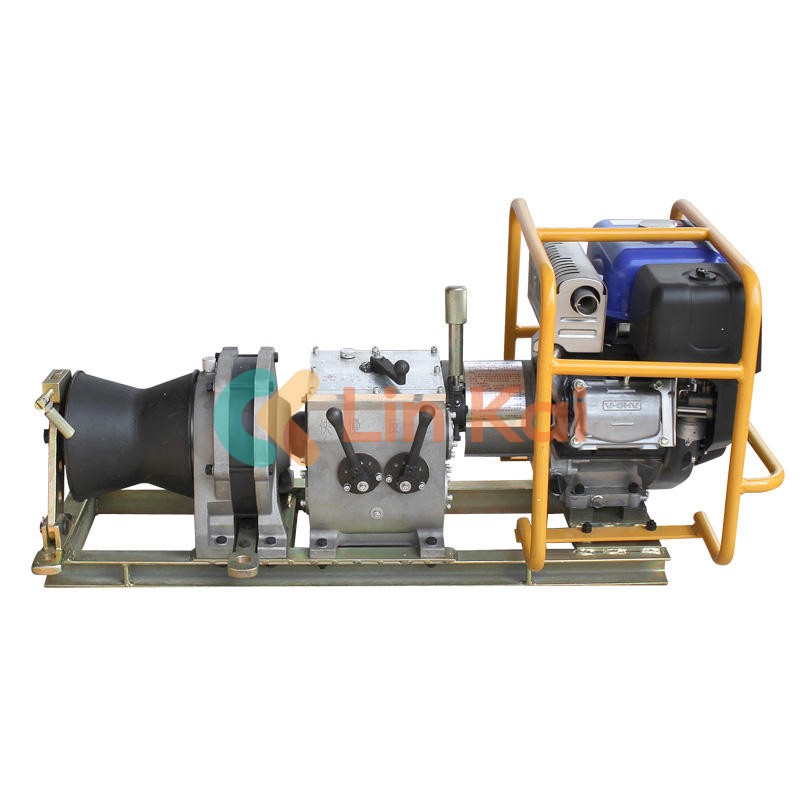

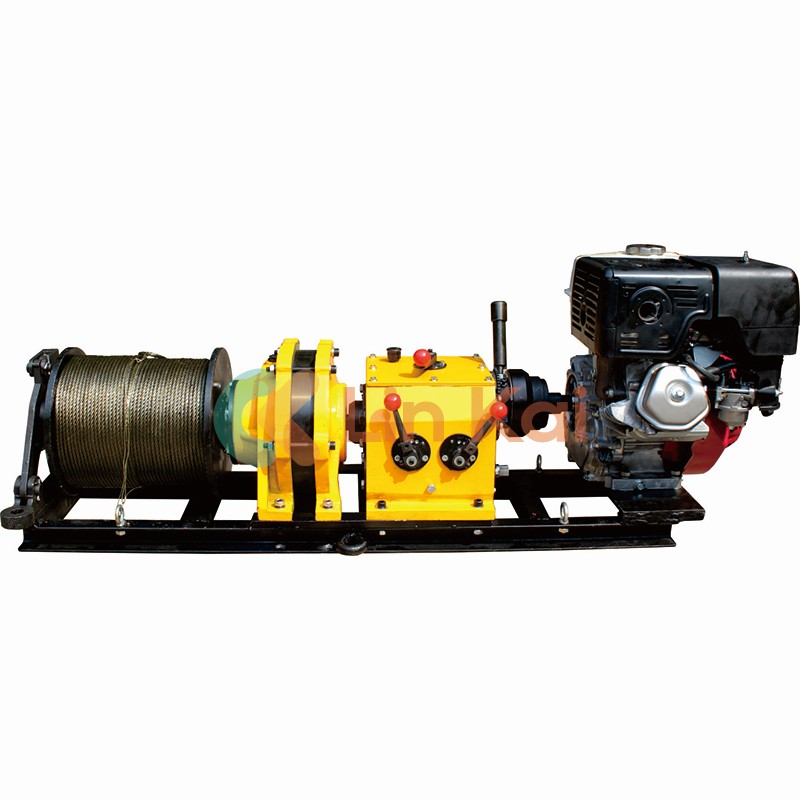

Item No. |
08192 |
08193 |
08194 |
|
|
Model |
LJ-300B |
LJ-500A |
LJ-500 |
|
|
Diameter of Capstans (mm) |
Φ300 |
Φ500 |
Φ500 |
|
|
Petrol Engine |
Model |
Petrol GX270 |
R175A |
Petrol GX270 |
|
Power (hp) |
9 |
6 |
9 |
|
|
Speed (rpm) |
3600 |
2600 |
3600 |
|
|
Pull force (KN) / Pull speed (m/min) |
I |
25/8.5 |
16/10.5 |
16/13.6 |
|
II |
15/13.4 |
10/16.6 |
10/21.5 |
|
|
III |
6/33.5 |
4/40.8 |
4/53.6 |
|
|
Reverse |
/9.6 |
/11.8 |
/15.3 |
|
|
Dimension (mm) |
870 x 620 x 650 |
920 x 700 x 710 |
900 x 700 x 710 |
|
|
Weight (kg) |
140 |
190 |
150 |
|
