Name:
|
Hydraulic Crimping Tools
|
Model:
|
YQK240
|
||||
|
Crimping Force:
|
100kn
|
Criming Range:
|
16-240mm2
|
Stroke:
|
20mm
|
Length:
|
470mm
|

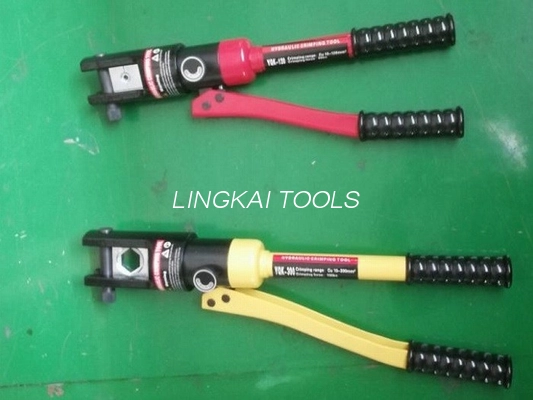

Portable YQK-240 Hydraulic Cable Lug Crimping Tools Crimping Plier Crimping Up to 240mm2
|
Item number |
16181 | 16182 | 16183 |
|
Model |
YQK-120 | YQK-240 | YQK-300 |
|
Crimping force |
80KN | 100KN | 100KN |
|
Crimping range |
10-120mm² | 16-240mm² | 16-300mm² |
|
Crimping
type |
hexagon crimping |
hexagon crimping |
hexagon crimping |
|
Dies |
10,16,25,35,50, 70,95,120mm² |
16,25,35,50,70,95, 120,150,185,240mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
|
Stroke |
16mm | 20mm | 20mm |
|
Length |
approx.410mm | approx.470mm | approx.470mm |
|
(KG) Weight |
approx.N.W3.4KG G.W4.5KG |
approx.N.W4KG G.W6KG |
approx.N.W4.5KG G.W6.5KG |
|
Package |
plastic box | plastic box | plastic box |
Features:
Hydraulic Crimping Tool is a processional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4 mm2 to 1000 mm2 to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided by special making..
