Force: |
30KN |
Engine: |
5hp Diesel Engine |
Feature: |
Fast Speed |
Apply: |
Power Line Construction |
Slow II: |
3t |
SlowI: |
2t |

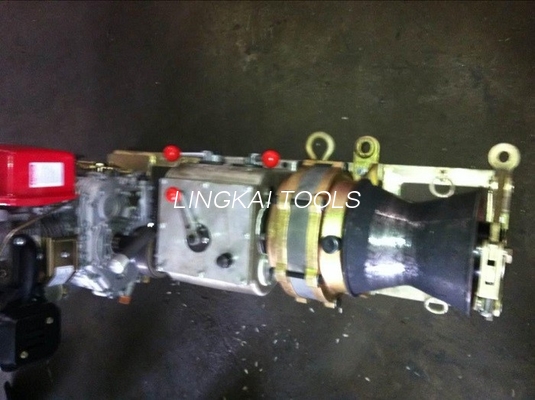

3 Tons Shafted Ddriven Cable Powered Pulling Winch with Diesel Engine 5HP
3Tons Shafted driven cable powered pulling winch with diesel engine is used to erecting pylon and sagging operation in the construction.This kind machine is cooled by air, so not adding water.
Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.
Feature: Shaft direct connection drive,compact structure,fast traction speed.
Fast Powered Winch(Shaft drive)
Item number | Model | Rotation | Gear | (T) | (M/MIN) | (KW) | (MM) | (KG) |
| 09131 | JJQ-30 | corotation | Slow鈪?/td> | 3.0 | 5 | 4.04 | 900x400x430 | 94 |
| Slow鈪?/td> | 2.0 | 7 | ||||||
| Fast鈪?/td> | 0.9 | 16 | ||||||
| Fast鈪?/td> | 0.6 | 24 | ||||||
reversal | Slow | No lifting | 4 | |||||
| Fast | 13 | |||||||
| 09131A | JJC-3 | corotation | Slow鈪?/td> | 3.0 | 5 | 2.90 | 1000x450x500 | 115 |
| Slow鈪?/td> | 2.0 | 7 | ||||||
| Fast鈪?/td> | 0.9 | 16 | ||||||
| Fast鈪?/td> | 0.6 | 24 | ||||||
reversal | Slow | No lifting | 4 | |||||
| Fast | 13 | |||||||
| 09135 | JJQ-5B | corotation | Fast鈪?/td> | 0.9 | 24 | 6.6 | 1100x525x600 | 138 |
| Fast鈪?/td> | 1.5 | 13 | ||||||
| Slow鈪?/td> | 2.5 | 8 | ||||||
| Slow鈪?/td> | 5.0 | 4 | ||||||
reversal | Slow | No lifting | 4 | |||||
| Fast | 18 | |||||||
| 09135A | JJC-5B | corotation | Fast鈪?/td> | 0.9 | 24 | 5.7 | 1000x498x600 | 148 |
| Fast鈪?/td> | 1.5 | 13 | ||||||
| Slow鈪?/td> | 2.5 | 8 | ||||||
| Slow鈪?/td> | 5.0 | 4 | ||||||
reversal | Slow | No lifting | 4 | |||||
| Slow | 18 |
