Model: |
SIK-5 |
Name: |
Mechanical Cable Stand |
Rated Load: |
50KN |
Adjustable Height: |
900-1300mm |
Weight: |
44kg |
Type: |
Simple Reel Stand |

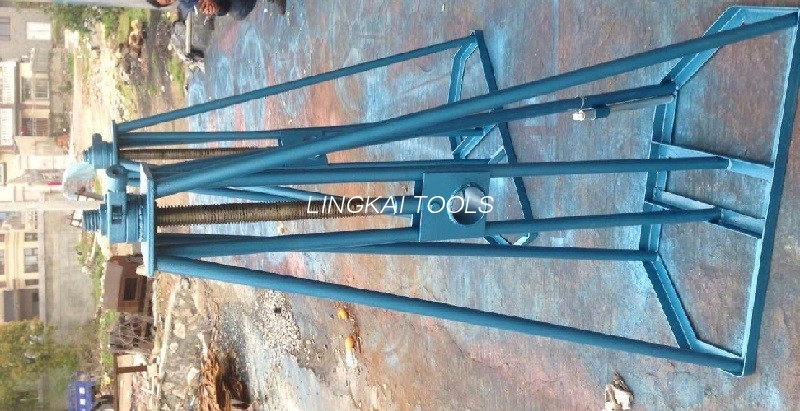

SIK Model 5 Ton Mechanical Cable Reel Stand Cable Reel Stand for Cable Drum to Stringing
Mechanical Cable Reel Stand Cable Reel Stand for Cable Drum to String
|
Item number |
Model |
(KN)Load |
Height Adjustment Range |
(KG) Weight |
| 15191 | SIL-1 | 10 | 450-650 | 22 |
| 15192 | SIL-3 | 30 | 600-900 | 24 |
| 15193 | SIL-5 | 50 | 900-1300 | 27 |
| 15201 | SIK-3 | 30 | 600-900 | 30 |
| 15202 | SIK-5 | 50 | 900-1300 | 44 |
| 15211 | SIK-3A | 30 | 600-900 | 28 |
| 15212 | SIL-5A | 50 | 900-1300 | 35 |
Simple reel stand Configuration:Apply to adjusting reel by screw mandrel. Product is used for wire releasing manual.
Explain: Axle is need to buy in additional.
This simple reel pay-out stand cable drum lifting jacks we are making three types, one is the colume type one is the farme type, the only different is the stand plate. To suit to the different construction site, you can freely choose the one accordingly. All are stable enough to hold on the drum.
