Model:
|
SLWC
|
Brand:
|
LINGSHENG
|
||||
|
Cable Dia:
|
Max150mm
|
Breaking Load:
|
60KN
|
Name:
|
Mesh Sock Joint
|
Feature:
|
Single Head
|

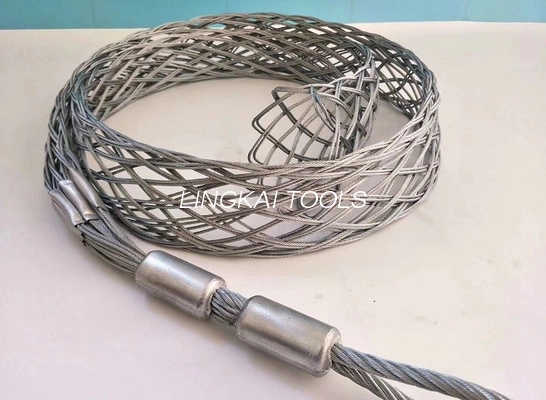

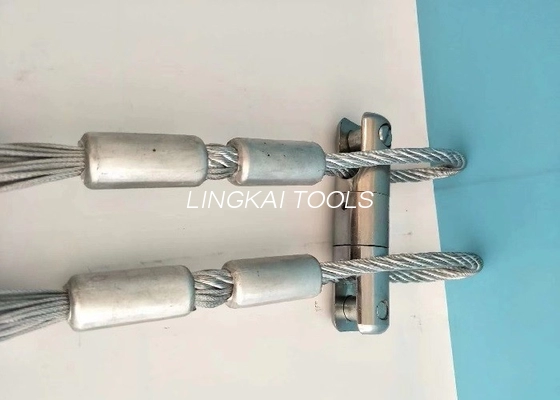

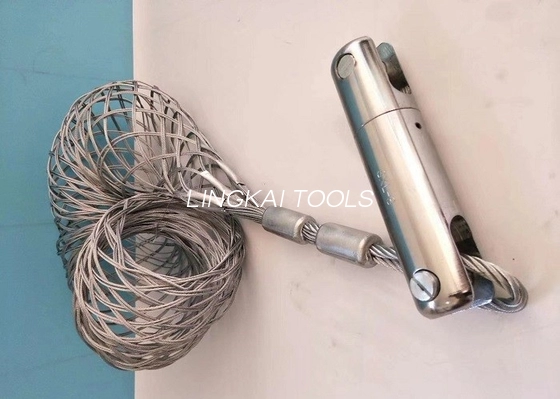

Single Head Temporary Mesh Sock Joints Stringing Equipment Pulling Grips
1. Transmission Line Stringing Equipment Accessories & Tools
2. Temporary Mesh Sock Joints
3. Rated Load: 30kN
4. Apply for electric power ,communication ,optical fiber cable
5. Type: One head
6. Breaking Load: 60kN
7. Lingsheng Brand
The one head type temporary mesh sock joints are specifically designed to temporarily connect the cable to the pulling rope. It is applied for electric power ,communication ,optical fiber cable. They consist of steel wires, which effectively distribute the gripping effect on the cable.
Specification of Temporary Mesh Sock Joints :
| Model | Cable diameter(mm) | Rated load (kN) | Breaking load(kN) |
| SLWC-0.8 | Φ12-16 | 8 | 16 |
| SLWC-1 | Φ16-20 | 10 | 20 |
| SLWC-1.2 | Φ20-25 | 12 | 25 |
| SLWC-1.8 | Φ25-37 | 18 | 36 |
| SLWC-2.8 | Φ37-50 | 28 | 60 |
| SLWC-1.5 | Φ50-60 | 15 | 30 |
| SLWC-2 | Φ60-80 | 20 | 40 |
| SLWC-2.5 | Φ80-100 | 25 | 50 |
| SLWC-3 | Φ100-120 | 30 | 60 |
| SLWC-3 | Φ120-150 | 30 | 60 |
Choosing the right type cable net, when pulling ,it will not slip. can effectively save the manpower, force,material and large tensile load;
If you select larger than needed cable net model, it easily lead to slip of the pulling cable.Then the seller will ask you to use the wire tie locking it, which is a wrong approach of wasting time and no tension. If broken or slip during the listing process, there will be security risk.
