Model:
|
SQY5C
|
Engine:
|
Diesel Driven
|
||||
|
Name:
|
Cable Pulling Winch
|
Type:
|
Double Drum Winch
|
Pulling Force:
|
5ton
|
Apply:
|
Pulling Rope
|

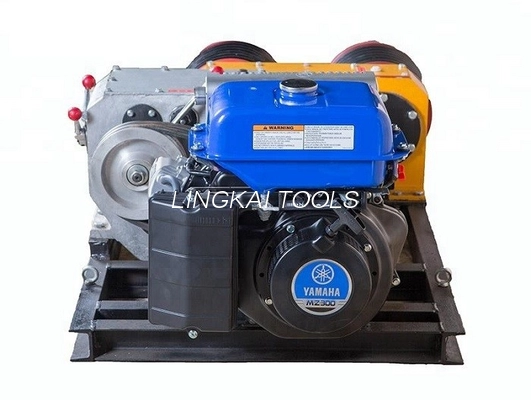

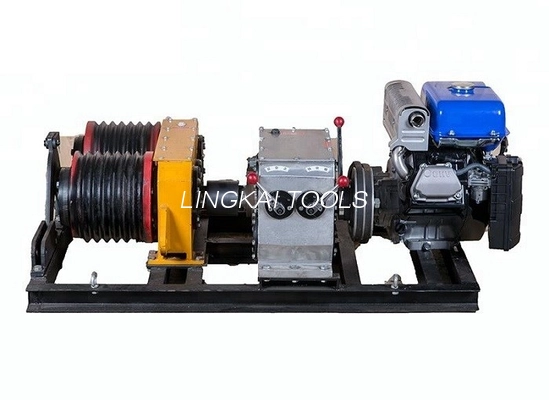

5 Ton Double Drum Diesel Engine Cable Pulling Winch in Power Construction
TECHNICAL SPECIFICATIONS
| Model | engine |
Gear |
Rev(rpm) | Line speed(m/min) | Pulling force(KN) | Weight(kg) | |
|
SQY5C |
Diesel engine |
forward |
鈪?/p> 鈪?/p> 鈪?/p> |
12 31 59 |
12.7 32 60 |
50 35 15 |
428
|
| reverse |
鈪?/p> 鈪?/p> 鈪?/p> |
12 31 59 |
12.7 32 60 |
No lifting |
|||
CHARACTERISTICS
1, It is a new multipurpose cableway traction device: It can be used for not only reciprocating cableway systems but also circulating ropeway systems.
2, It comes with a power source, using a highly efficient diesel or gasoline engine, the power output by belt to the traction machine for non-power applications.
3, It has a manually operated clutch power input device, you can start or stop the cableway tractor anytime.
4, The gearbox is made up of a multi-stage gear .It can easily operate the shift, for a variety of speed adjustment purposes.
5, It is made up of : 1.Engine power 2.Gearbox 3.Reduction Gearbox 4.Double Traction Wheels 5.Steel Frame Total main five parts, each part are suitable for manual handling, easy through a variety of complex terrain.
6, It has a special sub-body positioning device to facilitate rapid assembly of the tractor in place after removal of the split.
