Rated Load:
|
30 KN
|
Weight:
|
4.1 KG
|
||||
|
Max Gap:
|
15 Mm
|
Applicable:
|
70~120mm2
|
Usage:
|
Tighten Wire
|
Feature:
|
Light Weight
|

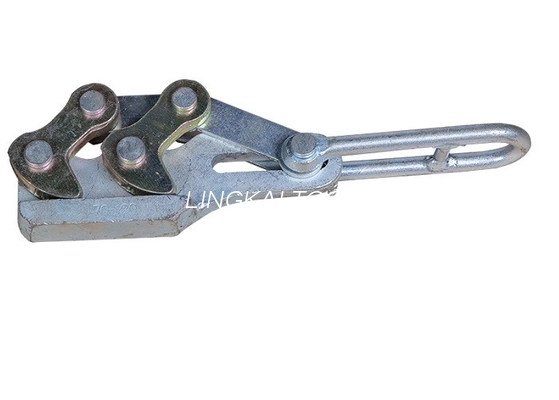

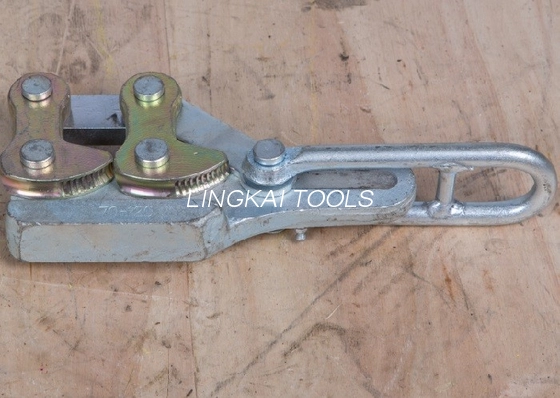

10-30 KN Max 15mm Gap Erection Tools Eccentric Wire Grip Clamp For Earth Wire
Accenter earth wire gripper it is widely used in the power construciton, it is for sagging of earthwires and adjustment of guys.
This steel eccentric wire grip is very small, easy to use. Clamp mouth with latch insurance device, will not jump the line. this dual cam gripper is also strong resistance to tension... meshing degree is high, not slippage deforamtion. Because it is made after the special heat treatment.
Dual-cam Earth Wire Gripper Spec
| Product No. | Model Type | Adapt Steel Strand(mm2) | Rated Load(KN) | Max Open(mm) | Weight(KG) |
| 13141 | SKDS-1 | 25-70 | 10 | 11 | 2.6 |
| 13142 | SKDS-2 | 50-70 | 20 | 13 | 3.1 |
| 13143 | SKDS-3 | 70-120 | 30 | 15 | 4.1 |
Related Gripper in Pant
Universal griiper is suitable for steel wire, aluminum wire, ACSR and insulated conductor;
Dual cam eath wire gripper is for sagging of earth wires adn adjustment of guy wires.
Anti twist steel rope gripper is applied to grip anti twist steel rope.
