Model: |
SHDN508 |
Sheave: |
1 |
Rated Load: |
20KN |
Name: |
Stringing Blocks |
Material: |
MC Nylon Sheave |
No: |
10104 |

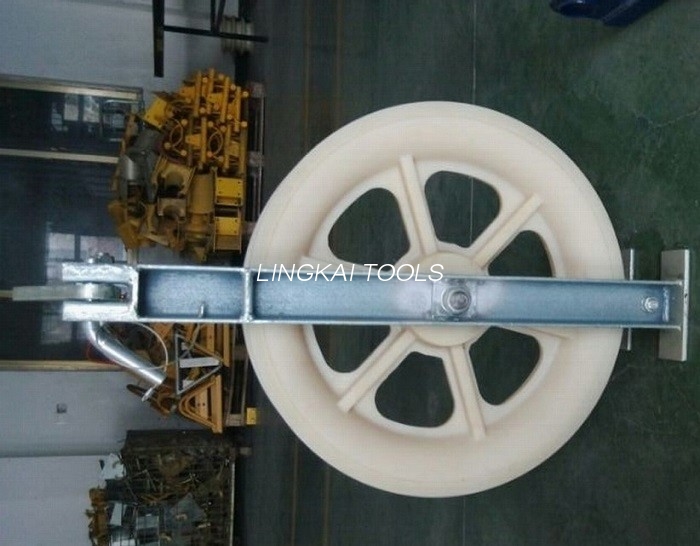

508mm Diameter Stringing Block for Single Conductor on Overhead Transmission Line Construction
Uses: Apply to paying off single conductor, twin bundled conductor or four bundled conductor on
overhead transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with
rubber liner or strengther nylon wheel with PU liner.
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) |
Features |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber lined aluminium sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104/10104A | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 |
