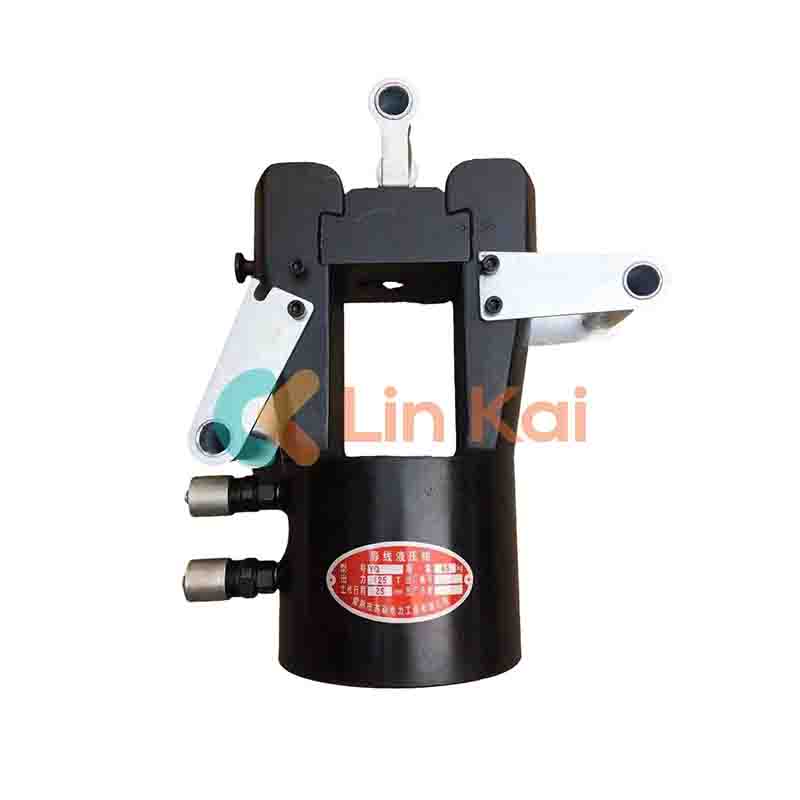

You can rest assured to buy 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor from our factory. The material for Hydraulic Compressor Machine Motorized is 42CrMo forging. Hydraulic Compressor Machine Motorized for Acsr Conductor can be applied for crimping high voltage cable sleeve, wire grips, un-insulated terminals, and hexagon terminals.
200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor are specifically designed for crimping overhead tension sleeves on power lines with a voltage of 110KV or higher. These tools are essential for ensuring a secure and long-lasting connection between power line components.
In addition to overhead power lines, 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor is also ideal for underground cable connecting. Their precision and accuracy make them perfect for use in scenarios where a strong and reliable connection is crucial. The crimping process, performed by hydraulic compression tools, involves pressing two metal components together to form a solid and reliable connection. This process is made possible by the use of hydraulic pressure, which allows a high degree of control over the crimping force applied to the components.
Overall, 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor is an essential piece of equipment for all power line maintenance and installation professionals. Without the use of these tools, the safety, reliability, and longevity of a power line could be compromised.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|

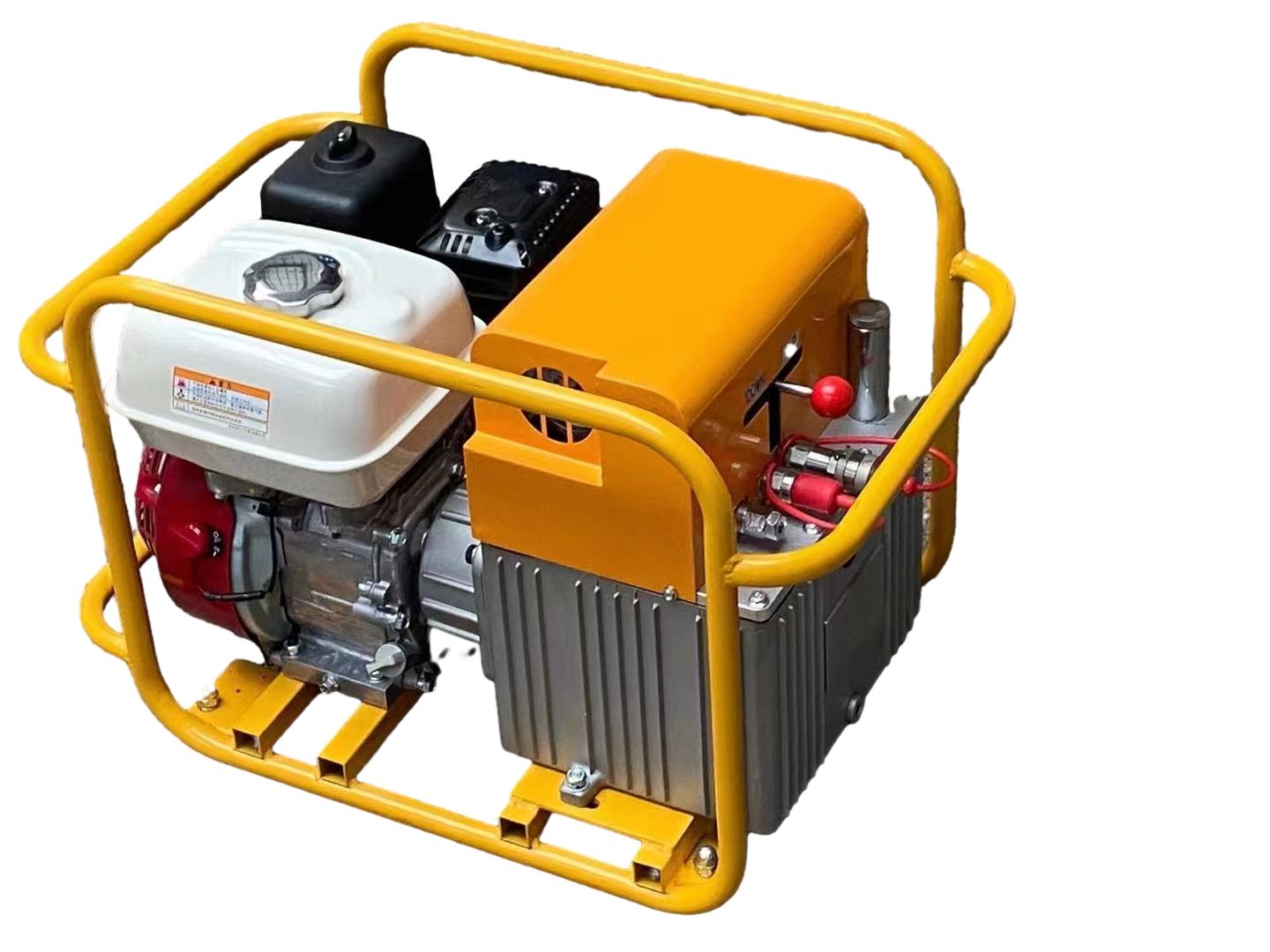

16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
11.02-2.05 |
5.0 |
55 |
It should be noted that the 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor’s pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.
A normal hydraulic hose is three meters long. Extended Hose is not required.
|

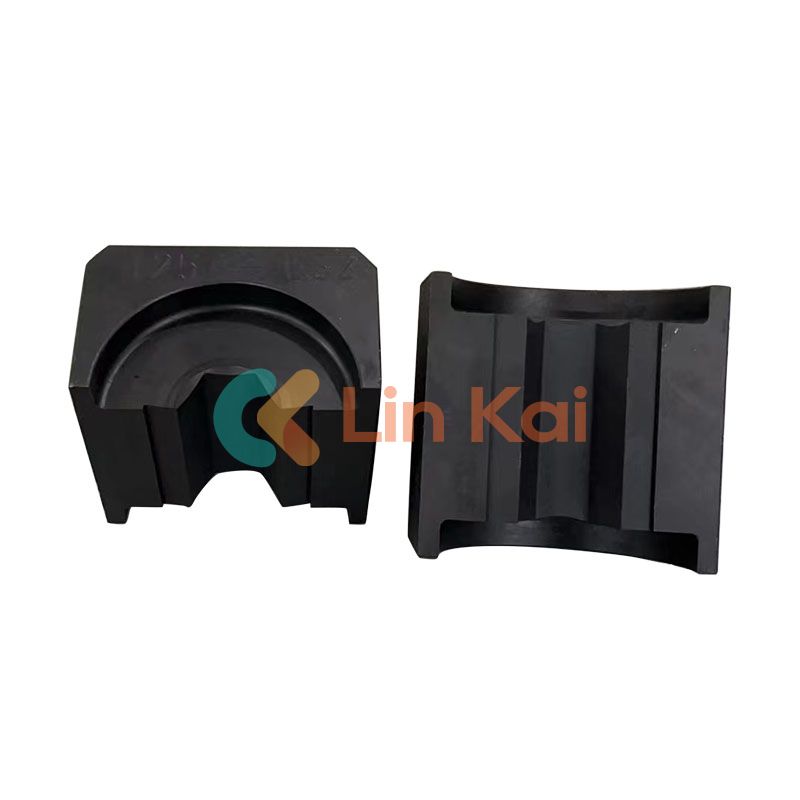

Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
