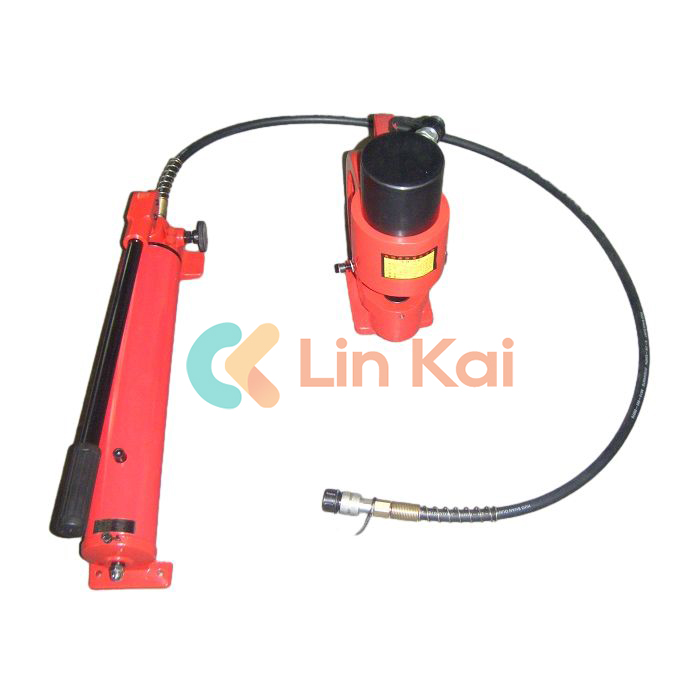

Hydraulic Puncher made in China by LingKai Manufacturer is designed for punching holes in Cu or Al bus bars. It is also used for drilling a supplemental hole in an erected tower.
The Hydraulic Puncher is very fast-speeding, punching in an accurate position without deviation. All kinds of punching dies could be ordered. The tools are useful for working on towers, are light in weight, and are easy to operate.
Whole sale Hydraulic Puncher could avoid cutting scraps while punching holes. It is much safer and clearer during operation. A portable unit could be taken to the site or fixed in the factory for batch punching work. Standard assembly of four dies in 10.5, 13.5, 17, 18, and 20.5 mm is supplied with the puncher. We packed in a wooden box, one fixing spanner, and one hexagon spanner assembled.
|
Model |
Output (T) |
Working range(mm) |
Die |
Throat depth (mm) |
Weight (kg) |
|
CH60 |
30T |
D 20.5x8mm |
10.5;13.5;17.5;20.5 |
90 |
14 |
|
CH70 |
35T |
D 20.5x12mm |
10.5;13.5;17.5;20.5 |
110 |
28 |
|
CH70B |
31T |
D 20.5x10mm |
10.5;12;17.;20.5 |
75 |
10 |
|
CH80 |
35T |
D 25x16mm |
16;118;22;25 |
115 |
30 |
