Lingkai’s Hydraulic Crimping Tools in bulk have an open-cut design for convenient operation. Dies are quickly put on the tube by a double-speed unit, then the compression force lifts and automatically switches to low speed. The operation finishes with energy savings and time savings. The head of Hydraulic Crimping Tools can be rotated 180 °freely for narrow space working.

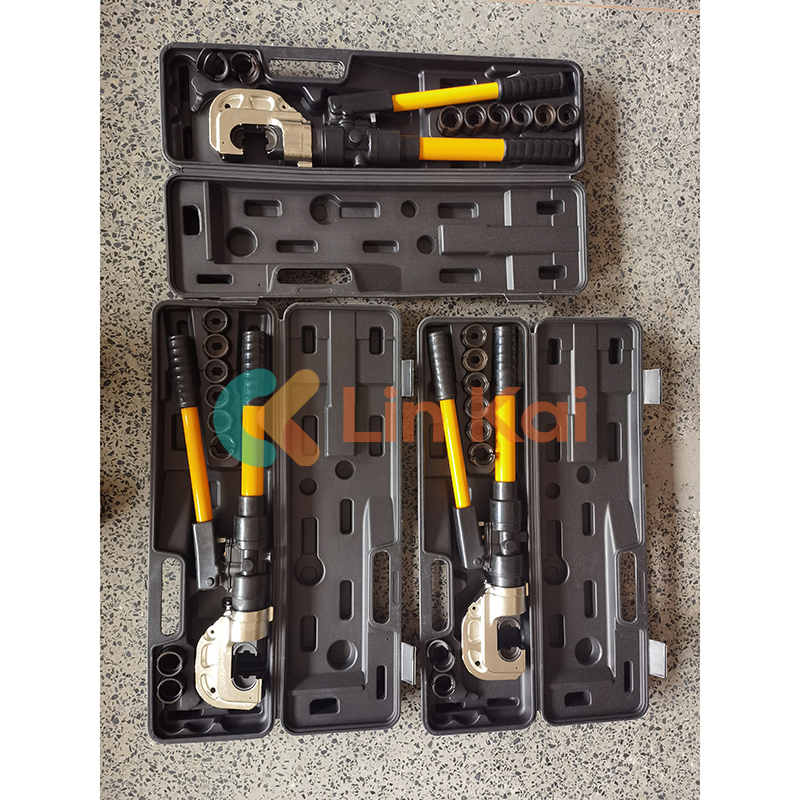

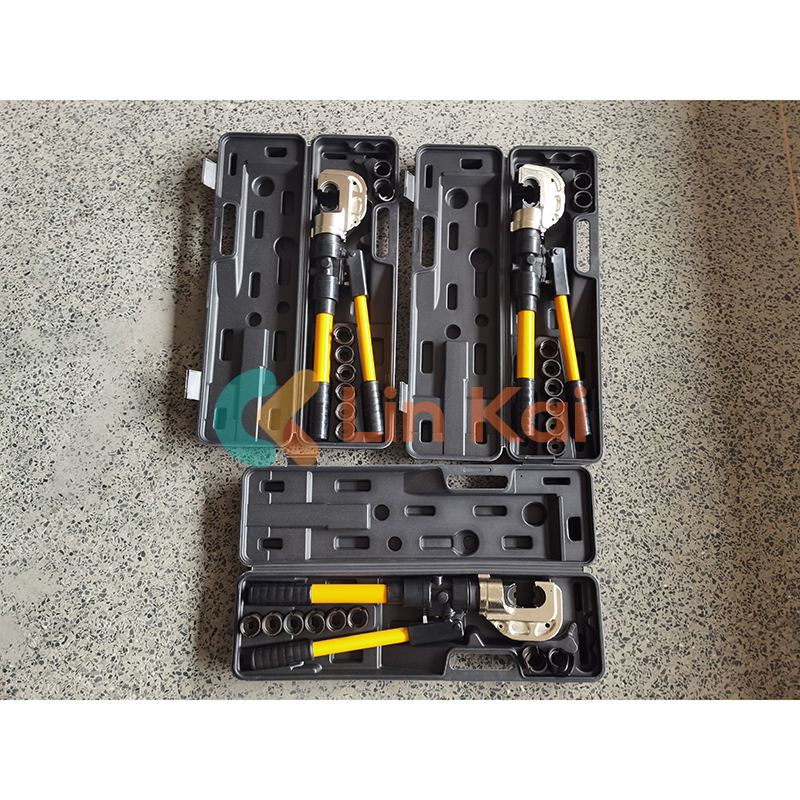

High-quality hydraulic crimping tools are fitted with a safety valve. When pressure reaches a limited maximum value, the pressure is released automatically to prevent overpressure. Our compression pliers are packed in a robust, integral plastic box.
|
Model |
Output |
Range |
Stoke |
Die |
Weight |
|
CYO-510 |
120KN |
50-400 |
38mm |
50,70,95,120,150,185,240,300,400 |
7.5 kg |
|

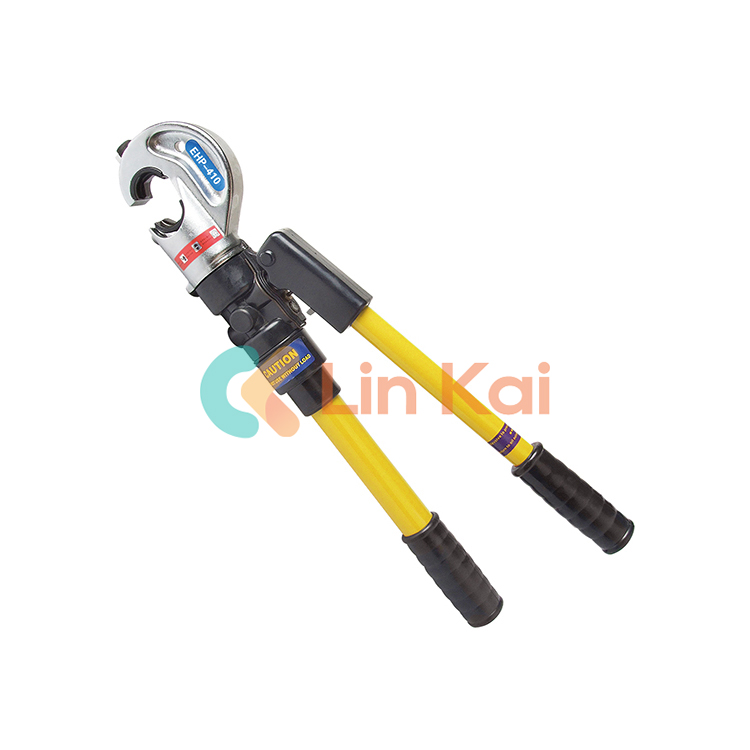

EHP-410 |
120KN |
35-300 |
30mm |
35,50,70,95,120,150,185,240,300 |
6.8 kg |
|
EP-430 |
120KN |
35-300 |
30mm |
50,70,95,120,150,185,240,300,400 |
6.8 kg |
|

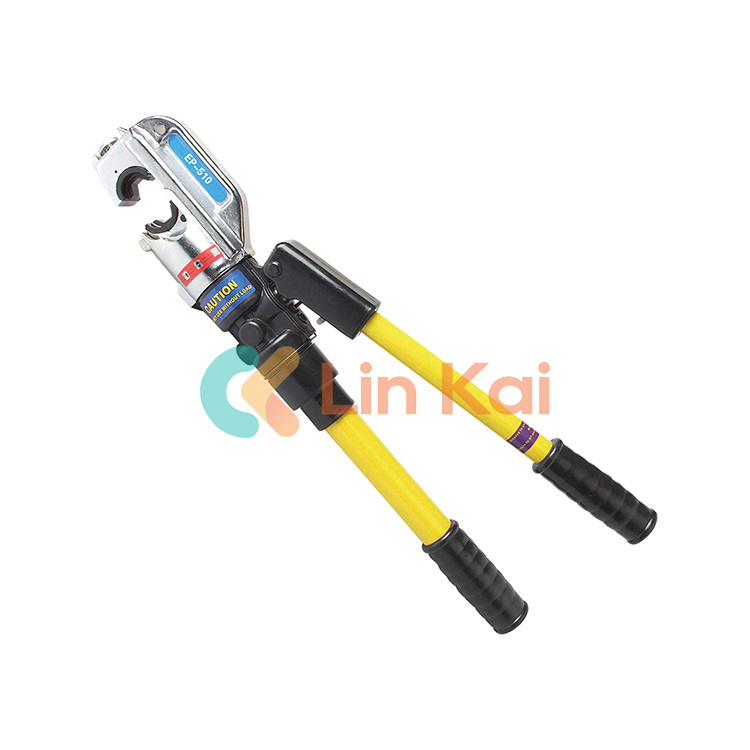

EP-510 |
130KN |
16-400 |
38mm |
50,70,95,120,150,185,240,300,400 |
7.5 kg |
