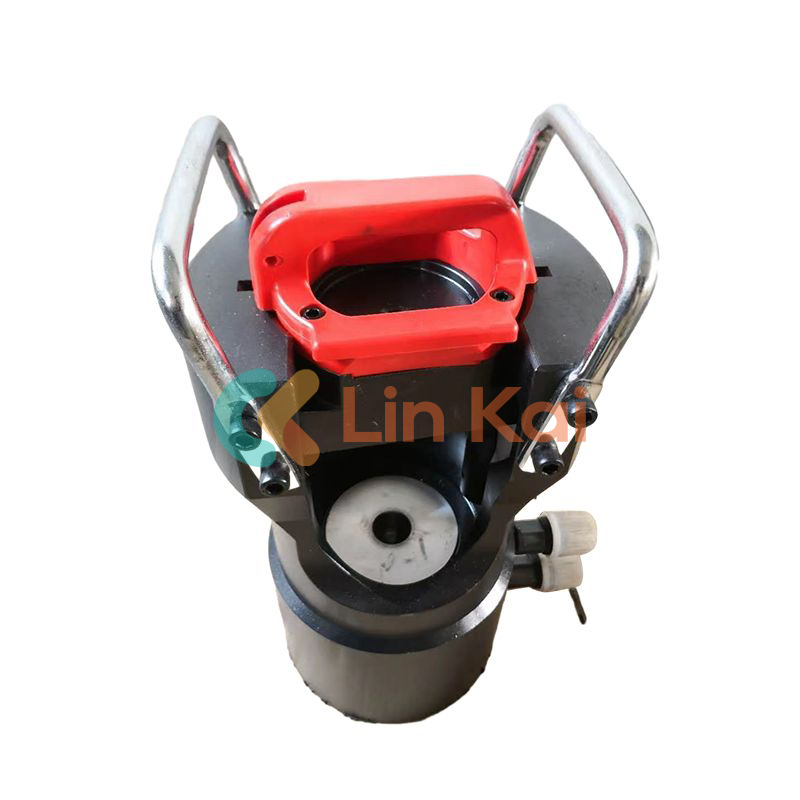

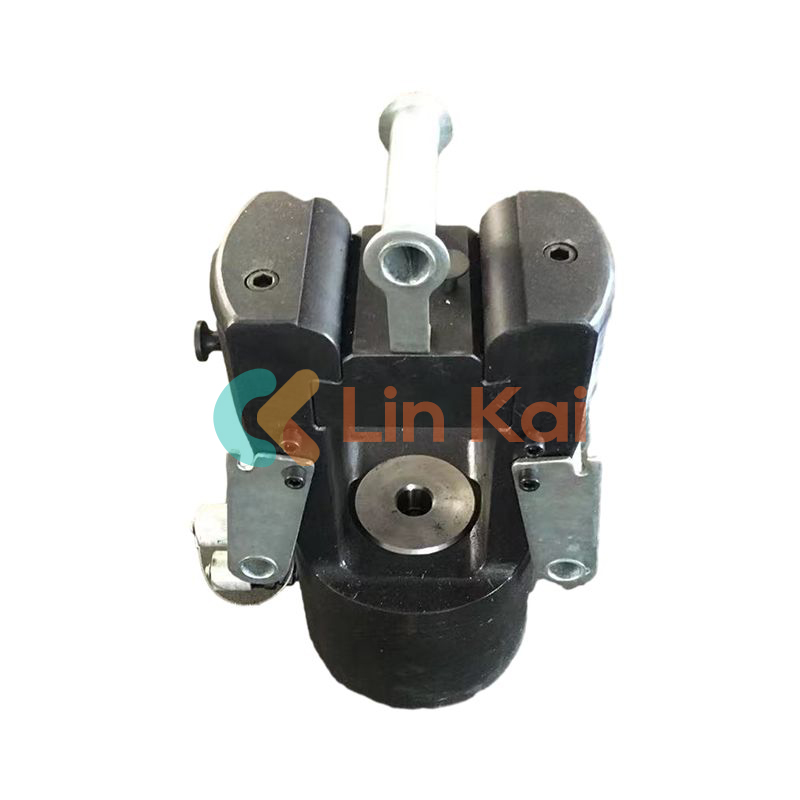

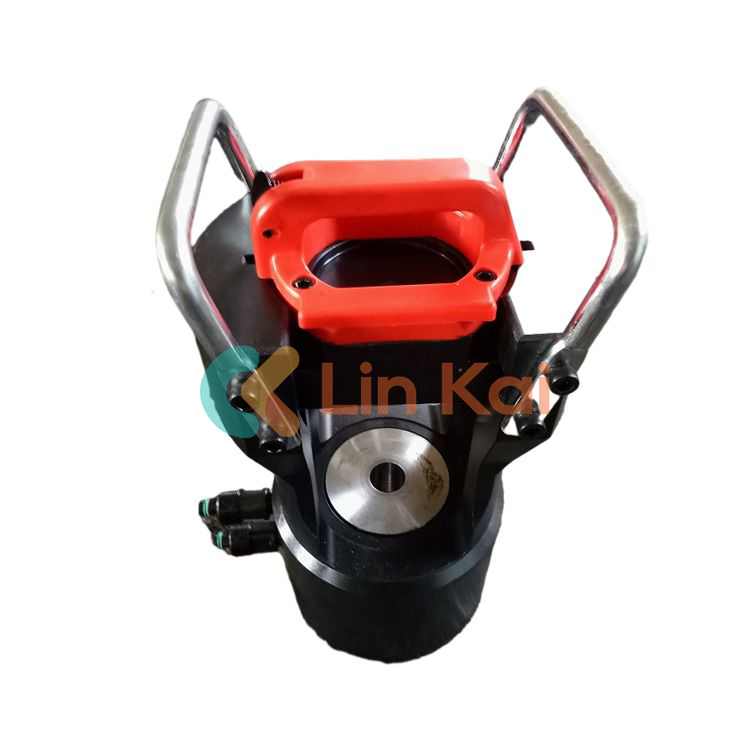

Wholesale high-quality Hydraulic Conductor Press Machine be made by Ningbo Lingkai Manufacture, it is designed for crimping overhead tension sleeve on 110LV or above, also for underground cable crimping. Hydraulic Conductor Press Machine in stock, it has the range from 25T to 300T, and it wide crimping range and less crimping times could reduce crimping distortion and control elongation.
Hydraulic compressor with a hydraulic conductor press machine is used for conductor jointing in transmission line stringing operations. Duel active hydraulic cylinders could prevent spring from elastic fatigue and avoid the trouble of slow reset.
The moveable dies of Hydraulic Conductor Press Machine could assist operator taking out dies after crimping. Rotating die cover could open and close quickly to make operation and position much easier.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|

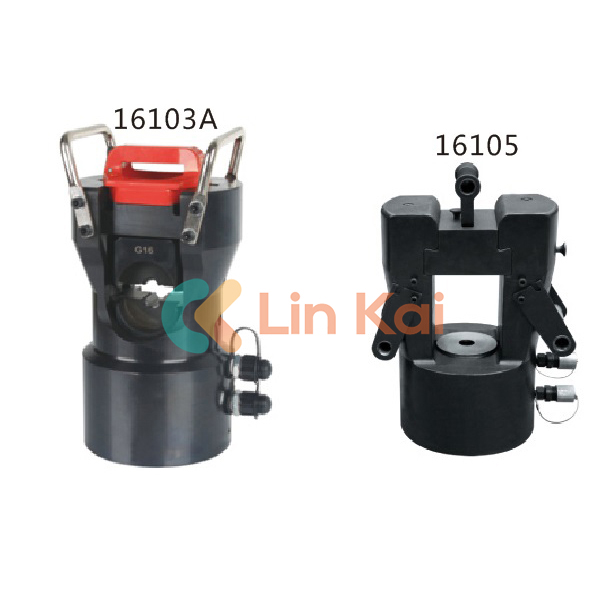

16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |

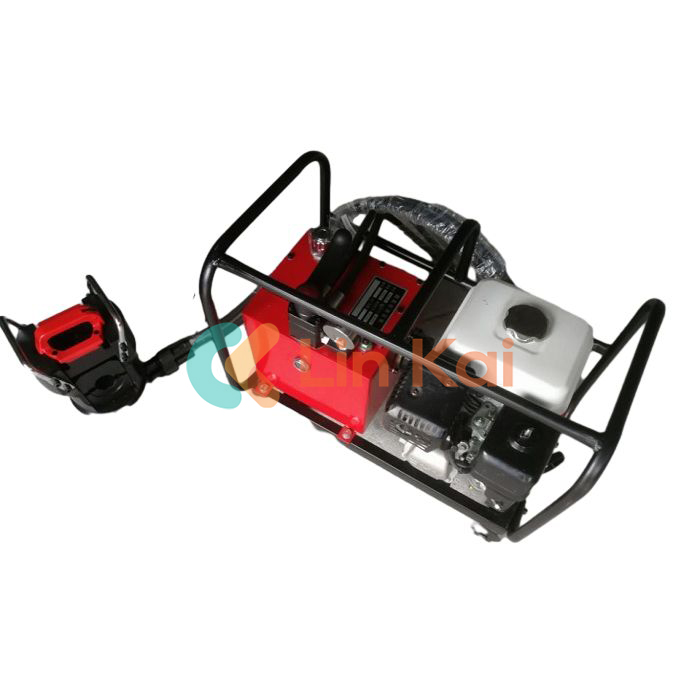

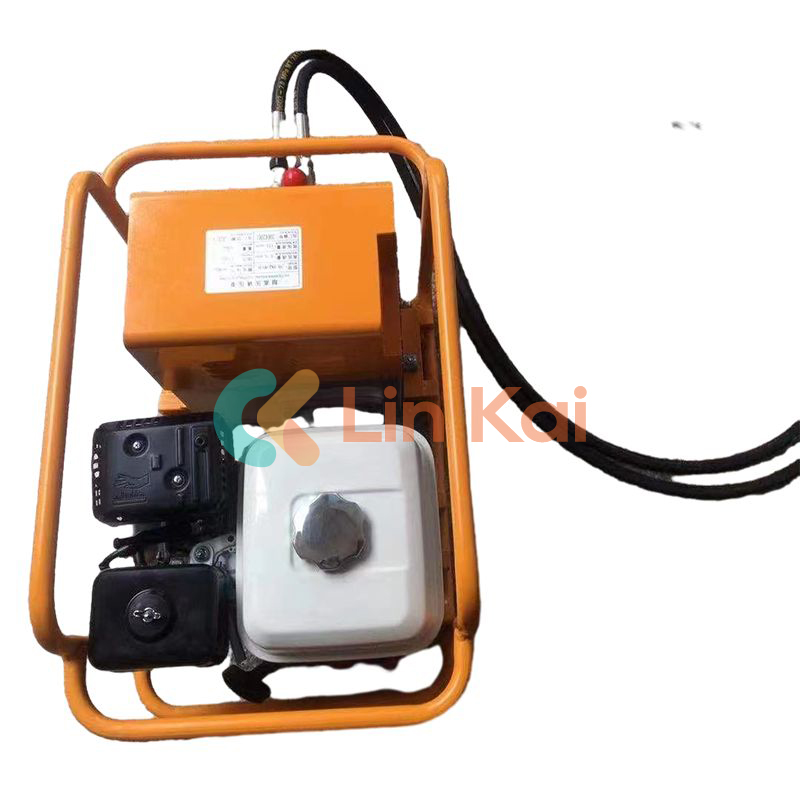

Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
2.05 |
5.0 |
68 |
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mmG -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mmG -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mmG -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mmG -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
