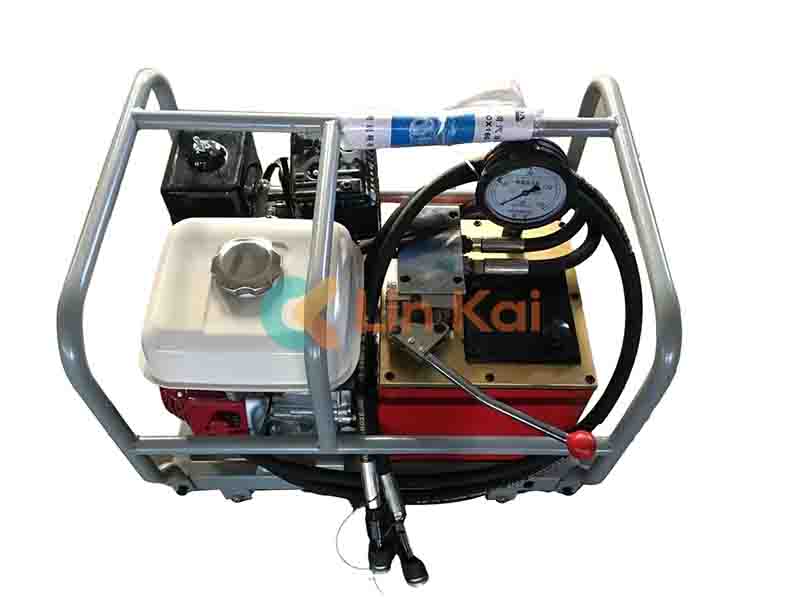

The 80 MPa High-Pressure Motorized Hydraulic Pump Station is a powerful source of energy that provides maximum power to hydraulic compressors or any other related equipment. This pump station is specifically designed to sustain high-pressure, being able to provide pressure of up to 80MPa.

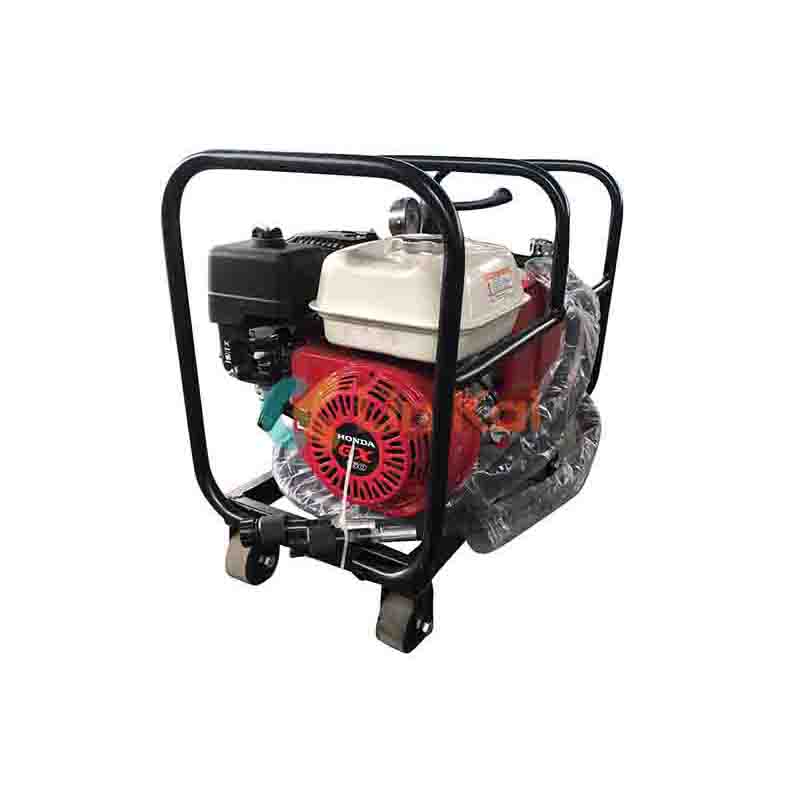

This 80 MPa High-Pressure Motorized Hydraulic Pump Station is equipped with a HONDA GX160 gasoline motor that guarantees the highest performance standards. Thanks to its high quality, this pump station ensures smooth and efficient operation.
The standard length of the hydraulic hose that is provided with this 80 MPa High-Pressure Motorized Hydraulic Pump Station is 3 meters. However, customers have the option to choose a longer hose if necessary. This flexibility allows the use of the pump station in a wide variety of applications and environments.
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Max Pressure (Mpa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
94 |
11.02-2.05 |
5.0 |
55 |
Application: It should be noted that the 80 MPa High-Pressure Motorized Hydraulic Pump Stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine. A normal hydraulic hose is three meters long. Extended Hose is not required.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
