Shop online for 80Mpa High-Pressure Hydraulic Pump from our factory. Our factory is called Ningbo Lingai Machinery Co.,Ltd. that is one of the leading overhead line transmission tools manufacturers and suppliers in China. The advantages of 80Mpa High-Pressure Hydraulic Pump are less weight 10 kg than old type, the speed is about 3 times faster, and the new aluminum alloy oil tank dissipates heat faster.
Introducing our Super High Pressure Hydraulic Pump with Double Stage Pump Output, equipped with the reliable Honda engine for powerful performance in various fields. This 80Mpa High-Pressure Hydraulic Pump is specifically designed to cater to cutting tools, hydraulic compressors, punching machines, and other construction machinery that operate in the field.

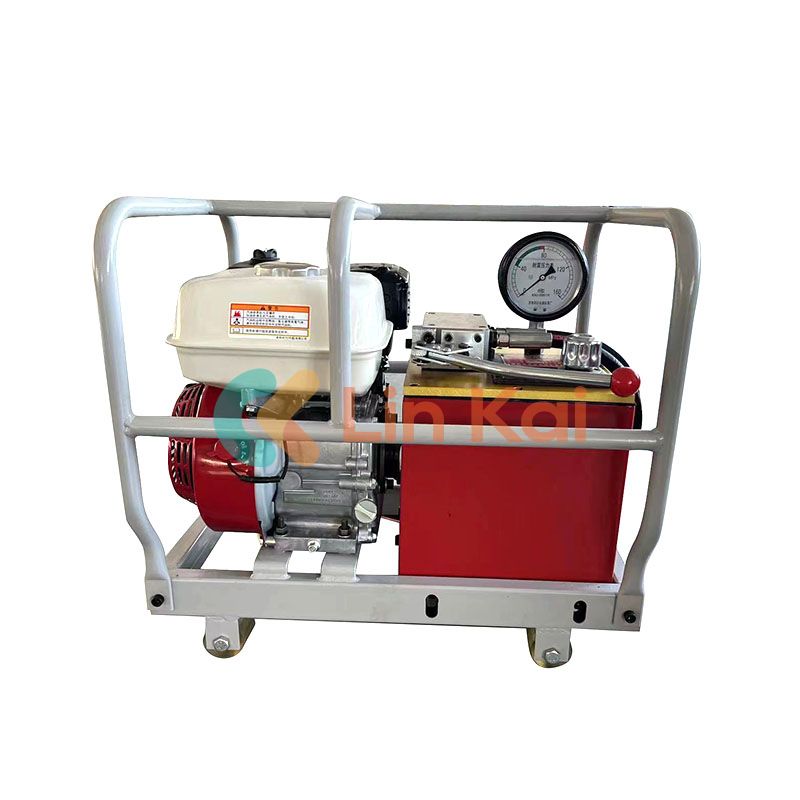

80Mpa High-Pressure Hydraulic Pump applications are in electric power, railways, rescue, construction, and other industries. Our High-Pressure Hydraulic Pump Station is a gasoline motor-driven pump station mounted on a hand cart, providing portability and convenience to the users.
You can operate this80Mpa High-Pressure Hydraulic Pump with ease, being mounted on a hand cart.
For even more convenience, we present the new Gasoline Engine Hydraulic Pump Station, which has a weight of less than 10 kg, and it runs at a speed 3 times faster than the previous one. The aluminum alloy oil tank of this pump station dissipates heat faster than before. You can operate it with minimal effort and get quick results.
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Max Pressure (Mpa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
94 |
11.02-2.05 |
5.0 |
55 |

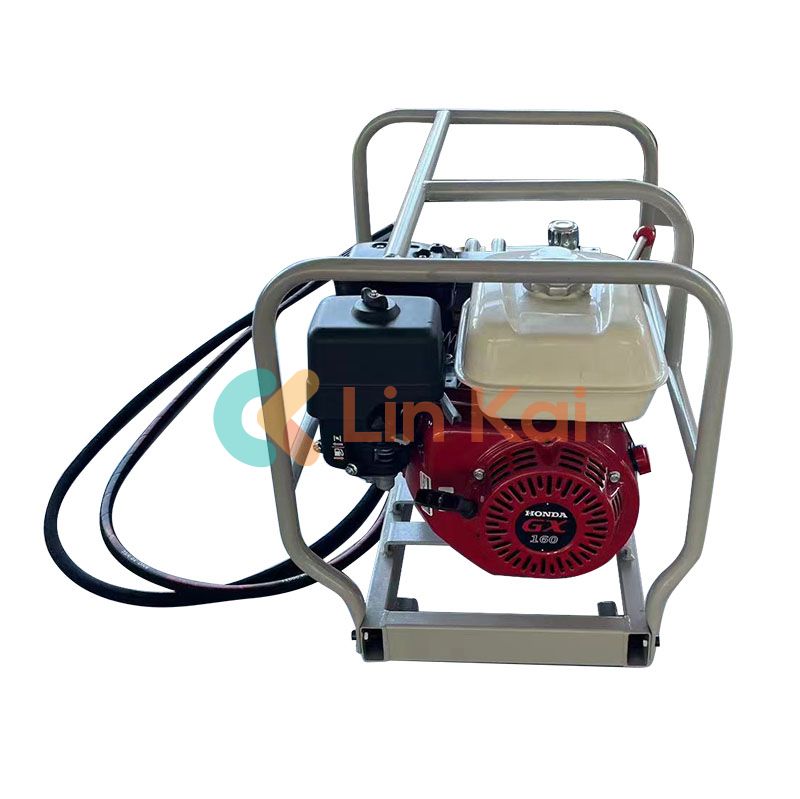

It should be noted that the 80Mpa High-Pressure Hydraulic Pump’ pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.
A normal hydraulic hose is three meters long. Extended Hose is not required.
Cable Hydraulic Press Compressor data sheet
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
