Automatic Hydraulic Conductor Crimping Machine
  • Automatic Hydraulic Conductor Crimping MachineAutomatic Hydraulic Conductor Crimping Machine
  • Automatic Hydraulic Conductor Crimping MachineAutomatic Hydraulic Conductor Crimping Machine
  • Automatic Hydraulic Conductor Crimping MachineAutomatic Hydraulic Conductor Crimping Machine

Automatic Hydraulic Conductor Crimping Machine

When it comes to power transmission and distribution projects, Automatic Hydraulic Conductor Crimping Machine Ningbo Lingkai factory made in China, one of the most critical aspects is the crimping of cables and terminals.Not only to the high quality of the Automatic Hydraulic Conductor Crimping Machine but also to our traditional technical, spirit, and service there. Welcome to inquiry now!

Automatic Hydraulic Conductor Crimping Machine

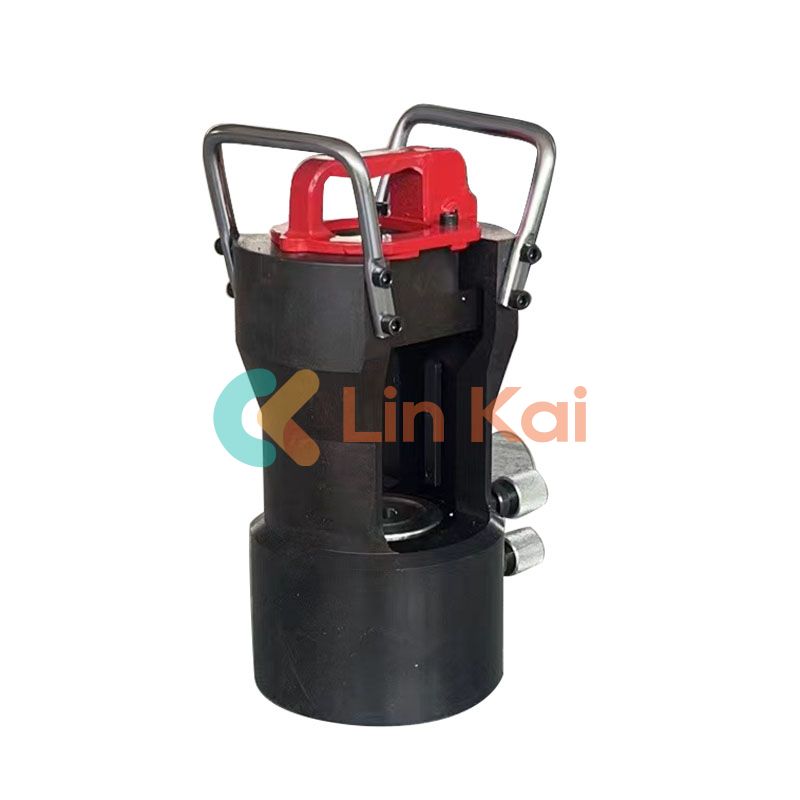

For compressing conductor joints or earth wire joints, a motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head. High-strength steel is used in the Automatic Hydraulic Conductor Crimping Machine's casting.

Sleeves for OPGW and ACSR cables are compressed using hydraulic crimping tools. Durable Automatic Hydraulic Conductor Crimping Machine is employed in the stringing of overhead transmission lines.


High Quality China Automatic Hydraulic Conductor Crimping Machine 1 Years Warranty in Ningbo Lingkai Manufacture, this versatile tool can handle a wide range of tasks related to connecting, gripping, and pressing different types of conductors and sleeves.  Proper crimping ensures a reliable and safe electrical connection that can withstand various environmental and operational conditions.

Designed for Efficiency and Durability:

The Automatic Hydraulic Conductor Crimping Machine Made in China is built with high-quality materials and advanced components that ensure long-lasting performance and minimal maintenance requirements. The hydraulic system provides precise and consistent pressure control, while the rugged steel frame can withstand heavy loads and vibrations. The Automatic Hydraulic Conductor Crimping Machine's compact and ergonomic design allows for easy handling and maneuverability, even in tight spaces or remote areas.

Automatic Hydraulic Conductor Crimping Machine data sheet

Item No.

Model

Max. Compression Force (KN)

Max. Hydraulic Pressure (MPa)

Max. ACSR Size (mm²)

Stroke (mm)

Weight (kg)

16101

QY-25

250

70

240

22

6

16102

QY-45

450

70

240

25

12

16103

QY-65

650

94

500

25

25

16104

QY-125

1250

94

720

25

40

16105

QY-200

2000

94

1440

25

85

16106A

QY-300

3000

94

2500

35

126

Application: For compressing conductor joints or earth wire joints, a motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head. High strength steel is used in its casting.


Wide Range of Applications

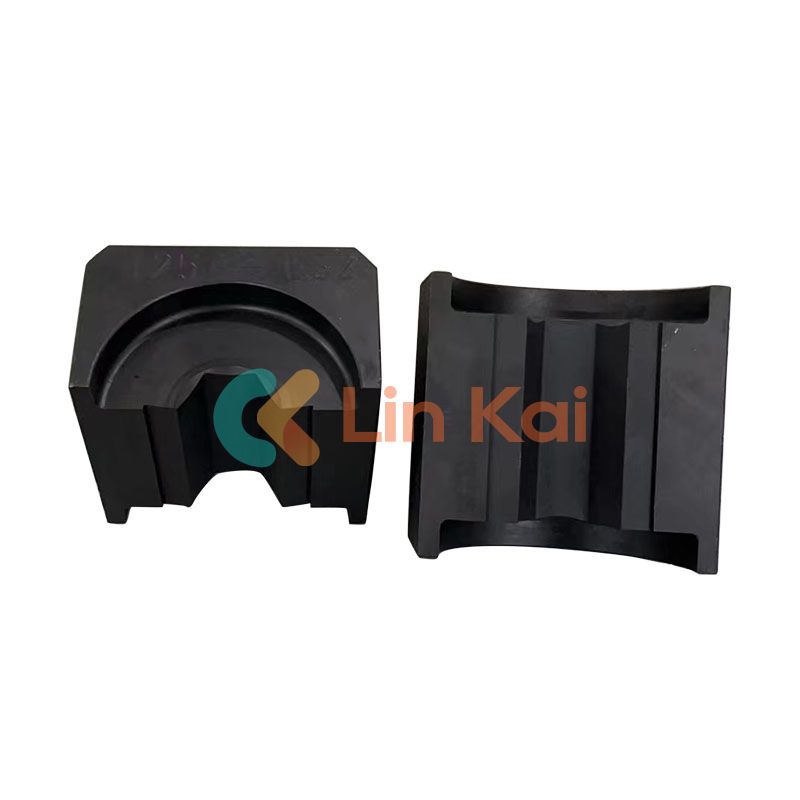

The Automatic Hydraulic Conductor Crimping Machine is suitable for various types of power transmission and distribution projects, both for overhead and underground installations. For instance, this Automatic Hydraulic Conductor Crimping Machine made by the Lingkai factory can be used for crimping hexagon and un-insulated terminals, wire grips, and high-voltage cable sleeves. Its adjustable pressing force and crimping dies enable it to handle different conductor sizes and shapes, providing versatility and flexibility for different applications. The Automatic Hydraulic Conductor Crimping Machine is also compatible with various accessories, such as hydraulic pumps, hoses, and adapters, that can further enhance its functionality and efficiency.

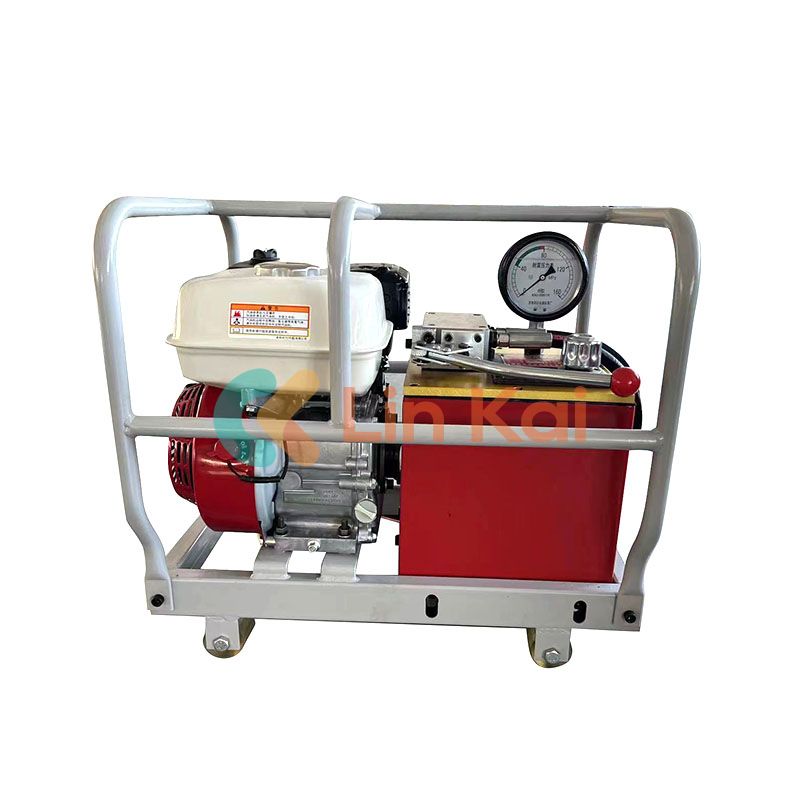

Parameters on High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.

Description

Hydraulic Pressure (MPa)

Oil Flow (L/min)

Power (HP)

Weight (kg)

16146

Gasoline motor driven hydraulic pump station mounted on hand cart

80

11.02-2.05

5.0

55


It should be remembered that Automatic Hydraulic Conductor Crimping Machine’s pump stations only provide electricity to other devices or hydraulic compressors.  The Honda GX160 is the gasoline engine.

A standard hydraulic hose is three meters long. Extended hose is not necessary.
