For those in need of a comprehensive solution, a Cable Hydraulic Press Compressor 1 Years Warranty completes with motorized Super High-Pressure Double Speed Hydraulic Pump Station is the perfect choice. This machine is specifically designed for working with ACSR conductor jointing on overhead transmission line stringing projects.

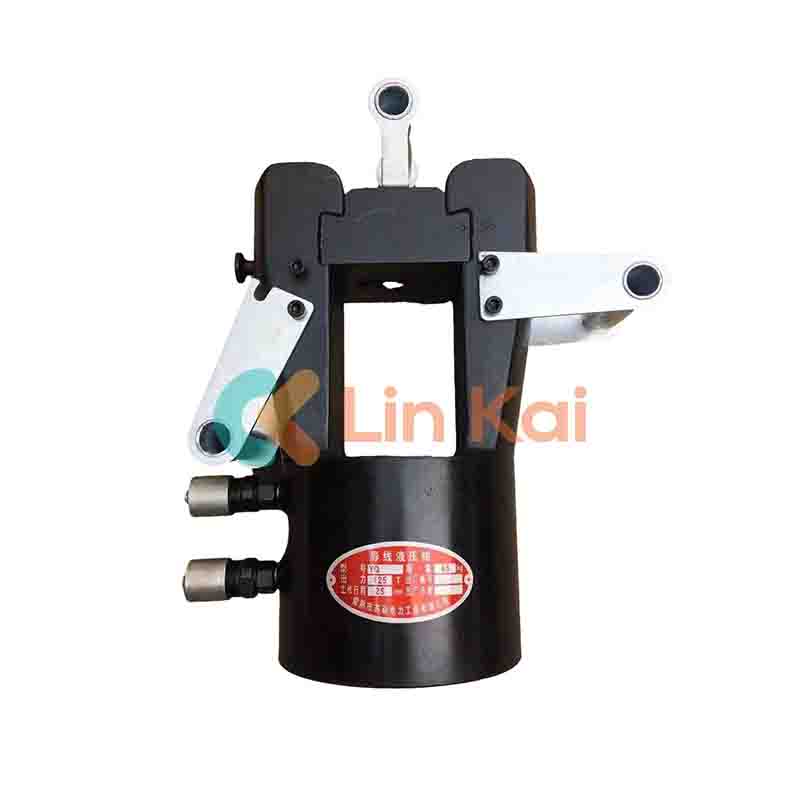

The reliability of a motorized Gasoline Engine Hydraulic Pump Station and Durable Cable Hydraulic Press Compressor head combination is second to none. This is largely due to the fact that these components are made from high strength steel, which ensures they can handle virtually any compression job.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|

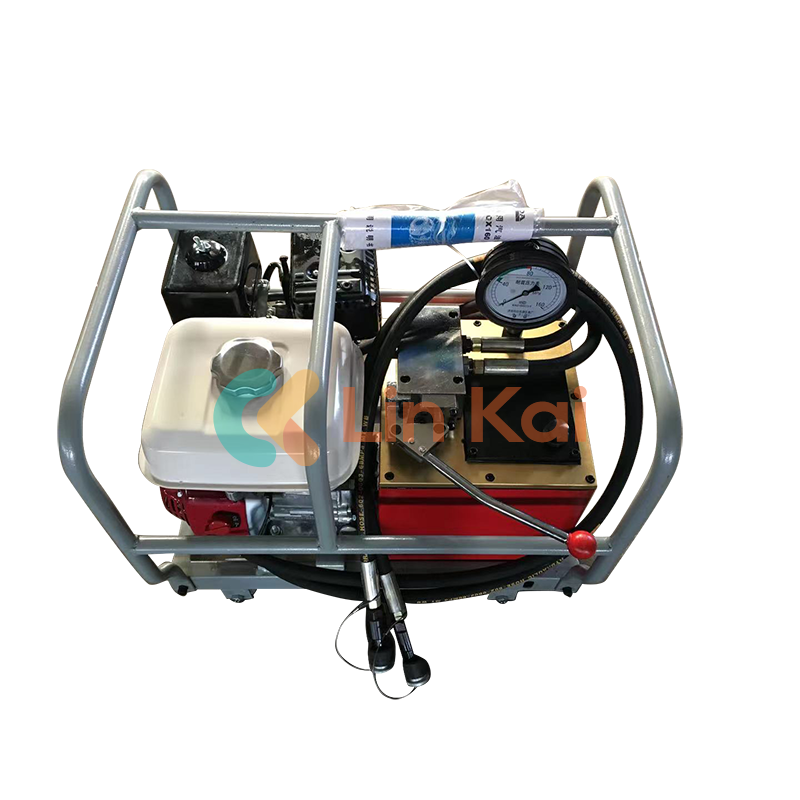

16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
11.02-2.05 |
5.0 |
55 |
Note that the pump stations of the Cable Hydraulic Press Compressor do nothing more than provide energy to other appliances or hydraulic compressors. The gasoline engine is a Honda GX160.
The typical length of a hydraulic hose is three meters. It is not necessary to use an extended hose.
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
Cable Hydraulic Press Compressor has been designed to cater to a specific need. These tools are specifically designed to crimp overhead tension sleeves on cables that have a voltage of 110KV or above. The use of these tools ensures that the crimping is done with precision and the resulting connection is firm and secure.
The Cable Hydraulic Press Compressor is also suitable for underground cable connecting. This means that the tools can be used for both above-ground and underground cable installation purposes, making them versatile and useful in a variety of situations.
1. Expert technical support
2. Product repair and maintenance
3. Product training and education
4. Warranty and service agreements
Our team of experienced technicians is dedicated to providing excellent customer service and ensuring that your Cable Hydraulic Press Compressor operates at peak performance. Don't hesitate to contact us for any assistance you may need.
1. Hydraulic Crimping Tool
2. Instruction manual
3. Product will be securely packaged to prevent damage during transit
4. Shipping time will vary depending on destination
5. Tracking information will be provided once the product has shipped
Q: What is the brand name of this Acsr Conductor Jointing Compressor Machine ?
A: The brand name of this Cable Hydraulic Press Compressor is Lingkai.
Q: What are the different models available for this Cable Hydraulic Press Compressor?
A: The different models available for this hydraulic crimping tool are QY25, QY45, QY65, QY125, QY200, and QY300.
Q: Where is this Hydraulic Compressor and Crimping Tool manufactured?
A: This hydraulic crimping tool is manufactured in China.
Q: What are the applications of this hydraulic crimping tool?
A: This Cable Hydraulic Press Compressor is used for crimping copper and aluminum lugs and connectors in power distribution systems, construction sites, and industrial applications.
Q: What is the warranty period for this hydraulic crimping tool?
A: One year
