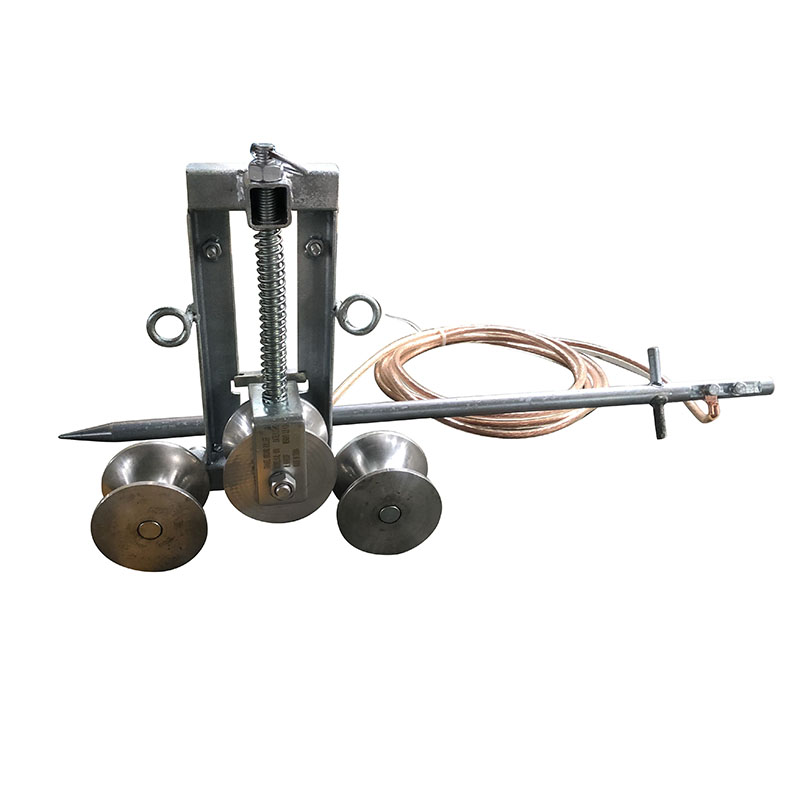

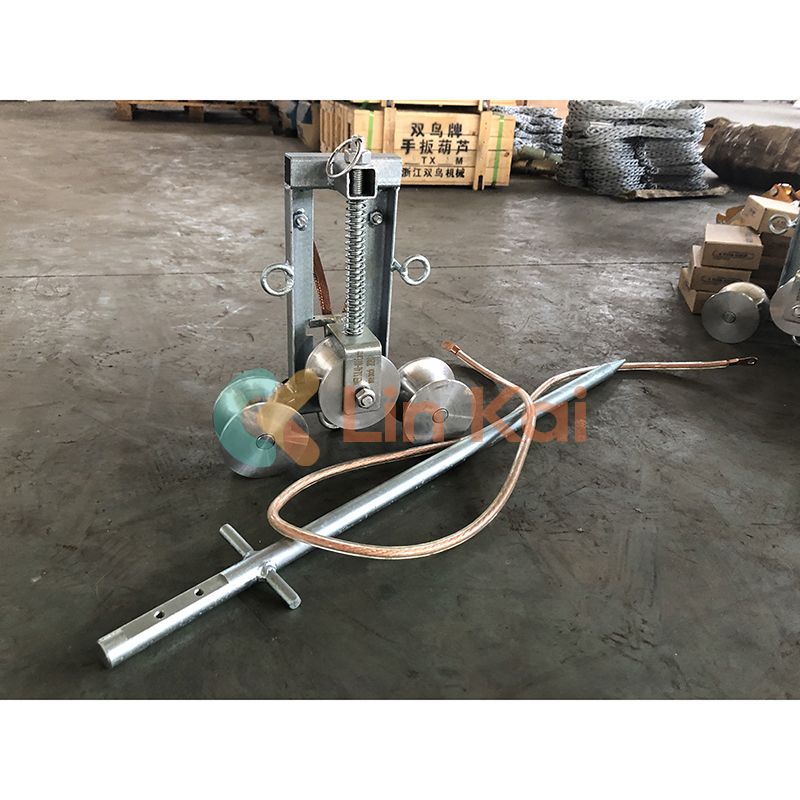

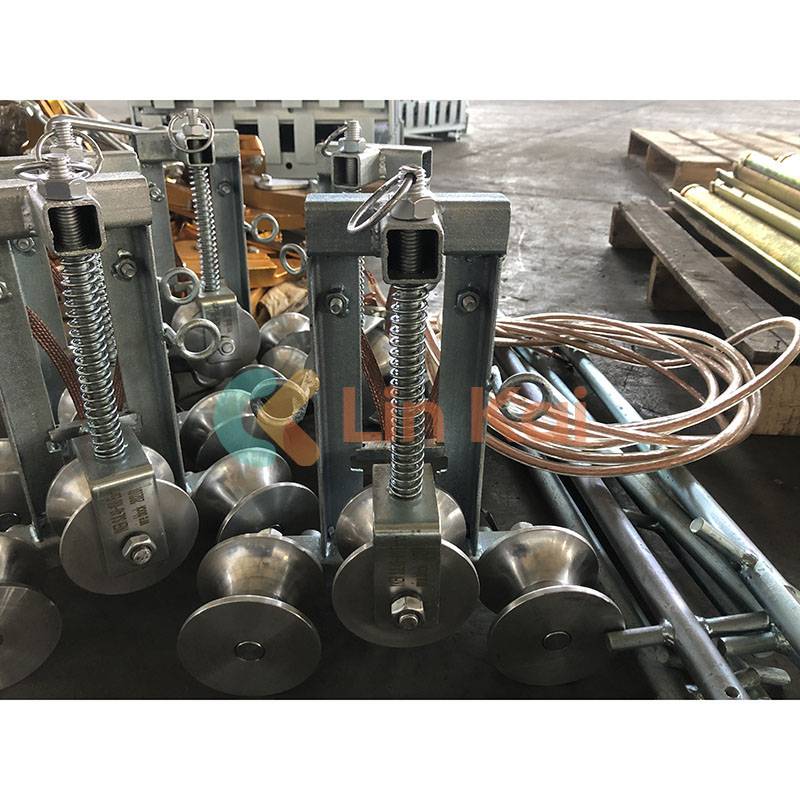

Ningbo Lingkai's high-quality conductor earth grounding blocks are used to eliminate induced static electricity in conductor or grounding wire spread when tensioning erect wires. And the grounding wire pile provide additionally.

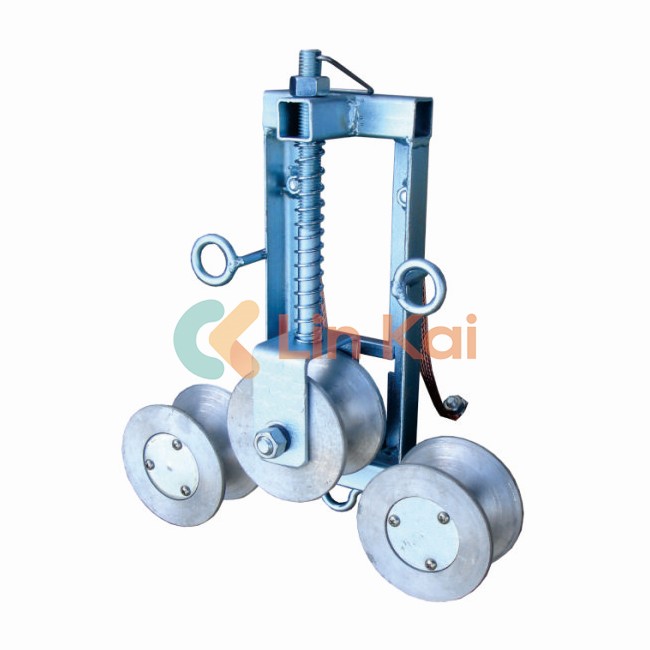

Durable Conductor earth grounding blocks can reduce induced voltage in the conductor and grounding wire when the wires are released. They are attached to the outlet side of tensioners or the inlet side of pullers and pulled by two stay wires. The triple sheave system is automatically compressed. The maximum permitted current is 100A, and the time electrified is 0.1 seconds. We propose that the mating conductor have a section of 25 square mm.
|
Item number |
Model |
Bottom Diameter （mm） |
Applicable Wire |
Max Current （A） |
Sheave Material |
Weight (kg) |
|
12101 |
SJL38-100 |
Φ46 |
Φ38 Conductor |
100 |
Casting steel |
8.9 |
|
12101A |
SJL48-100 |
Φ56 |
Φ48 Conductor |
100 |
Casting steel |
10.0 |
|
12102 |
SJT38-100 |
Φ46 |
Φ38 Steel wire rope Grounding Wire |
100 |
Casting steel |
11.0 |

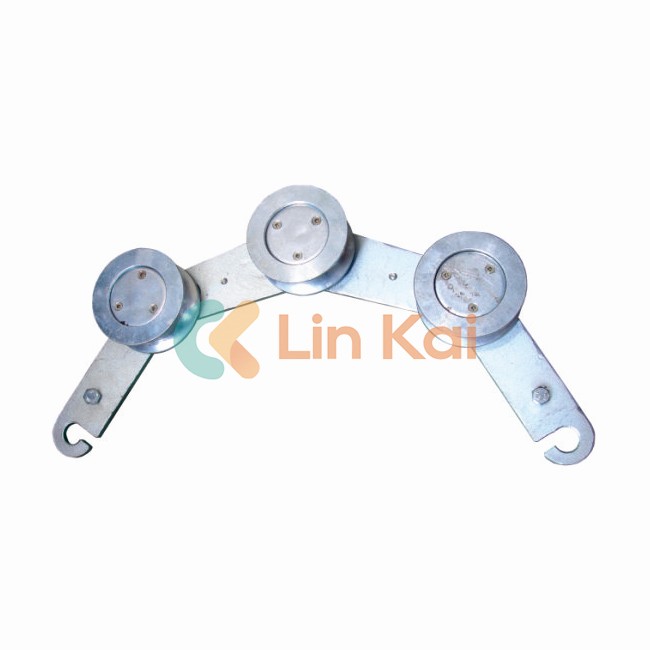

Hook type conductor or Conductor earth grounding blocks Made in China are used to eliminating the faradism in conductor and grounding wire.
|
Item number |
Model |
Bottom Diameter (mm) |
Applicable Conductor |
Sheave Material |
Weight （kg） |
|
12111 |
SHL40-75D |
Φ75 |
Φ6-Φ40 Conductor |
Aluminum Alloy |
4.5 |
|
12111A |
SHL48-75DA |
Φ6-Φ48 Conductor |
5.0 |
||
|
12112 |
SHG32-60D |
Φ60 |
Φ6-Φ32 Steel Wire Rope And Steel strand |
steel |
5.0 |
|
12112A |
SHG38-60DA |
Φ6-Φ38 Steel Wire Rope And Steel strand |
5.5 |
