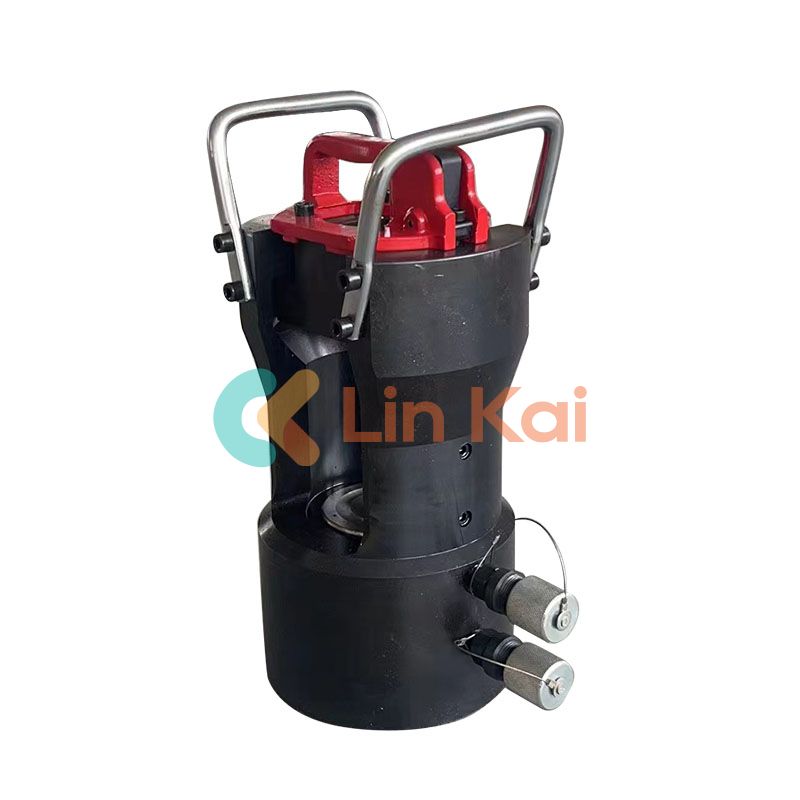

Conductor Jointing Machine Motorized made in China Ningbo Lingkai Manufacture is designed for crimping overhead tension sleeve on 110 KV or above, also for underground cable connecting.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
The Conductor Jointing Machine Motorized is specifically intended for both indoor and outdoor power transmission and distribution projects, as well as various types of connecting terminals, overhead and underground cabling.

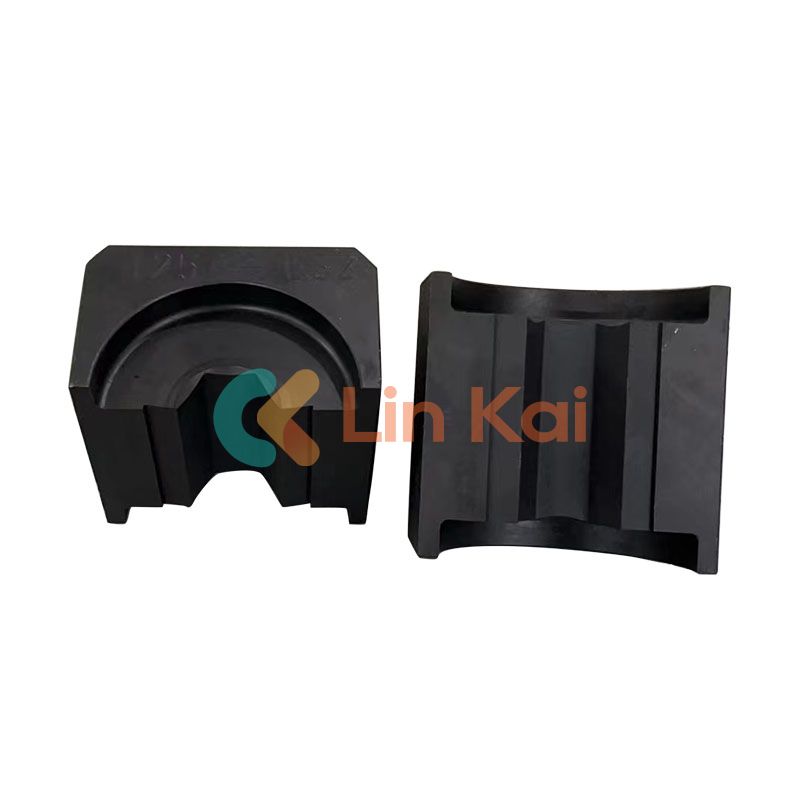

The durable Conductor Jointing Machine Motorized can crimp the high voltage cable sleeves, wire grips, insulated terminals, and hexagonal terminals. Conductor Jointing Machine Motorized crimped component is tight and difficult to break out in good conductivity. Die can be purchased and is available in any size. The oil pipe coupler is fitted with a PT 3/8" thread. To be operated with a pedal pump, a manual pump, and an electric pump.
