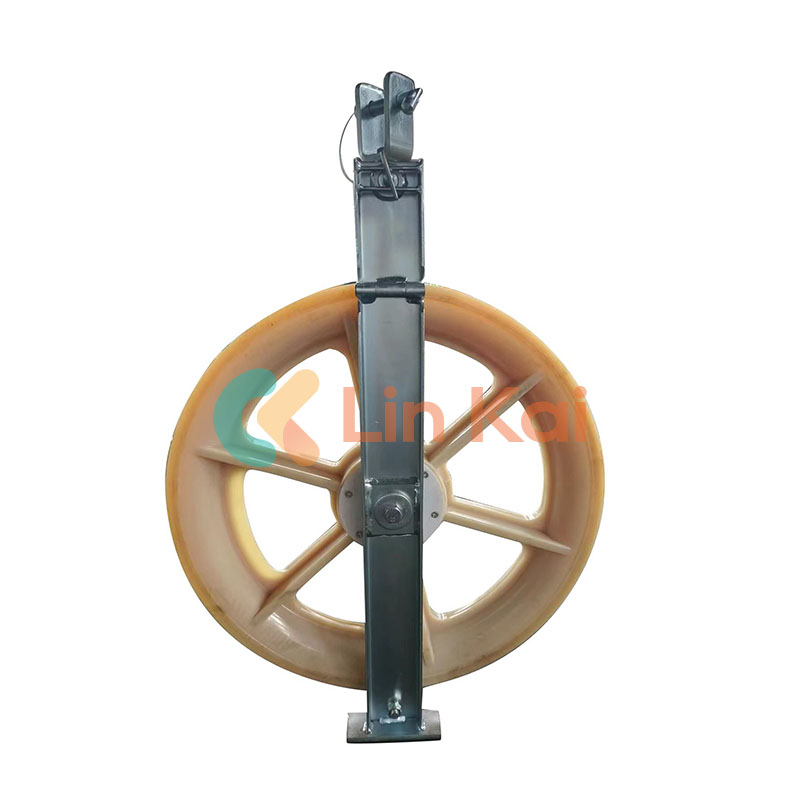

One-year guarantee on the conductor pulley block Despite having a lifespan of more than two years, it helps to increase the strength and durability of our conductor pulley block for transmission line operations. Ningbo Lingkai is always searching for the best raw materials; MC raw materials, steel frames, and bearing balls are particularly crucial. In the meanwhile, we worked on the excellence process.
Since 822mm is much more costly and 750mm is larger than 660mm wheels, we designed the conductor pulley block 750mm in the head of China to suit the needs of some overhead clients who need to string ACSR 630. Additionally, we offer 660 x 110mm, which is the second choice for clients to ACSR 650.
Customized conductor pulley block, has the pivoting Array Blocks Standard & for Helicopter Stringing single and for Bundled Conductors, also earthing Devices for aluminium, Nylon Stringing Blocks & Pivoting Array Blocks.
|
Item Number |
Model |
Number of Sheave |
Rated Load (kN) |
Weight (kg) |
Features |
|
0018 |
SHD750 |
1 |
20 |
35 |
MC nylon |
|
0019 |
SHSQN750 |
3 |
40 |
95 |
MC nylon |
|
0020 |
SHWQN750 |
5 |
60 |
145 |
