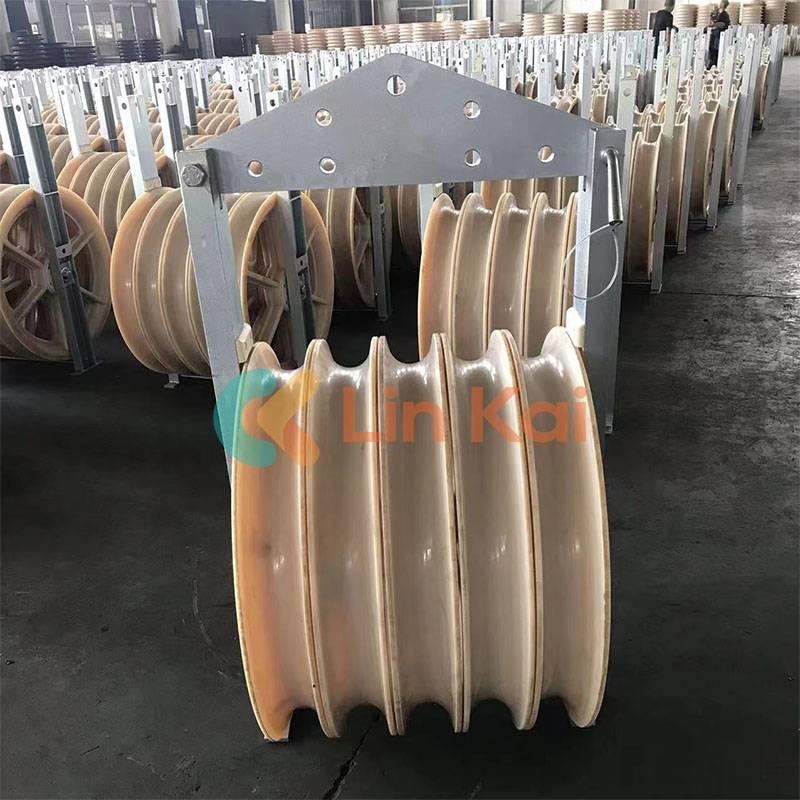

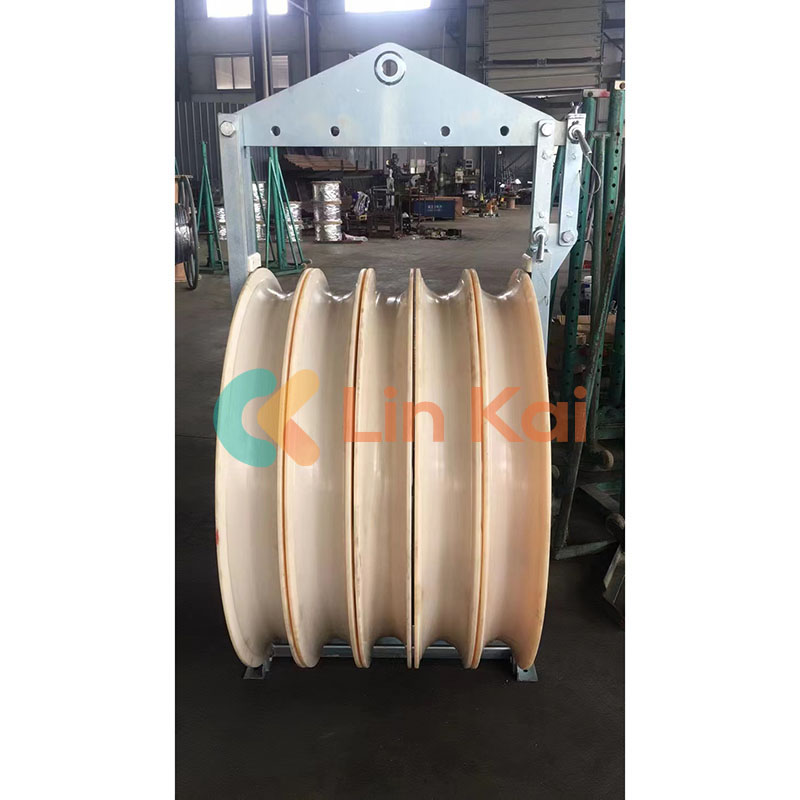

Durable Conductor Stringing Blocks: these 822mm big diameter stringing blocks come with a choice of intermediate wheels made of cast steel or MC nylon, according on the needs of the customer; You can choose an MC nylon wheel, rubber pressing aluminum wheel, or rubber pressing MC nylon wheel as your conductor.
The benefit of our Lingkai Plant is that we can customize the hanging head board of conductor stringing blocks 1 Years Warranty to your specifications. You may email us the head designs, and our tech staff will construct it according to your site's requirements. You can also choose from standard, swivel, U-shackle, or open side heads.
Conductor Stringing Blocks are specialized tools used in overhead transmission line stringing construction to support different conductors and ground wires. Ground wires are supported by these tools. Both its friction coefficient and its lack of damage to wires are low. It can easily flow via connections, pressure nozzles, and traction plates.
Below is the data sheet for the 822mm Conductor Stringing Blocks.
|
Item Number |
Model |
Number of Sheave |
Rated Load (kN) |
Weight (kg) |
Features |
|
0018 |
SHD750 |
1 |
20 |
35 |
MC nylon |
|
0019 |
SHSQN750 |
3 |
40 |
95 |
MC nylon |
|
0020 |
SHWQN750 |
5 |
60 |
145 |
