Earth Wire Self Gripping Clamps

Specialized clamping tools known as Ningbo Lingkai wholesale earth wire self gripping clamps are made to offer a safe mechanical mechanism for guy wire and earth wire adjustment and tensioning. Chinese-made earth wire self-grabbing clamps are frequently used to ground commercial and industrial electric installations as well as distribution towers and transmission overhead lines.

Earth Wire Self Gripping Clamps

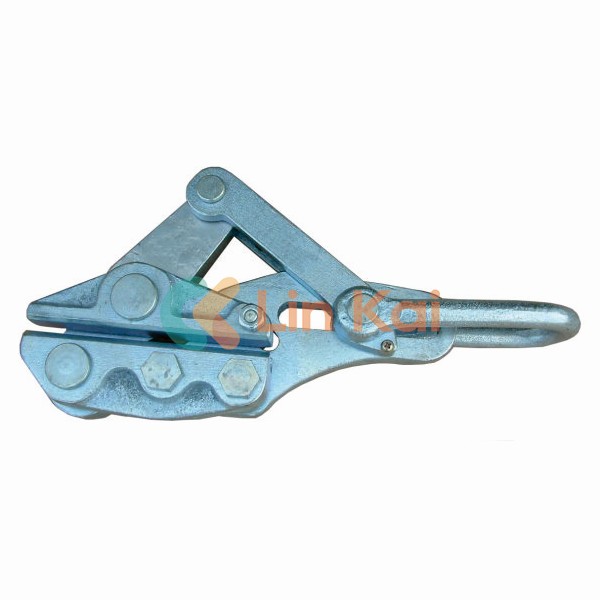

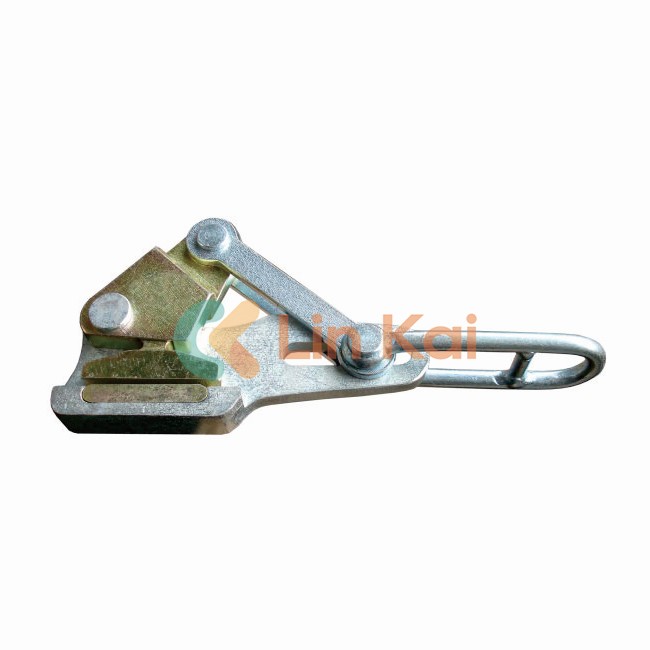

Ningbo Lingkai's model SKDZ Earth Wire Self Gripping Clamps is used for the sagging of earth wires and the adjustment of guy wires. Lingkai at a cheap price Earth Wire Self Gripping Clamps in bulk manufacturing are suitable for the steel strand adjustment of the guyed tower and the ground wire tightening. They are forged from high-quality alloy steel. The jaws are specially designed to hold the ground wire.



SKDZ Model Earth Wire Grips (Automatic come along clamps for ground wires)


Item No.

Model

Rated Load (KN)

Breaking Load (KN)

Wire Size Range (mm²)

Max. Opening (mm)

Weight (kg)

13101

SKDZ-0.5

5

15

10-25

10

2

13102

SKDZ-1

10

30

25-50

12

2

13103

SKDZ-2

20

60

50-70

14

2.9

13104

SKDZ-3

30

90

70-120

16

3.5

13105

SKDZ-5

50

150

150-185

20

6.3

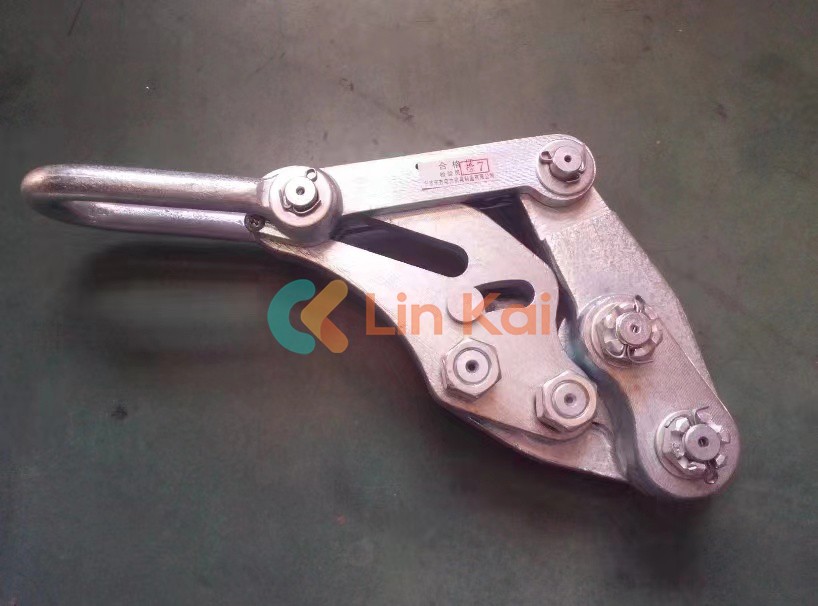

Beside of the Earth Wire Self Gripping Clamps, we also manufacture the dual cam earth wire gripper. The gripping pressure of two knurled cams is applied to stranded steel wires. It is used for tensioning of earth wires and adjustment of guy wires. Each model is only suitable for one model of ground wire.

SKDS Dual Cam Type Earth Wire Grips

Item No.

Model

Rated Load (KN)

Breaking Load (KN)

Wire Size Range (mm²)

Max. Opening (mm)

Weight (kg)

13141

SKDS-1

10

20

25-50

11

2.6

13142

SKDS-2

20

40

70-120

13

3.1

13143

SKDS-3

30

60

95-150

15

4.1

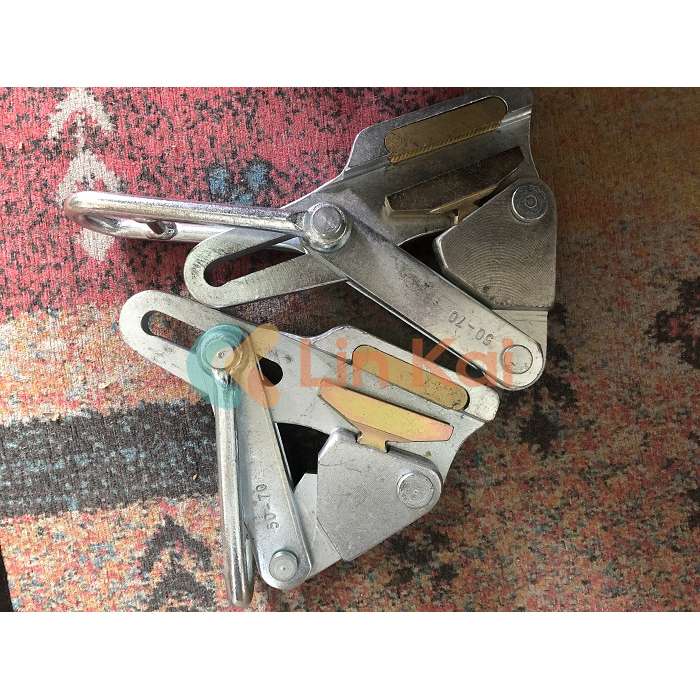

SKD type Ground Wire Grips (Automatic come along clamps for ground wires)


Item No.

Model

Rated Load (KN)

Breaking Load (KN)

Wire Size Range (mm²)

Max. Opening (mm)

Weight (kg)

13113

SKD25

10

30

25

9.5

2.5

13114

SKD35

10

30

35

9.5

2.5

13115

SKD50

15

45

50

10

3.5

13116

SKD70

20

60

70

12.5

5.0

13117

SKD100

30

90

100

14

6.0

Hot Tags: Earth Wire Self Gripping Clamps, China Earth Wire Self Gripping Clamps, manufacturers, suppliers, Factory
