Overhead transmission line GSW cable installation and stringing are accomplished by means of ground wire grips manufactured in China by Ningbo Lingkai Manufacture. Since the GSW cable is composed of hard wire, the ground wire grips' jaws should be built of a particular alloy steel with the goal of providing the strongest possible hold for the GSW cable. Maximum weight capacity for this SKDZ Model Earth Wire Grips is 50KN. Additionally, it is lightweight and appropriate for ground wire tightening and the steel strand adjustment of guyed towers.

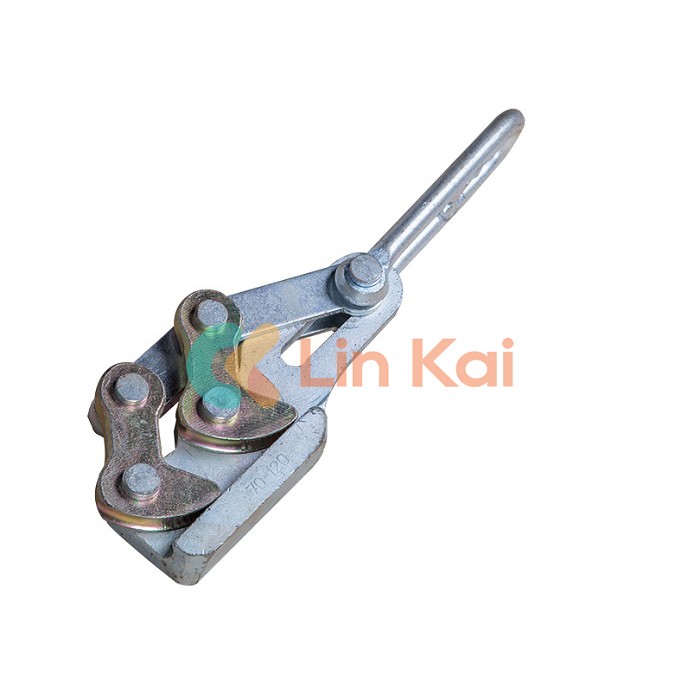

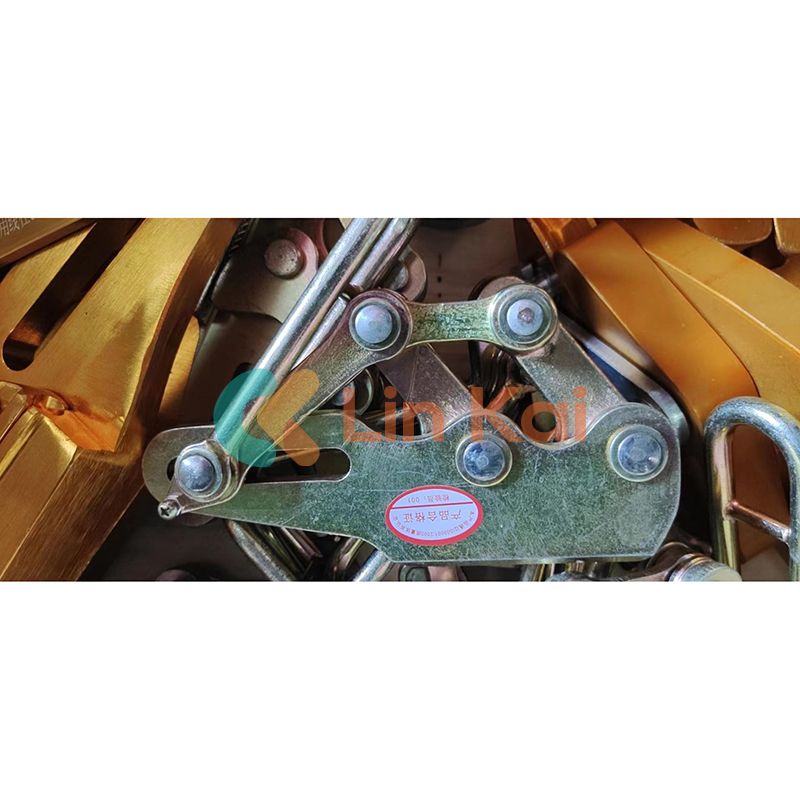

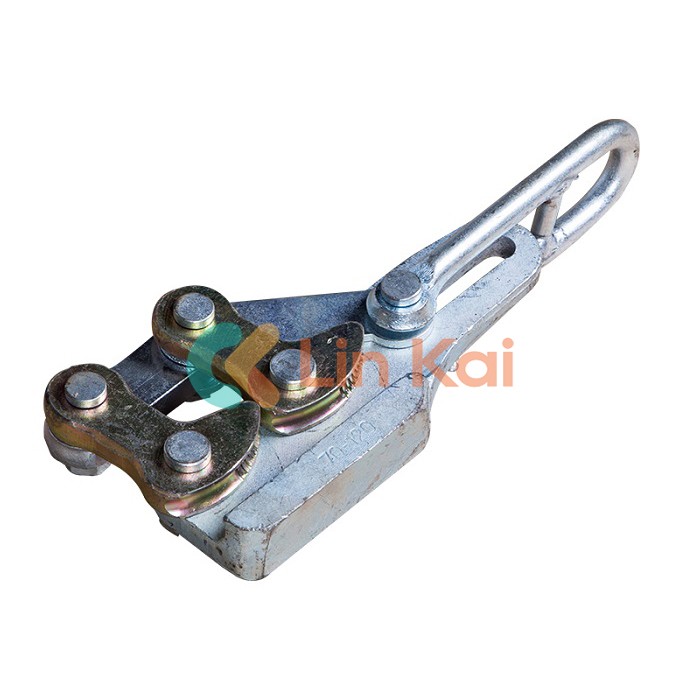

SKDZ Model Earth Wire Grips (Automatic come along clamps for ground wires)
|
Item No. |
Model |
Rated Load (KN) |
Breaking Load (KN) |
Wire Size Range (mm²) |
Max. Opening (mm) |
Weight (kg) |
|
13101 |
SKDZ-0.5 |
5 |
15 |
10-25 |
10 |
2 |
|
13102 |
SKDZ-1 |
10 |
30 |
25-50 |
12 |
2 |
|
13103 |
SKDZ-2 |
20 |
60 |
50-70 |
14 |
2.9 |
|
13104 |
SKDZ-3 |
30 |
90 |
70-120 |
16 |
3.5 |
|
13105 |
SKDZ-5 |
50 |
150 |
150-185 |
20 |
6.3 |
Application: It is used for sagging of earth wires and adjustment of guy wires.Material: It is forged from quality
SKD type Ground Wire Grips (Automatic come along clamps for ground wires)
|
Item No. |
Model |
Rated Load (KN) |
Breaking Load (KN) |
Wire Size Range (mm²) |
Max. Opening (mm) |
Weight (kg) |
|
13113 |
SKD25 |
10 |
30 |
25 |
9.5 |
2.5 |
|
13114 |
SKD35 |
10 |
30 |
35 |
9.5 |
2.5 |
|
13115 |
SKD50 |
15 |
45 |
50 |
10 |
3.5 |
|
13116 |
SKD70 |
20 |
60 |
70 |
12.5 |
5.0 |
|
13117 |
SKD100 |
30 |
90 |
100 |
14 |
6.0 |
Ground Wire Grips is used for sagging of earth wires and adjustment of guy wires. Each model is only suitable for one model of ground wire. We apply the material forged from quality alloy steel, and the jaws are specially designed for holding the ground wires.
|
Item No. |
Model |
Rated Load (KN) |
Breaking Load (KN) |
Wire Size Range (mm²) |
Max. Opening (mm) |
Weight (kg) |
|
13141 |
SKDS-1 |
10 |
20 |
25-50 |
11 |
2.6 |
|
13142 |
SKDS-2 |
20 |
40 |
70-120 |
13 |
3.1 |
|
13143 |
SKDS-3 |
30 |
60 |
95-150 |
15 |
4.1 |
Application: It is used for tensioning of earth wires and adjustment of guy wires. The gripping pressure of two knurled cams is applied to stranded steel wires.
