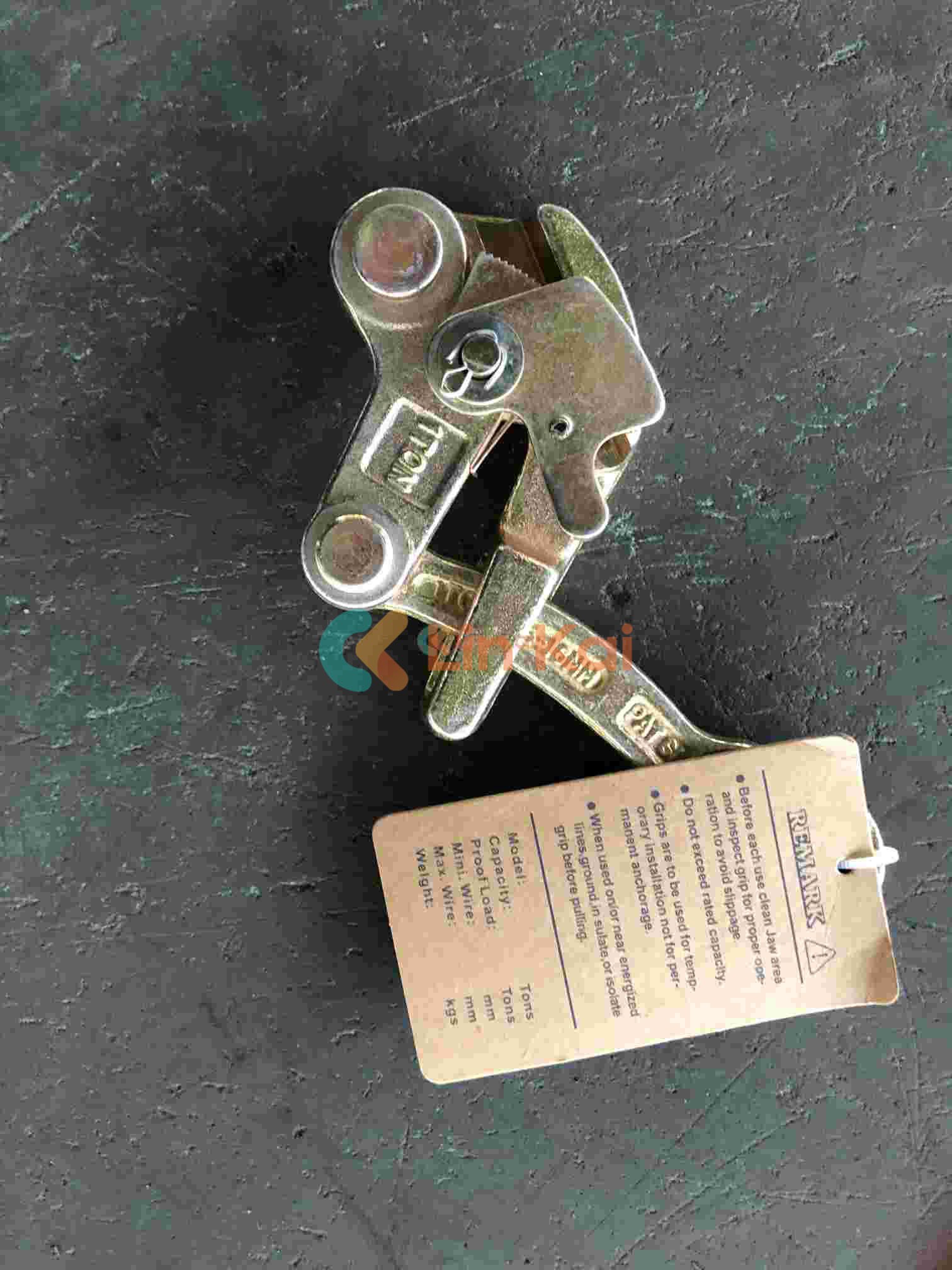

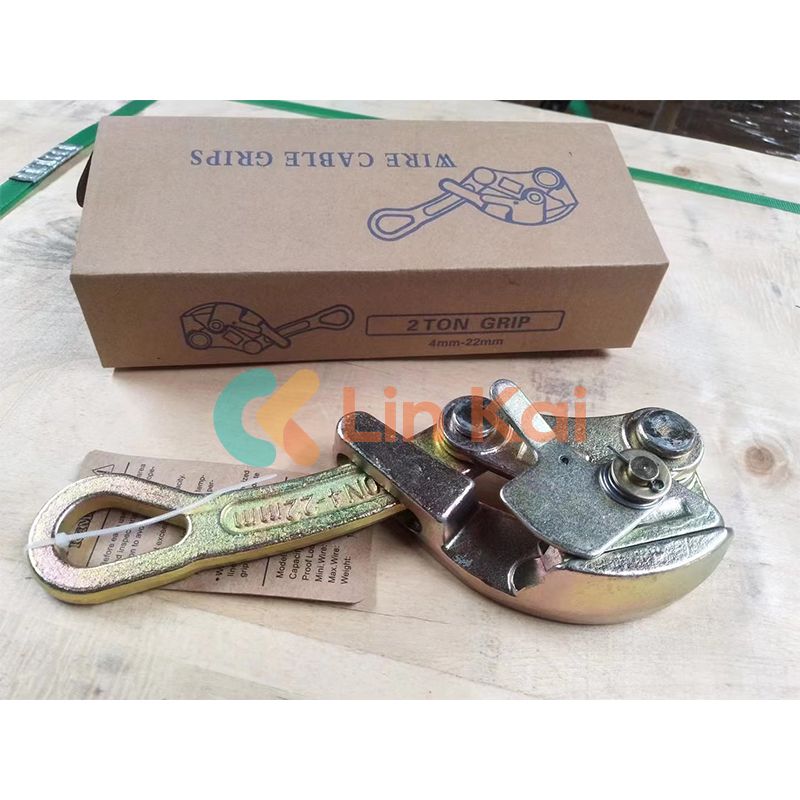

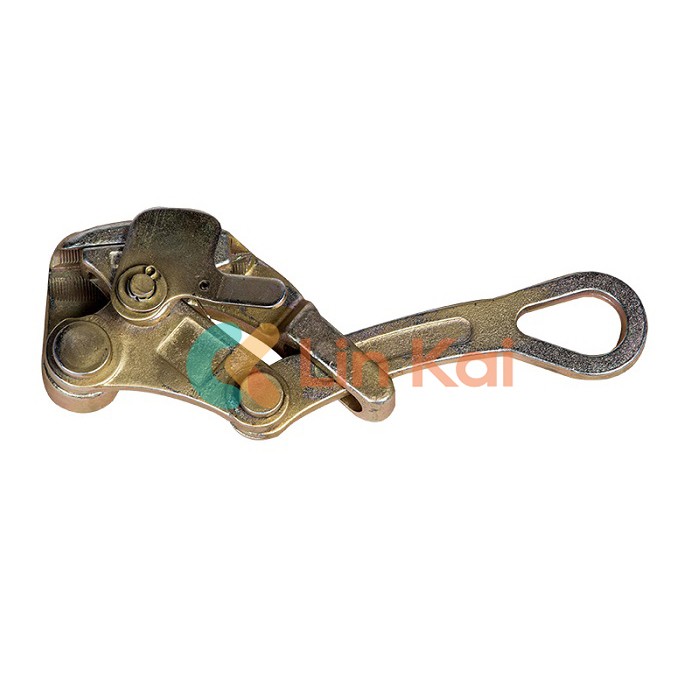

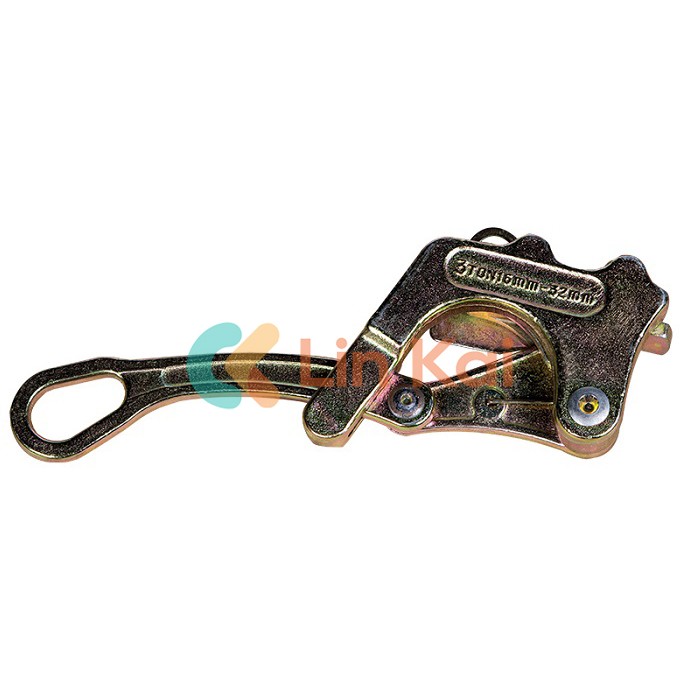

OEM steel wire grippers are made at the Lingkai plant in Ningbo. You are welcome to contact us for information on bulk purchases and the lowest MOQ price. We provide over fifty series of long clamps for the GSW CABLE, OPGW, ADSS, and ACSR, among others. Come-along clamp models differ in the characteristics of the clamping wire, thus each model is constructed from a different raw material. The high-strength alloy steel used in Steel Wire Grippers will grip the GSW cable firmly; the aluminum alloy will apply to the OPGW smoothly; and the aluminum magnesium alloy will be used for the ACSR ADSS conductor.
|
Item number |
Model |
Rated Load （KN） |
Applicable Wire Diameter |
Weight （KG） |
|
13310 |
1000 |
10 |
4-14 |
1.3 |
|
13311 |
2000 |
20 |
7-20 |
1.6 |
|
13312 |
3000 |
30 |
16-32 |
2.8 |
We also manufacture a lot of automatic come along clamps for the ground wire, except the steel wire grippers, like SKDZ model earth wire grips, and SKD type ground wire grips and the SKDS Dual Cam Type Earth Wire Grips. They are all forged from quality alloy steel, and the jaws are specially designed for holding the ground wires.
SKDZ Model Earth Wire Grips (Automatic come along clamps for ground wires)
|
Item No. |
Model |
Rated Load (KN) |
Breaking Load (KN) |
Wire Size Range (mm²) |
Max. Opening (mm) |
Weight (kg) |
|
13101 |
SKDZ-0.5 |
5 |
15 |
10-25 |
10 |
2 |
|
13102 |
SKDZ-1 |
10 |
30 |
25-50 |
12 |
2 |
|
13103 |
SKDZ-2 |
20 |
60 |
50-70 |
14 |
2.9 |
|
13104 |
SKDZ-3 |
30 |
90 |
70-120 |
16 |
3.5 |
|
13105 |
SKDZ-5 |
50 |
150 |
150-185 |
20 |
6.3 |
SKD type Ground Wire Grippers (Automatic come along clamps for ground wires)
|
Item No. |
Model |
Rated Load (KN) |
Breaking Load (KN) |
Wire Size Range (mm²) |
Max. Opening (mm) |
Weight (kg) |
|
13113 |
SKD25 |
10 |
30 |
25 |
9.5 |
2.5 |
|
13114 |
SKD35 |
10 |
30 |
35 |
9.5 |
2.5 |
|
13115 |
SKD50 |
15 |
45 |
50 |
10 |
3.5 |
|
13116 |
SKD70 |
20 |
60 |
70 |
12.5 |
5.0 |
|
13117 |
SKD100 |
30 |
90 |
100 |
14 |
6.0 |
SKDZ is used for tensioning of earth wires and adjustment of guy wires. The gripping pressure of two knurled cams is applied to stranded steel wires.
|
Item No. |
Model |
Rated Load (KN) |
Breaking Load (KN) |
Wire Size Range (mm²) |
Max. Opening (mm) |
Weight (kg) |
|
13141 |
SKDS-1 |
10 |
20 |
25-50 |
11 |
2.6 |
|
13142 |
SKDS-2 |
20 |
40 |
70-120 |
13 |
3.1 |
|
13143 |
SKDS-3 |
30 |
60 |
95-150 |
15 |
4.1 |
