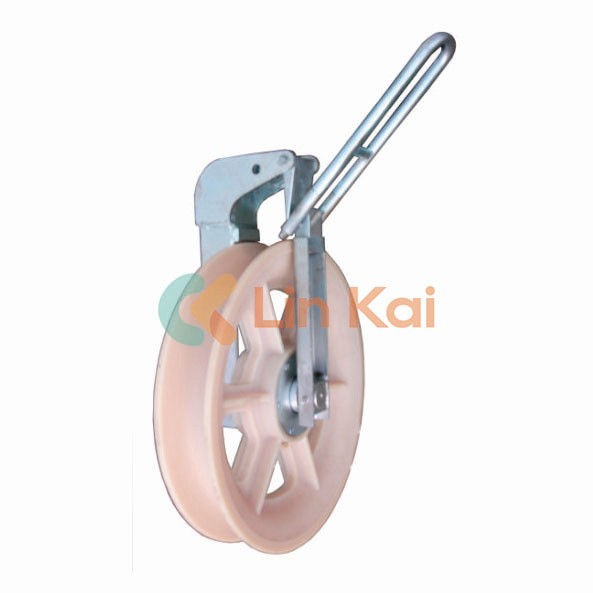

Ningbo Lingkai’s Helicopter Conductor Stringing Blocks are suitable for stringing the pilot rope by helicopter. Special guides ensure the correct positioning of the rope during stringing operations.
The wheels are made of aluminum alloy mounted on ball bearings.
The wheel of the helicopter conductor stringing blocks has a groove made up of wear-proof interchangeable negatron sectors. The frame is made of galvanized steel. A grounding device is available upon request.
Helicopter pull guide ropes are equipped with China-made bundled conductor aerial helicopter conductor stringing blocks used in power transmission line installation.
|
Item number |
Model |
Outside Diameter Of Sheave(MM) |
Sheaves |
|
10321 |
SHDN508Z |
Φ508×75 (508*100) |
1 |
|
10322 |
SHSN508Z |
3 |
|
|
10323 |
SHWN508Z |
5 |
|
|
10324 |
SHDN660Z |
Φ660×100 (660×110) |
1 |
|
10325 |
SHSN660Z |
3 |
|
|
10326 |
SHWN660Z |
5 |
|
|
10326-1 |
SHDN822Z |
Φ822×110 |
1 |
|
10326-2 |
SHSN822Z |
3 |
|
|
10326-3 |
SHWN822Z |
5 |
|
|
10327 |
SHDN916Z |
Φ916X110 |
1 |
|
10328 |
SHSN916Z |
3 |
|
|
10329 |
SHWN916Z |
5 |

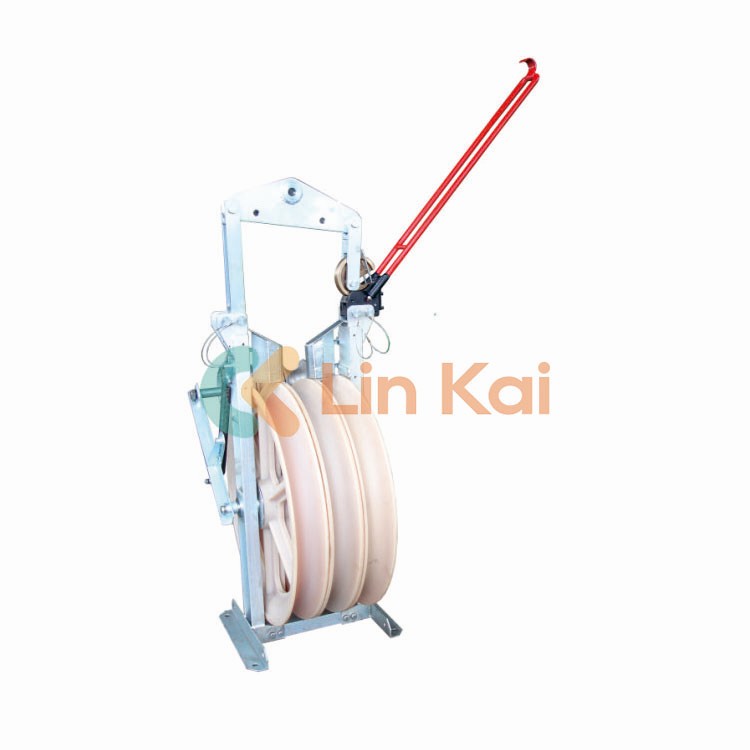

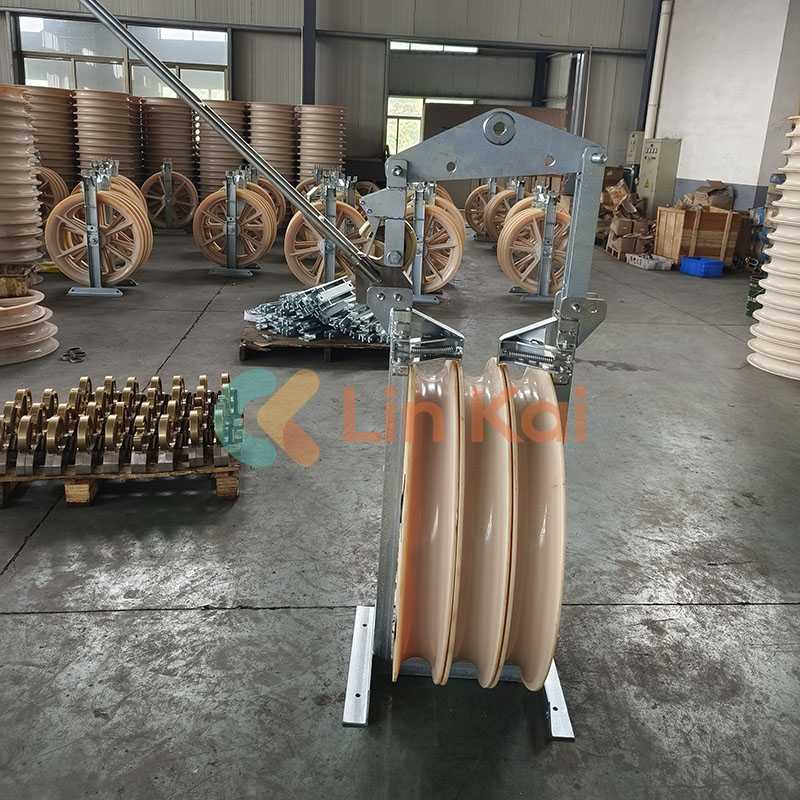

Rubber may be lined into the 508mm, 660mm, 822mm, and 916mm aluminum alloy sheaves of helicopter conductor stringing blocks. Helicopter stringing blocks are supplied in three and five sheaves for two and four bundle conductors, respectively.
Ningbo Lingkai’s Helicopter Conductor Stringing Blocks are designed for stringing pilot ropes by helicopter, with special guides ensuring the correct positioning of the rope during operations.
The Helicopter Conductor Stringing Blocks' wheels, made of aluminum alloy and mounted on ball bearings, feature grooves composed of wear-proof, interchangeable negatron sectors. The frame is constructed from galvanized steel, and a grounding device is available upon request.
These helicopter pull guide ropes, equipped with China-made bundled conductor aerial helicopter conductor stringing blocks, are used in power transmission line installations.
Rubber lining is available for the 508mm, 660mm, 822mm, and 916mm aluminum alloy sheaves of the helicopter conductor stringing blocks. These blocks come in configurations of three and five sheaves for handling two and four bundle conductors, respectively.
