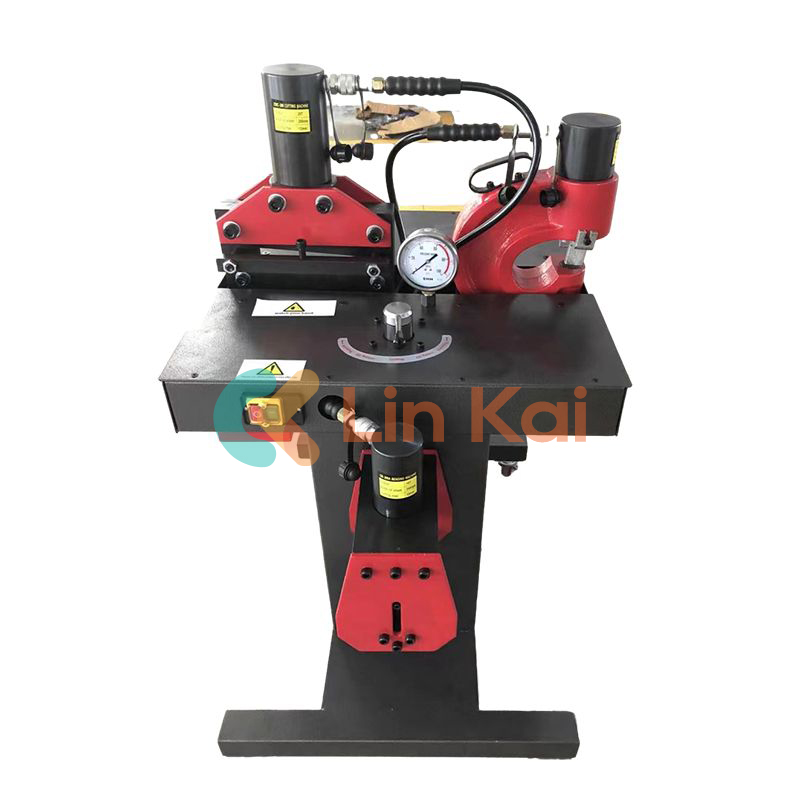

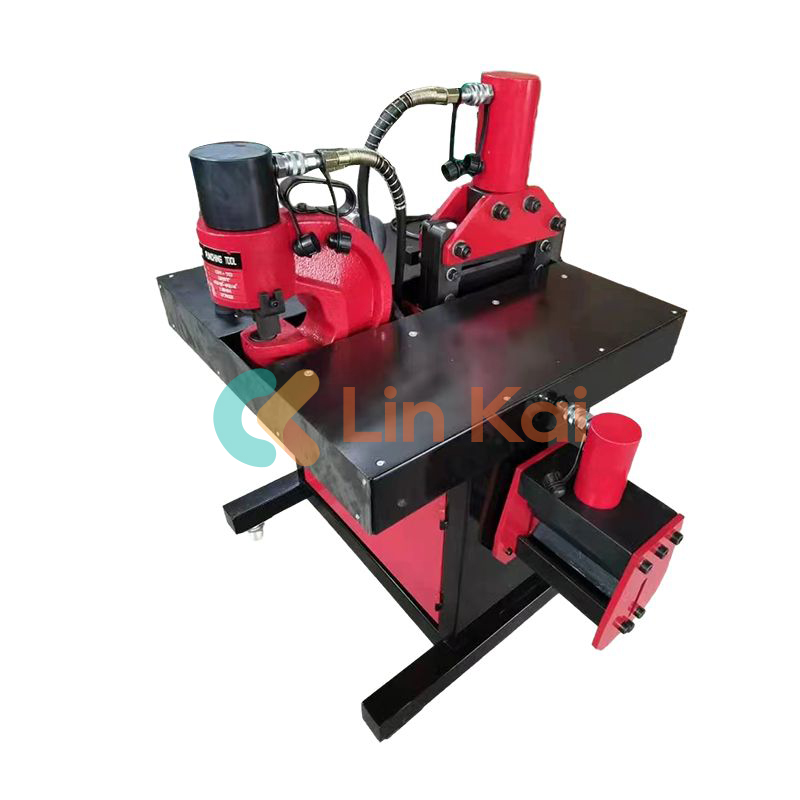

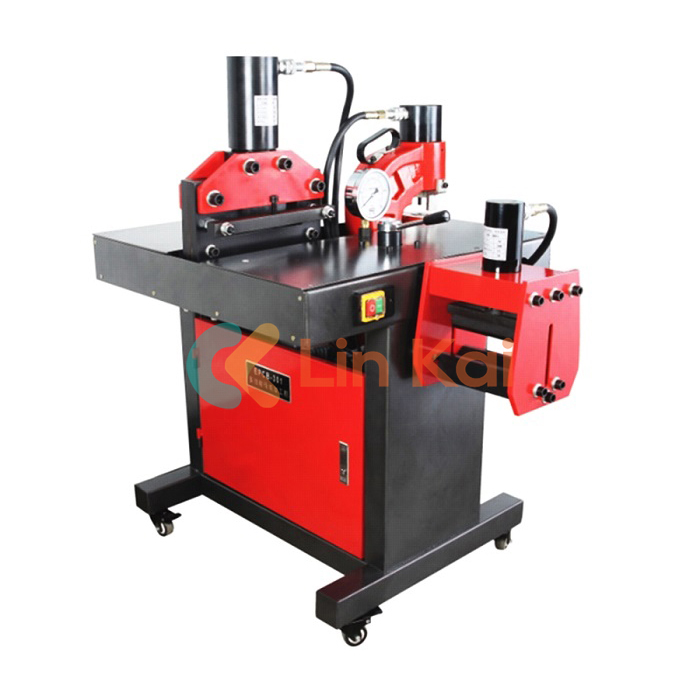

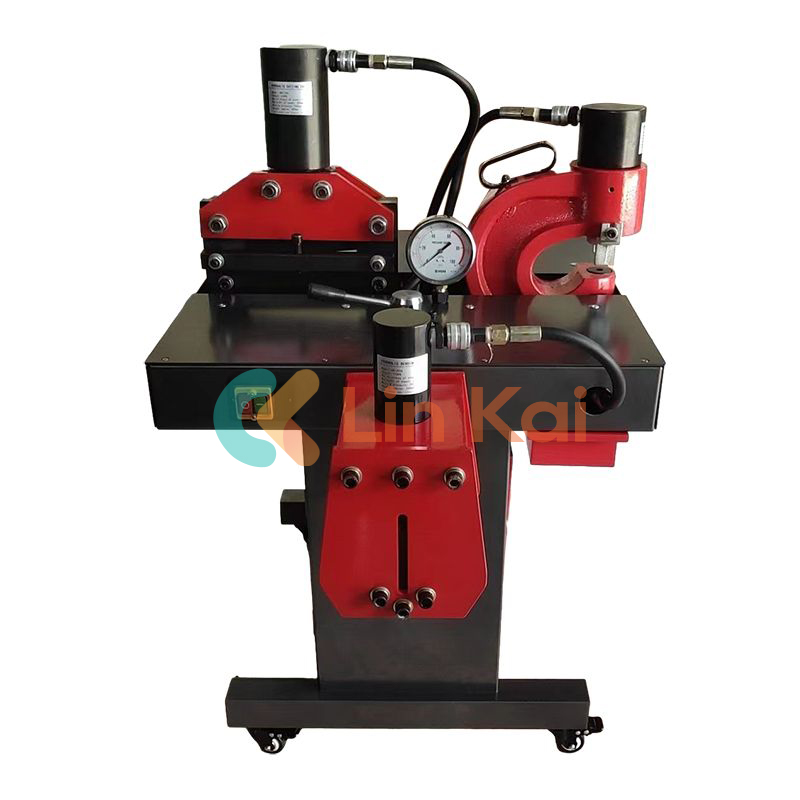

LingKai's hydraulic bus-bar processing machine in stock is suitable for transmission and distribution in large workshops and sites, construction, power distribution cabinets and switch cabinets, etc., and the use of electrical appliance factories.
Hydraulic bus-bar processing machines in bulk when we are designing and manufacturing aim to save hours of work and improve work efficiency. The high-quality hydraulic bus-bar processing machine we made is the result of foreign advanced products combined with the actual situation in China. This machine is equipped with bending, cutting, and punching functionality. We matched the hydraulic bus-bar processing machine with the optional foot switch or wire switch; it is easy to operate.
|
Item number |
06232 |
06231A |
06231 |
|
Model |
EPCB-301 |
EPCB-401A |
EPCB-401 |
|
Function |
with three functions, cutting, punching and bending |
with four functions, cutting, punching, bending and crimping |
with four functions, cutting, punching and bending(horizontal and erective) |
|
Dimension of work table |
approx.690x690x730mm |
approx.690x690x730mm |
approx.690x690x730mm |
|
Voltage single phase |
220V50HZ |
220V50HZ |
220V50HZ |
|
Rating oil pressure |
700kg/cm² |
700kg/cm² |
700kg/cm ² |
|
Bending force |
170KN/200KN |
170KN/200KN |
270KN |
|
Bending range |
150x10mm max/200x12mm max |
150x10mm max/200x12mm max |
125x12.5mm max |
|
Cutting force |
200KN/300KN |
200KN/300KN |
200KN/300KN |
|
Cutting rang |
150x10mm max/200x12mm max |
150x10mm max/200x12mm max |
150x10mm max/200x12mm max |
|
Punching force |
300KN/350KN |
300KN/350KN |
300KN/350KN |
|
Distance from hole to sheet side |
95x110mm max |
95x110mm max |
95x110mm |
|
Punch rang |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
3/8"(Φ10.5mm),1/2"(Φ13.8mm), 5/8"(Φ17mm),3/4"(Φ20.5mm) |
|
Package |
wooden case |
wooden case |
wooden case |
