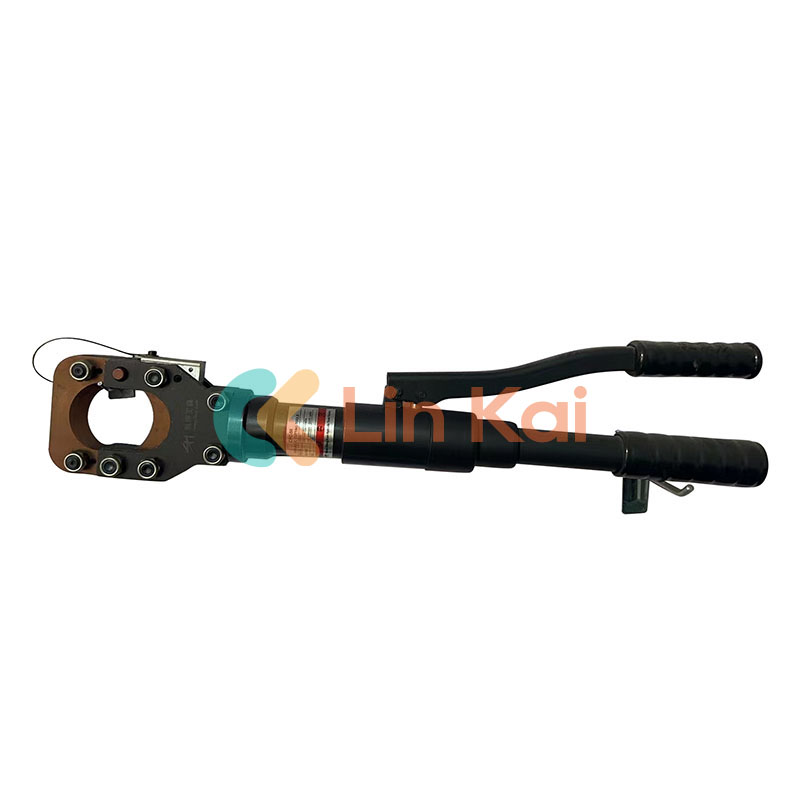

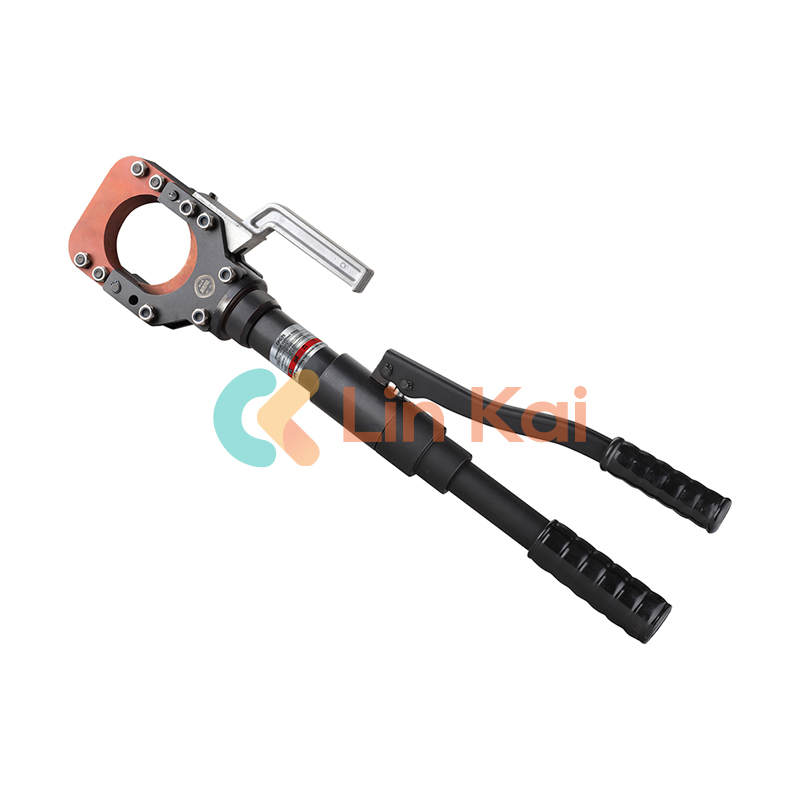

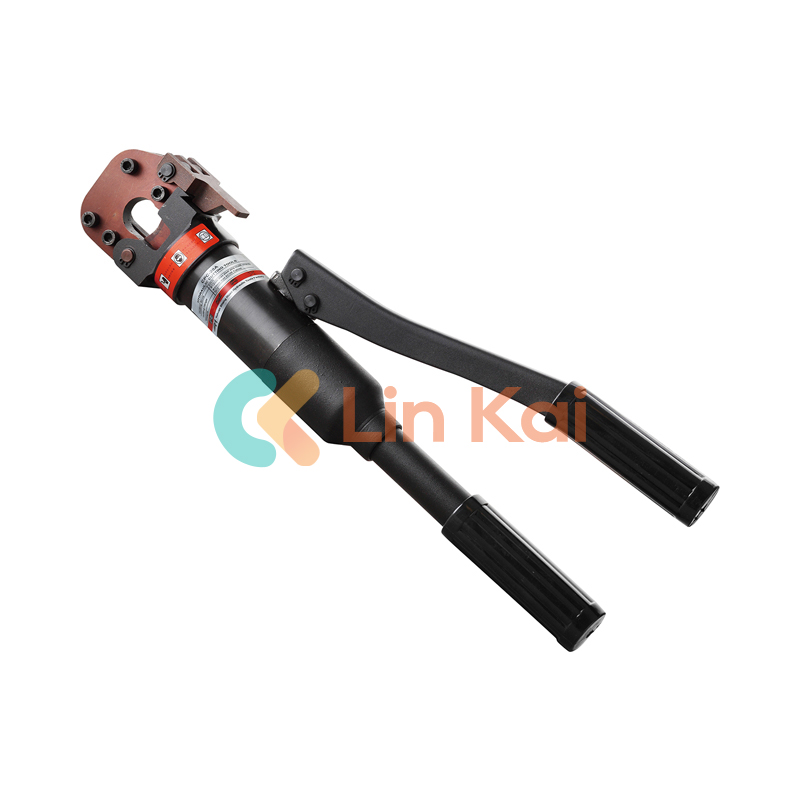

The hydraulic cable cutters that Ningbo, Lingkai, China has on hand include the following features: 1. An oil intake with two speeds that operates swiftly. 2. A head with a scissor shape for simple wire placement. 3. The working angle may be adjusted by rotating the head 180 degrees. 4. The tool's 360-degree operation made it ideal for use in high altitude and without a footing.
China produces inexpensive hydraulic cable cutters, but they must meet strict standards for hardness, scientific microstructure requirements, CNC processing, and raw materials. Because it is equipped with hydraulic components, this hydraulic cable cutter may be used extensively in subterranean cable construction sites as well as overhead transmission line ACSR cutters, reducing labor costs and time.
Hydraulic Cable Cutter are suitable for cutting Cu/Al cable, armored cable, ACSR, steel wire, rebar/chain and the steel strands. When place order to us, please make clearly know your wire type and wire diameters.
|
Model |
Cutting force(T) |
Cutting range |
Length mm |
Weight (kgs) |
|
CPC-20A |
4 |
D 18mm ACSR, D20m Al-Cu cable, and armored; D 12mm steel strand; D 12mm rebar/chain D 20mm steel rope (all below above size) |
420mm |
3 |
|
CPC-30A |
8 |
D30mm Cu/Al cable, telephone cable |
525mm |
4.0 |
|
CPC-50 |
6 |
D 50mm Cu/Al, telephone cable |
620mm |
6.5 |
|
CPC-75 |
8 |
D 75mm Cu/Al, telephone cable |
665mm |
7.5 |
|
CPC-85 |
10 |
D85mm Cu/Al, telephone cable |
800mm |
9.5 |
