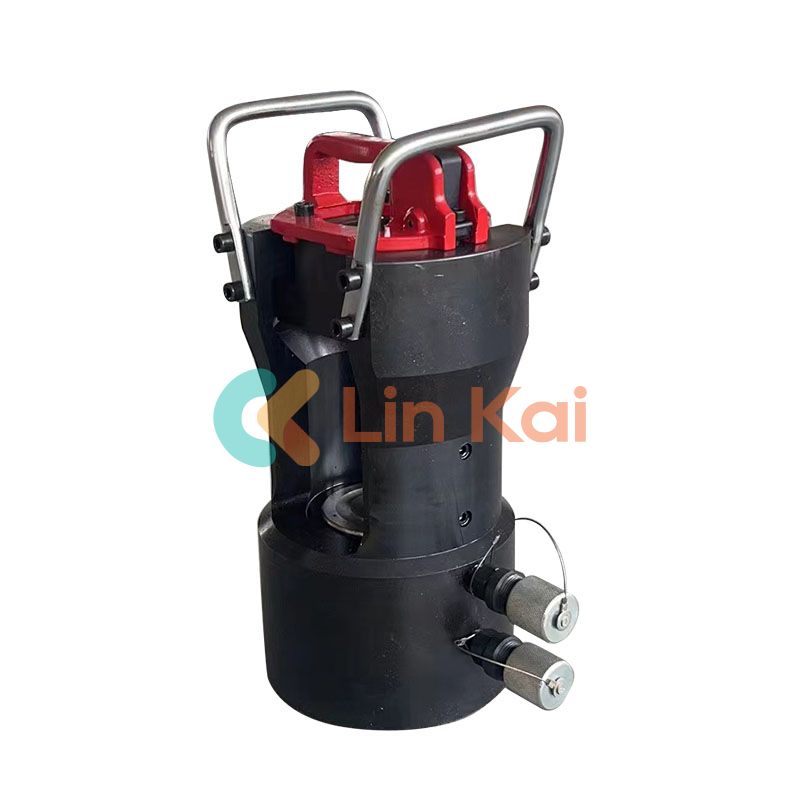

Hydraulic Compressor with motorized pump of transmission line Stringing Tools China advanced manufacturer and supplier – Ningbo Lingkai Machinery Co., Ltd. Hydraulic Compressor is also be called Automatic Hydraulic Conductor Crimping Machine, the material is 42Cr Mo forging, The treatment of material is applied the Overall modulation, piston quenching, we have from 25T, 45T,65T,125T,200T and 300T, the mainly feature is suit to the round and square die sets.
Hydraulic Compression Tools for Efficient Crimping
The Hydraulic Compressor with motorized pump of transmission line Stringing Tools are an efficient solution for crimping overhead tension sleeves on power lines with a voltage of 110KV or above. These tools are designed to withstand high levels of tension and are suitable for a variety of applications. They are particularly useful for underground cable connections and other heavy-duty tasks that require precise crimping.
Features and Benefits
The Hydraulic Compressor with motorized pump of transmission line Stringing Tools are designed with advanced technology to ensure accuracy and efficiency. They feature a powerful hydraulic system that provides the necessary force to crimp sleeves quickly and effectively. The tools are also lightweight and easy to handle, reducing operator fatigue and increasing productivity. They are made with durable materials to ensure longevity and consistent performance over time.
Applications
The Hydraulic Compressor with motorized pump of transmission line Stringing Tools are ideal for a range of applications in the power transmission and distribution industry. They are commonly used for crimping overhead tension sleeves on power lines, as well as for underground cable connections. These tools can also be used for other heavy-duty tasks that require accurate and efficient crimping, such as in the construction and telecommunications industries.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |

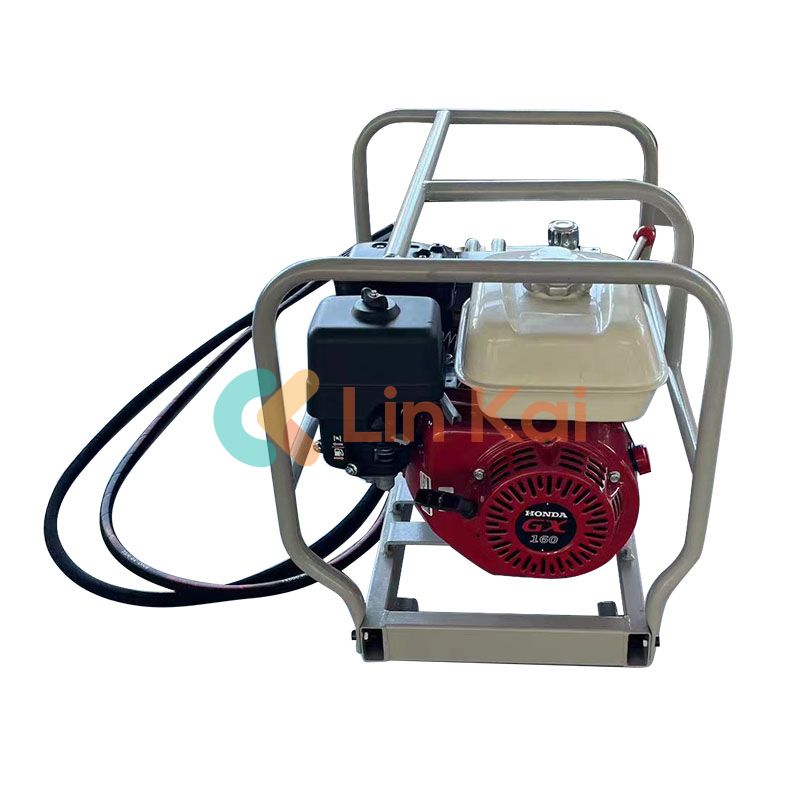

Application: For compressing conductor joints or earth wire joints, a motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head. High strength steel is used in its casting.
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
11.02-2.05 |
5.0 |
55 |
It should be noted that the Hydraulic Compressor with motorized pump of transmission line Stringing Tools’s pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.
A normal hydraulic hose is three meters long. Extended Hose is not required.
|

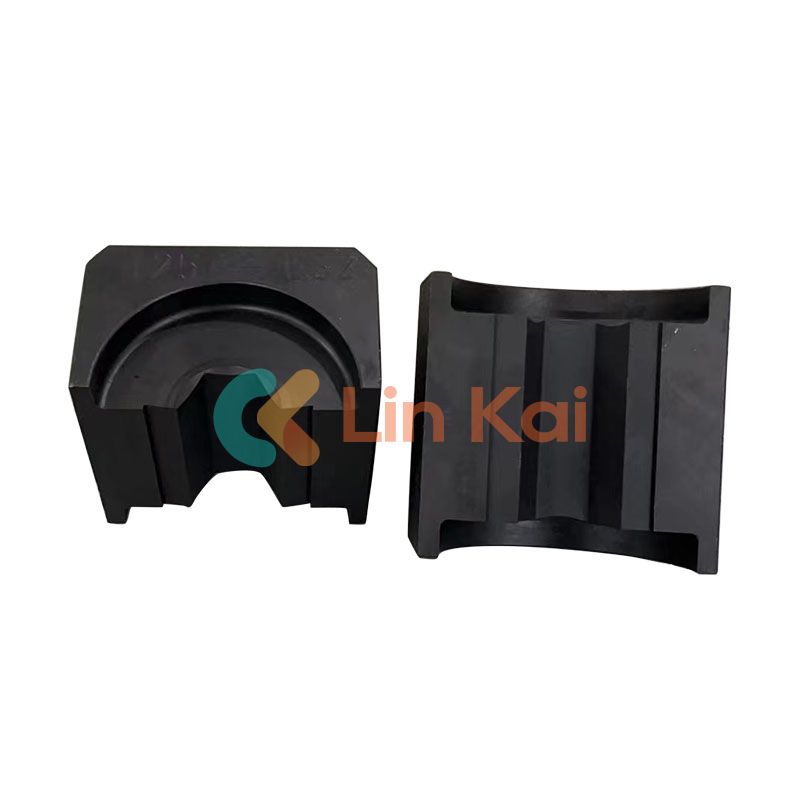

Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
