As a professional China Hydraulic Conductor Compressor Machine For ACSR Conductors manufacturers and suppliers, we provide customers with comprehensive project management services. Ningbo Lingkai Machinery use the high quality 42CrMo forging.

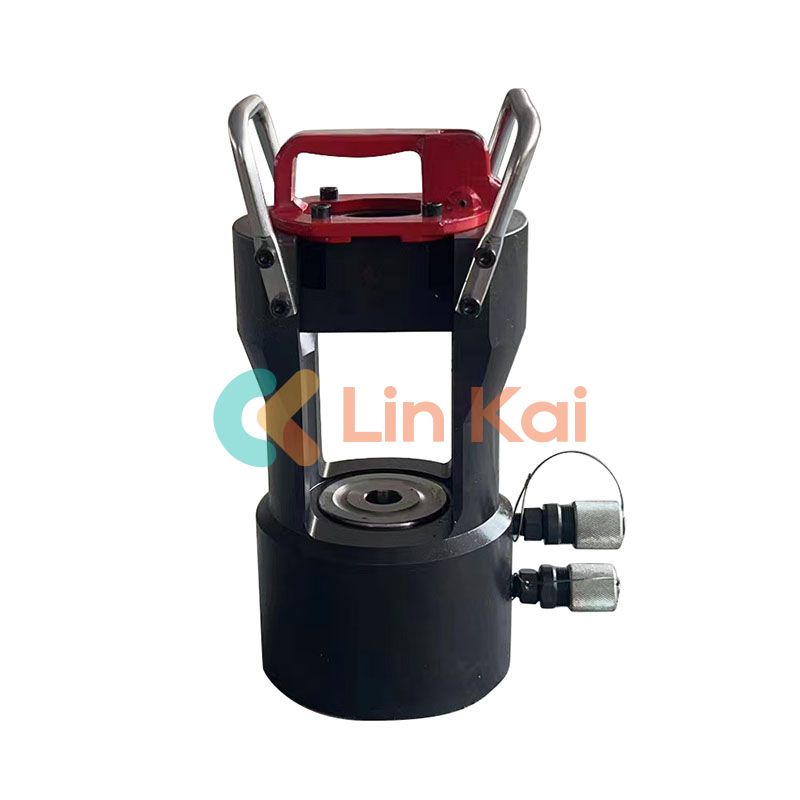

Hydraulic Conductor Compressor Machine For ACSR Conductors
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
To compress conductor joints or earth wire joints, a motorized hydraulic pump is used in combination with a hydraulic compressor head. In order to ensure durability, the Hydraulic Conductor Compressor Machine For ACSR Conductors's casting is made of high-strength steel.
A Hydraulic Press Machine with a motorized hydraulic pump is used to join ACSR conductors in overhead transmission line stringing. This Hydraulic Conductor Compressor Machine For ACSR Conductors helps to ensure that the joints are securely compressed and able to withstand the demands of the transmission line.
Applications:
Hydraulic Compression Tools
The hydraulic compression tools are specialized equipment designed for crimping overhead tension sleeves that are used on power lines with voltages of 110KV or higher. This Hydraulic Conductor Compressor Machine For ACSR Conductors is built to withstand the high pressure and force required for such tasks and provide reliable and efficient results.
In addition, the Hydraulic Conductor Compressor Machine For ACSR Conductors also work for underground cable connecting. With their hydraulic power, these tools enable secure connections for underground cables, ensuring that the power lines are reliable and safe.
These Hydraulic Conductor Compressor Machine For ACSR Conductors are essential for any professional working in the power, energy, or infrastructure industries. They are built with high-quality materials and designed for durability and longevity, ensuring that they will serve your needs for years to come.
Customization:
Manufactured in China, our Hydraulic Conductor Compressor Machine For ACSR Conductors delivers a maximum compression force of 25T-300T, making it perfect for crimping ACSR. The die set ranges from 16-400mm2 and can crimp ACSR sizes up to 240mm², 500mm², 720mm², 1440mm², and 2500mm².
Our Hydraulic Conductor Compressor Machine For ACSR Conductors is a versatile tool that can be customized to suit your specific needs. Whether you require a different compression force, die set, or application, we can customize the product to meet your requirements.
Support and Services:
- Troubleshooting and problem-solving for any issues with the product
- Assistance in setting up and using the crimping tool correctly
- Training and education on proper maintenance and care for the tool
- Repair and replacement services for any damaged or broken parts
- Upgrades and customization options to improve the tool's performance
Product Packaging:
The Hydraulic Conductor Compressor Machine For ACSR Conductors will be carefully packaged in a durable cardboard box to ensure that it arrives in excellent condition. The tool itself will be wrapped in bubble wrap and placed securely in the center of the box. The box will be sealed with high-quality tape to prevent any damage during shipping.
Shipping:
The Hydraulic Conductor Compressor Machine For ACSR Conductors will be shipped via a reliable courier service such as FedEx or UPS. We offer both standard and expedited shipping options to meet your needs. Once your order is confirmed, we will provide you with a tracking number so you can easily track your package and know when it will arrive.
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
11.02-2.05 |
5.0 |
55 |
It should be noted that the pump stations of Hydraulic Conductor Compressor Machine For ACSR Conductors simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.
A normal hydraulic hose is three meters long. Extended Hose is not required.
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
