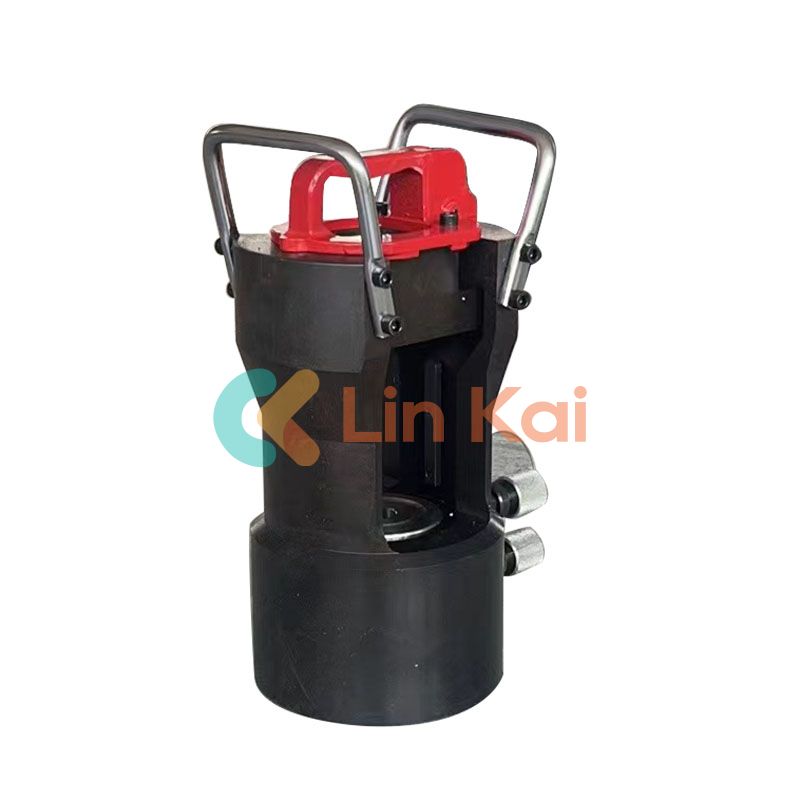

Jointing ACSR Hydraulic Compressor Machine can be used, for example, to crimp wire grips, high-voltage cable sleeves, and hexagon and insulated terminals. Jointing ACSR Hydraulic Compressor Machine can handle a variety of conductor sizes and shapes thanks to its adjustable pressing force and crimping dies, offering adaptability and flexibility for a range of applications. Additionally, the Lingkai factory's Jointing ACSR Hydraulic Compressor Machine can be used with a range of attachments, including hoses, adapters, and hydraulic pumps, all of which can improve its efficiency and functionality.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
Application: For compressing conductor joints or earth wire joints, a motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head. High strength steel is used in Jointing ACSR Hydraulic Compressor Machine’s casting.
Shipment
1. The Jointing ACSR Hydraulic Compressor Machine will be sent in a container or via air.
2. We typically dispatch the items within one month of receiving payment.
3. Standard products are currently in stock.
Using the Jointing ACSR Hydraulic Compressor Machine is relatively simple and straightforward, although it requires some training and safety precautions. Before operating the machine, the user must inspect it for any damage or malfunction, as well as ensure that the work area is clean and free of obstacles. The user should also wear appropriate personal protective equipment when using the Jointing ACSR Hydraulic Compressor Machine, including safety glasses, gloves, and boots, to avoid any potential hazards.
Once the Jointing ACSR Hydraulic Compressor Machine is ready, the user should select the appropriate crimping die and adjust the pressing force according to the conductor's size and material. The user should then place the conductor or sleeve in the die and activate the hydraulic pump to apply the pressure. The Jointing ACSR Hydraulic Compressor Machine will then perform the crimping operation, and the user can release the pressure and remove the conductor or sleeve. The user should verify the quality of the crimping by checking its dimensions, shape, and electrical conductivity.
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |

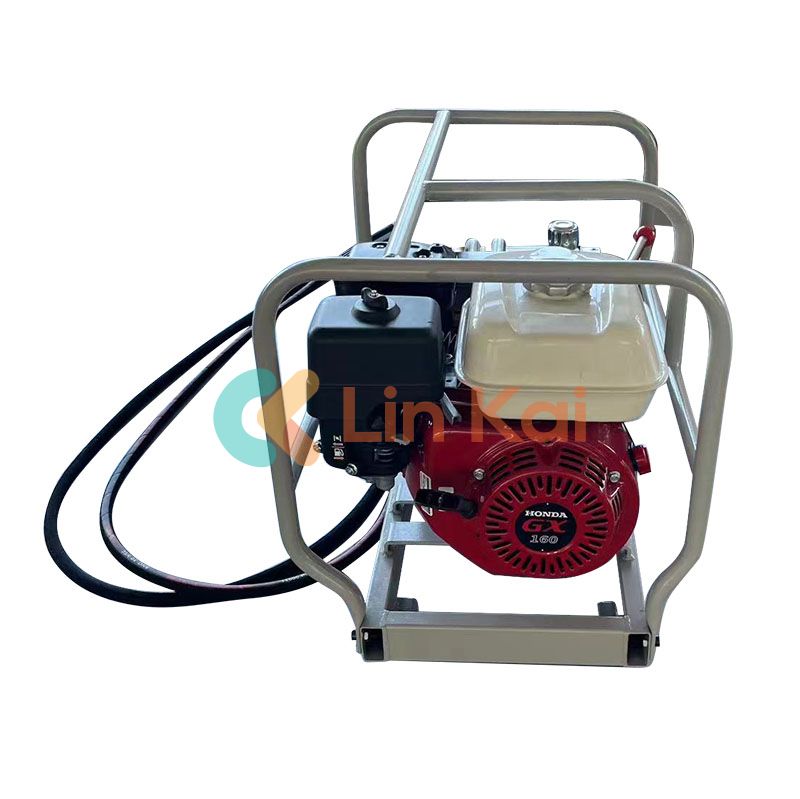

Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
11.02-2.05 |
5.0 |
55 |
It should be noted that the pump stations of the Jointing ACSR Hydraulic Compressor Machine only provide electricity to other devices or hydraulic compressors. The Honda GX160 features a gasoline engine.
A standard hydraulic hose is three meters long. Extended hose is not necessary.
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets of Jointing ACSR Hydraulic Compressor Machine
could be made according to the requirement of customer.
