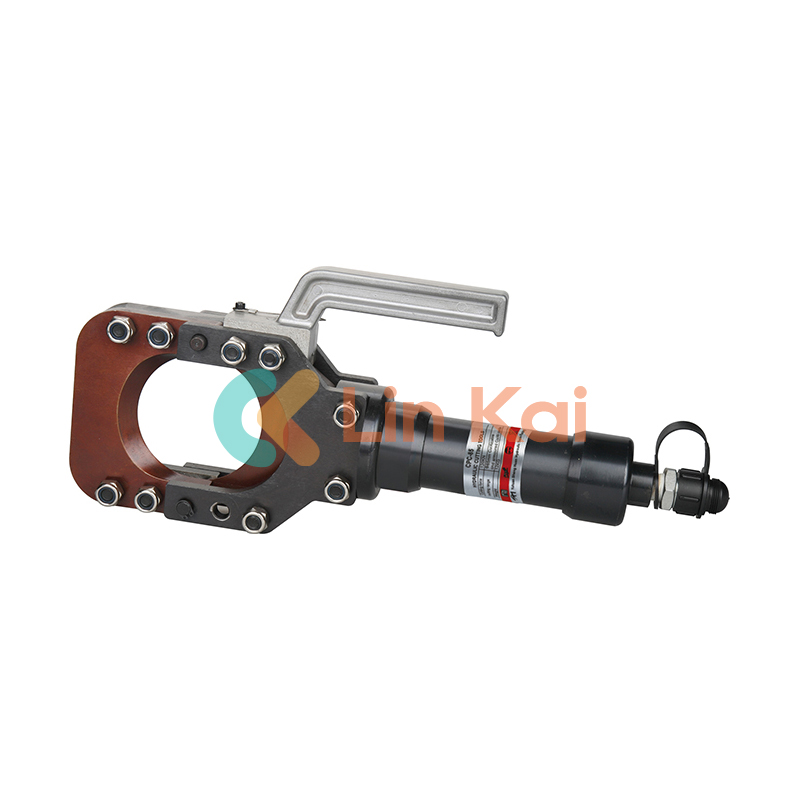

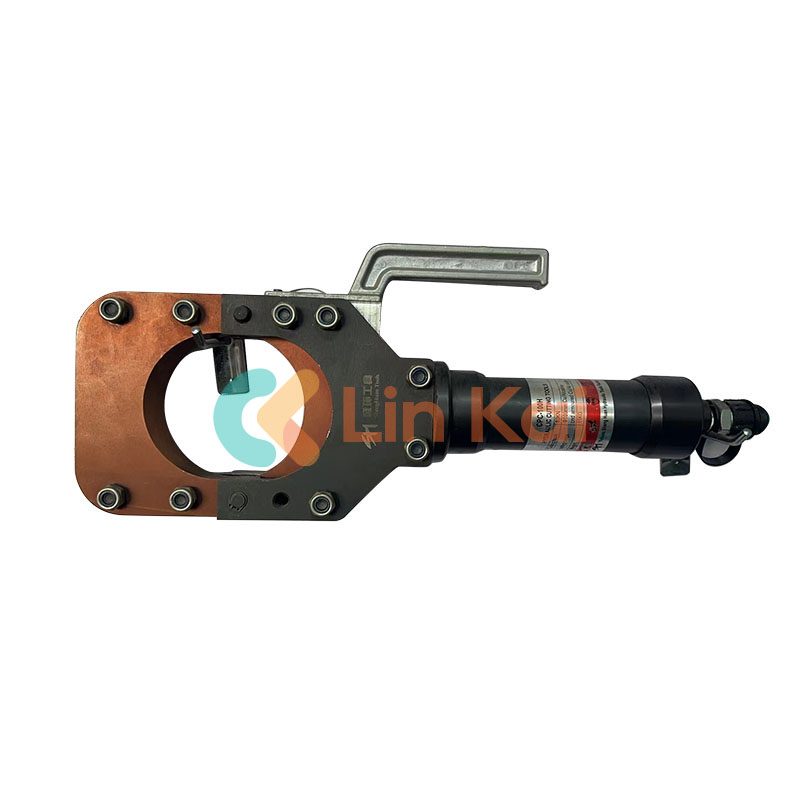

With the hook-style cutter head on Lingkai's wholesale Split Type Cable Cutter, you can easily open and shut the wire and position it in any desired position. The oil pipe connection on the Split Type Cable Cutter has a PT3/8" thread. Please feel free to request a quote for the Split Type Cable Cutter from us. In addition, please let us know the cutting wire and range you need to work with. This tool requires the use of an electric powered hydraulic pump, a manual pump, and a pedal pump.
The same time, we have the hydraulic cable cutter, without pump needed.
|
Model |
Cutting force(T) |
Cutting range |
Length |
|
CPC-20H |
4 |
D 18mm ACSR,D 20mm Cu/al, D 12mm armored cable D 20 mm steel wire, D 12mm Rebar (all above is suit to below ) |
210mm; 2 kgs |
|
CPC-30H |
7 |
D 30mm Cu/Al cable |
350mml 3.5 kgs |
|
CPC-50H/50S |
7 |
D 50mm Cu/al cable, D 32mm steel wire rope |
350mm, 3.5kgs |
|
CPC-75H |
7 |
D 75mm Cu/al cable |
430mm, 4.5 kgs |
|
CPC-85H/SC |
8 |
D 85mm Cu/al cable.D60 steel strands |
480mm, 7.4 kgs |
|
CPC-100H/SC |
10 |
D 100mm Cu/al cable/ D 85mm steel strands |
550mm,10kgs |
|
CPC-132H/SC |
15 |
D132mm Cu/al /D120mm steel strands |
680mm, 17kgs |
|
CPC-150H/SC |
15 |
D150mm Cu/al /D130mm steel strands |
700mm, 19kgs |

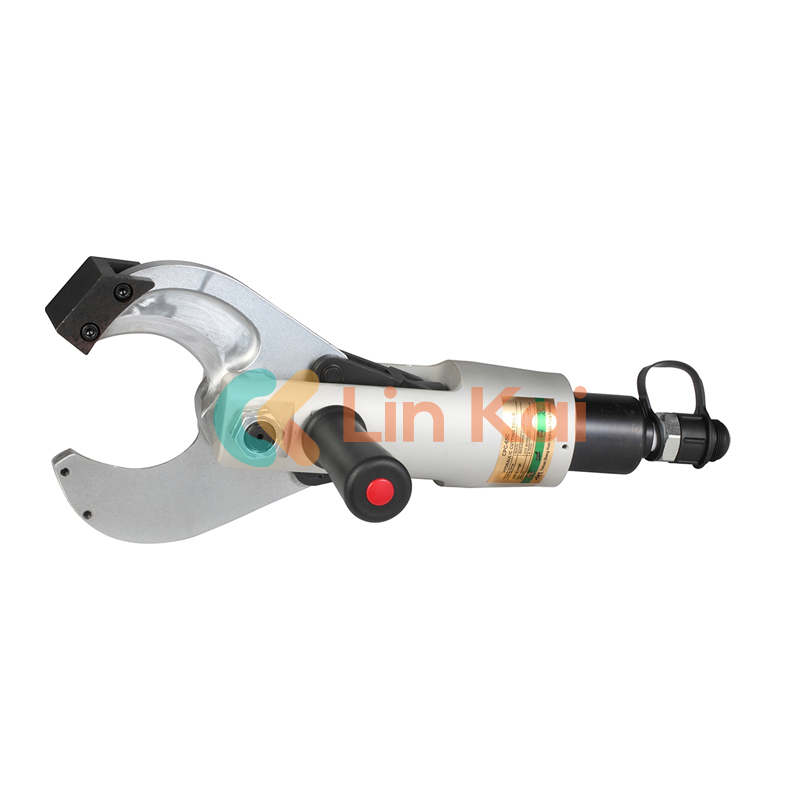

Newest Split Type Cable Cutter we developed it is the open type C shear blade, this makes cutting operation more simple and convenient. The better alternating type two stage hydraulic pump makes the blade closer to the cable, and the operation is easier. We develop the design of the blade guide block to prevent blade displacement during shearing.
|
Model |
Copper wire |
AL/Cu wire |
Rated Output |
Rated pressure |
Oilrequired |
Max pressure |
Hydraulic oil |
Tem |
|
CPC-65C |
D65mm |
D65mm |
60kn |
46 Mpa |
46ml |
70Mpa |
Shell tellus T 15 |
-20 degree~ 50 degree |
|
CPC-85C |
D85mm |
D85mm |
60kn |
52Mpa |
52ml |
|||
|
CPC-105C |
D105mm |
D105mm |
120kn |
95Mpa |
95ml |
|||
|

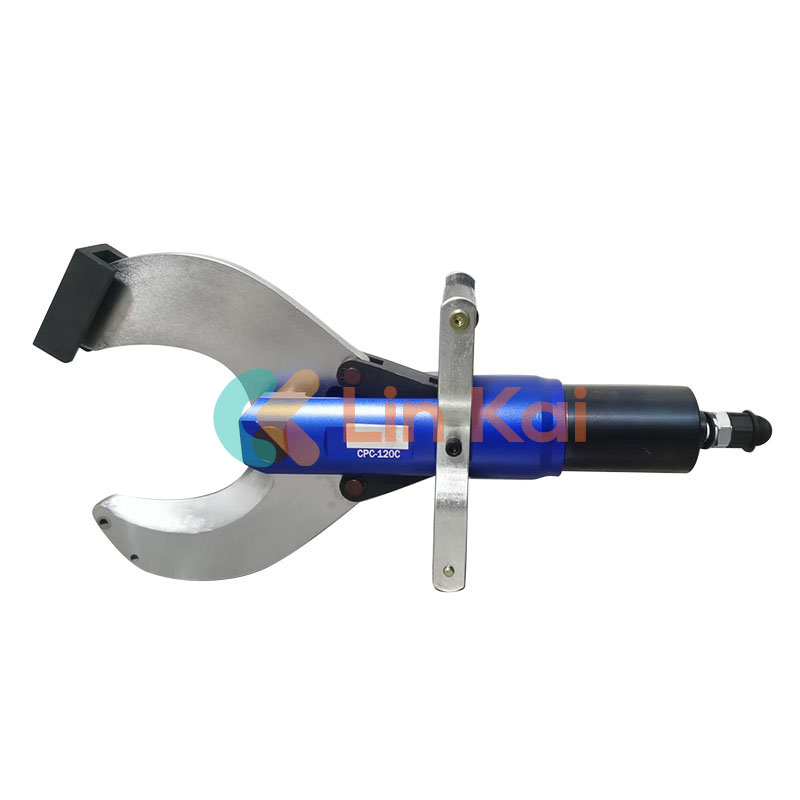

CPC-120C |
D120mm |
D120mm |
120kn |
95Mpa |
95ml |
