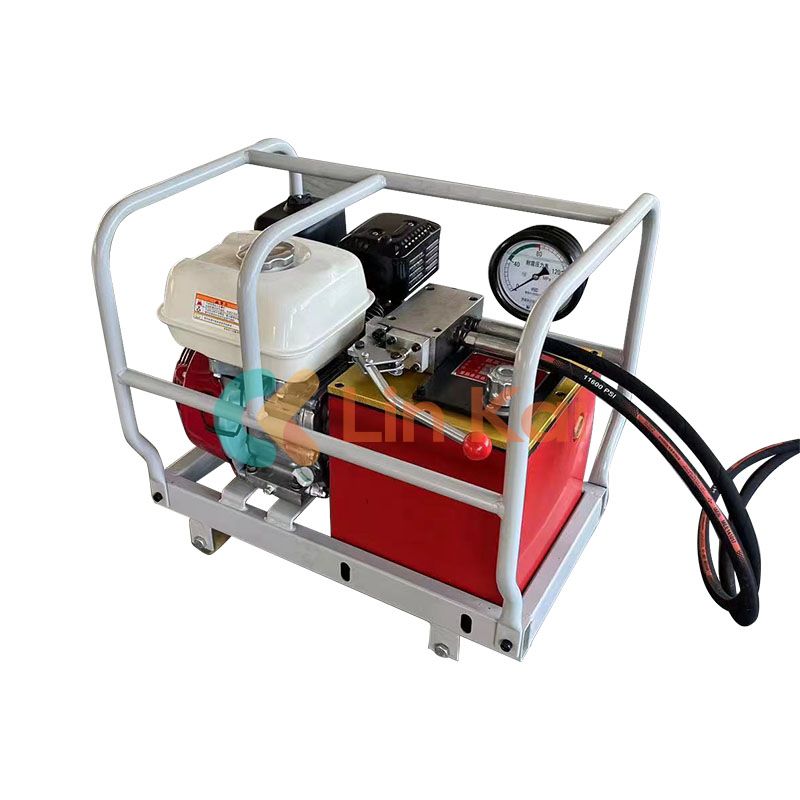

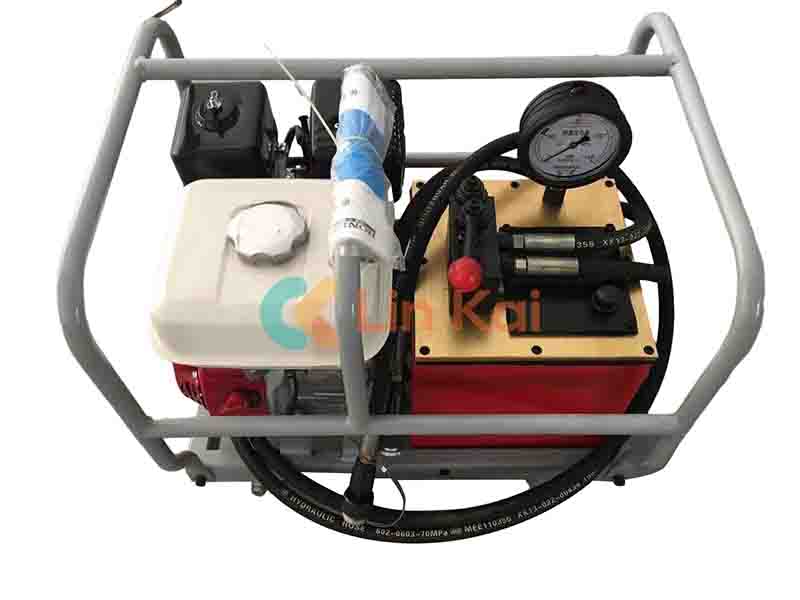

Introducing our durable top-of-the-line Super High-Pressure Double Speed Hydraulic Pump Station, with incredible high pressure output and a double stage pump system, designed to provide maximum power and efficiency. This Super High-Pressure Double Speed Hydraulic Pump Station made in China is equipped with a top-of-the-line Honda engine, ensuring reliable and steady operation for all your construction needs. From cutting tools to hydraulic compressors and punching machines, this Super High-Pressure Double Speed Hydraulic Pump Station is perfect for use in industries such as electric power, railway construction, and rescue operations in the wild field.
Our Super High-Pressure Double Speed Hydraulic Pump Station is designed to mount on a hand cart for easy operation with a gasoline motor. This design is perfect for on-the-go construction needs and provides maximum versatility.
We're excited to announce the development of our new Gasoline Engine Hydraulic Pump Station, which is significantly lighter weighing 10 kg than old type. This China Super High-Pressure Double Speed Hydraulic Pump Station also boasts a super-fast speed, approximately three times faster than our other models. Additionally, the new aluminum alloy oil tank has been developed specifically to dissipate heat faster, ensuring a longer-lasting and more reliable hydraulic pump station.
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Max Pressure (Mpa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
94 |
11.02-2.05 |
5.0 |
55 |
Application: It should be noted that the Super High-Pressure Double Speed Hydraulic Pump Station simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine. A normal hydraulic hose is three meters long. Extended Hose is not required.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
