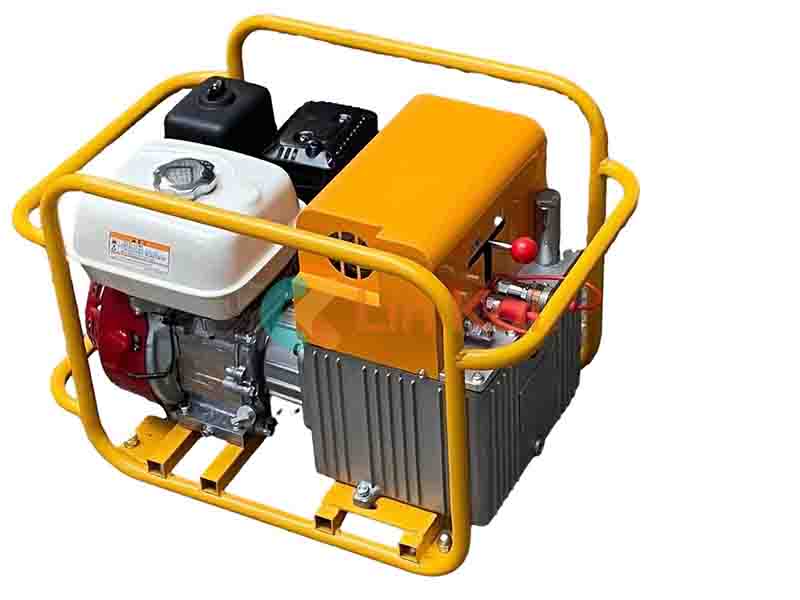

Ningbo Lingkai Machinery now offer the high quality new Super High-Pressure Hydraulic Pump Station, which is three times faster than the old one and weighs less than 10 kg, for your added convenience. This pump station's aluminum alloy oil tank dissipates heat more quickly than it did previously. It requires little effort to operate and yields fast results.
Our Super High-Pressure Hydraulic Pump Station is a high-quality product designed to meet the needs of professionals and DIY enthusiasts alike. We offer a range of technical support and services to ensure that our customers get the most out of their investment.
Our team of experts is available to answer any questions you may have about our products and provide assistance with installation, troubleshooting, and maintenance. We also offer training sessions for users who want to learn how to use our Super High-Pressure Hydraulic Pump Station safely and efficiently.
In addition, we provide repair and calibration services to ensure that your Super High-Pressure Hydraulic Pump Station is always working at its best. Our technicians are highly skilled and use the latest tools and equipment to get the job done quickly and efficiently.
At our company, we pride ourselves on providing excellent customer service and support. We are committed to ensuring that our customers are satisfied with their purchase and have a positive experience using our products.
|
Item No. |
Description |
Hydraulic Pressure (MPa) |
Max Pressure (Mpa) |
Oil Flow (L/min) |
Power (HP) |
Weight (kg) |
|
16146 |
Gasoline motor driven hydraulic pump station mounted on hand cart |
80 |
94 |
11.02-2.05 |
5.0 |
55 |
It should be noted that the pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.
A normal hydraulic hose is three meters long. Extended Hose is not required.
|
Item No. |
Model |
Max. Compression Force (KN) |
Max. Hydraulic Pressure (MPa) |
Max. ACSR Size (mm²) |
Stroke (mm) |
Weight (kg) |
|
16101 |
QY-25 |
250 |
70 |
240 |
22 |
6 |
|
16102 |
QY-45 |
450 |
70 |
240 |
25 |
12 |
|
16103 |
QY-65 |
650 |
94 |
500 |
25 |
25 |
|
16104 |
QY-125 |
1250 |
94 |
720 |
25 |
40 |
|
16105 |
QY-200 |
2000 |
94 |
1440 |
25 |
85 |
|
16106A |
QY-300 |
3000 |
94 |
2500 |
35 |
126 |
|
Item No. |
Matching Compressor |
Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
|
16121 |
QY-25 |
Copper or Aluminum Terminators 16-240mm2 |
|
16122 |
QY-35 |
L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
|
16123 |
QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16124 |
QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
|
16125 |
QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
|
16126 |
QY-300 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
