Our Transmission Stringing Blocks are easy to install and operate. They are designed to reduce labor cost, improve the efficiency of construction and ensure safety. In addition, we also provide one year warranty for our Transmission Line Blocks, which can give you a worry-free purchase experience.
These top MC Nylon products are built with 8# steel, highly galvanized frame, and imported bearings. The raw material is sourced from the USA with 96% purity and with a UV protectant, making it suitable for outdoor use in any kind of weather for years.
|
Item Number |
Model |
Number of Sheave |
Rated Load (kN) |
Weight (kg) |
Features |
|
10141 |
SHDN822 |
1 |
30 |
40 |
MC nylon sheave |
|
10142 |
SHSQN822 |
3 |
60 |
118 |
Middle: cast steel sheave Conductor: MC nylon wheel |
|
10143 |
SHWQN822 |
5 |
120 |
180 |
|
|
10146 |
SHQ822 |
7 |
120 |
285 |
Middle: cast steel sheave Conductor: MC nylon wheel |
|
10148 |
SHJ822 |
9 |
150 |
445 |
Rubber lined MC nylon sheave for conductor can be customized.

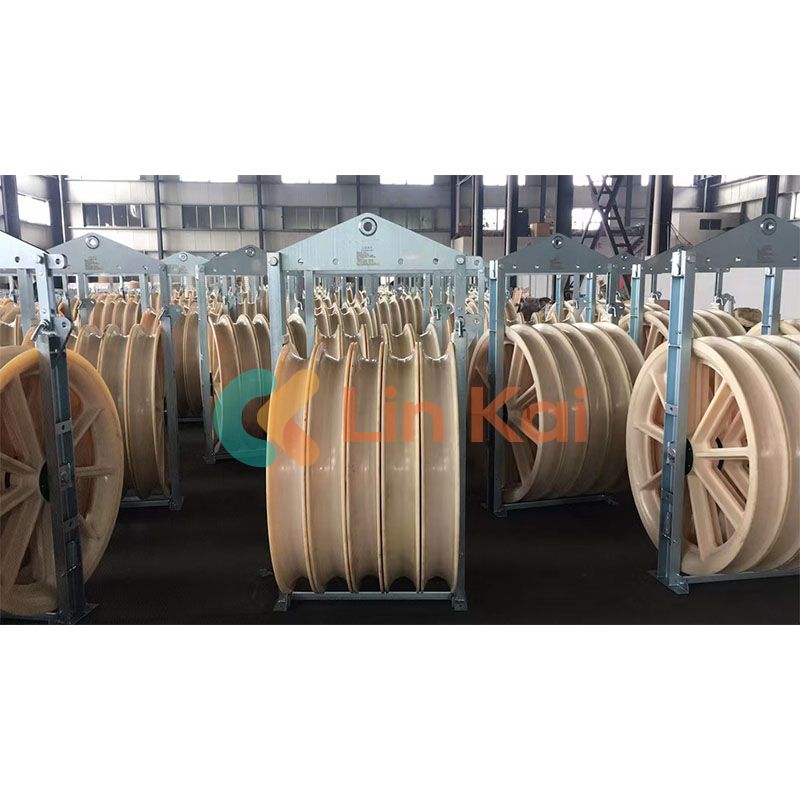

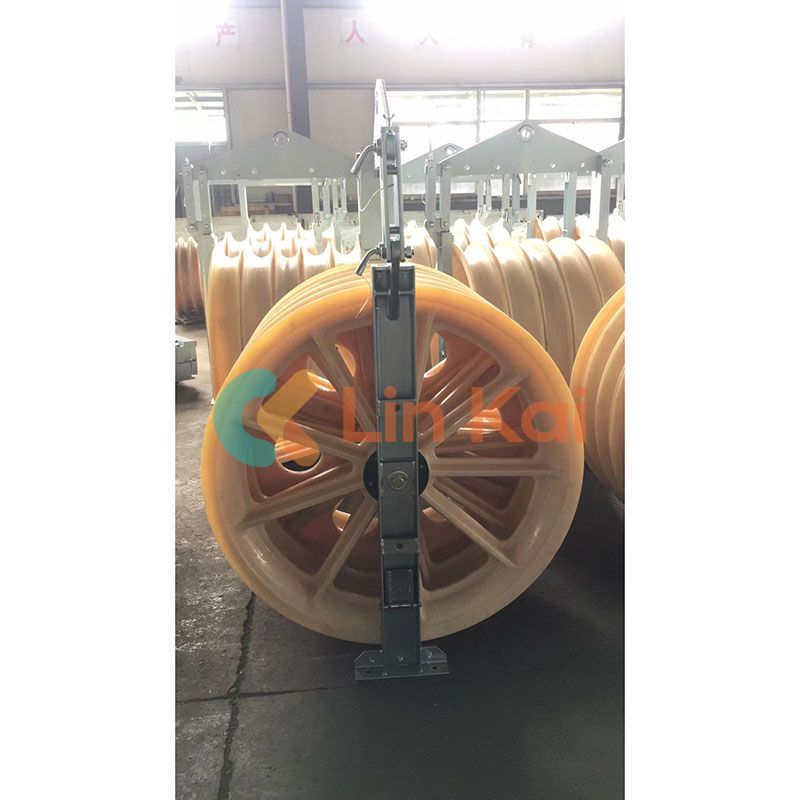

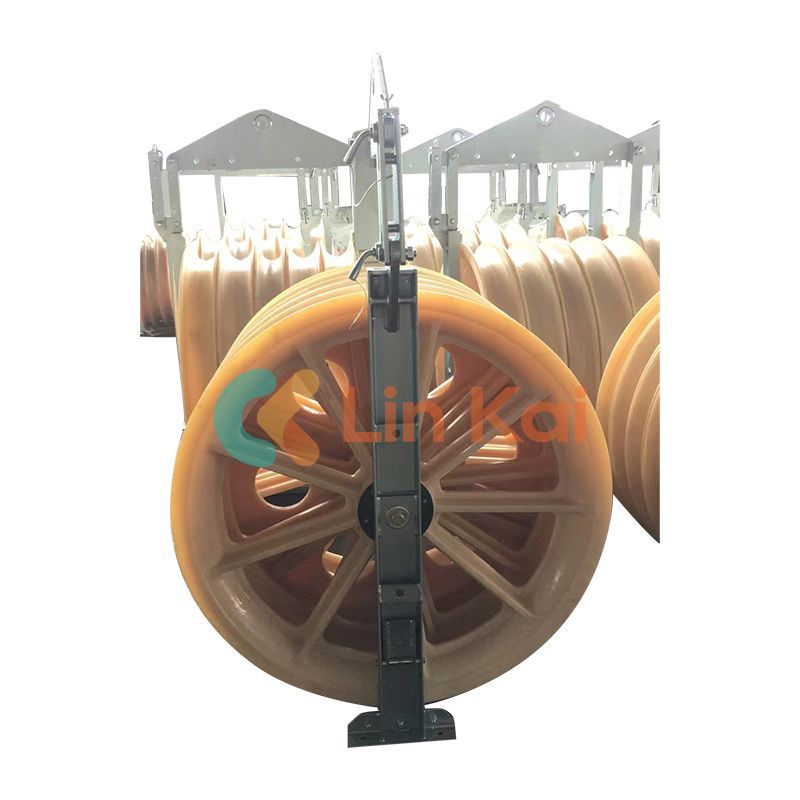

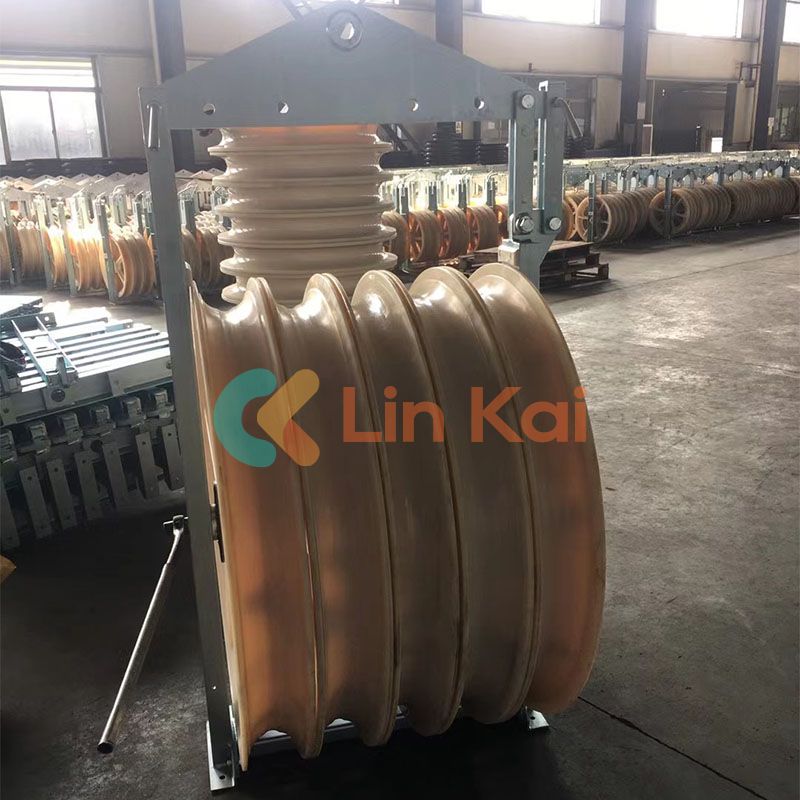

822mm Large Diameter Stringing Blocks, no10148 type product is designed with the assembled structure. And it is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation.
Furthermore, we can also provide the rubber coated aluminum sheave; the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.
