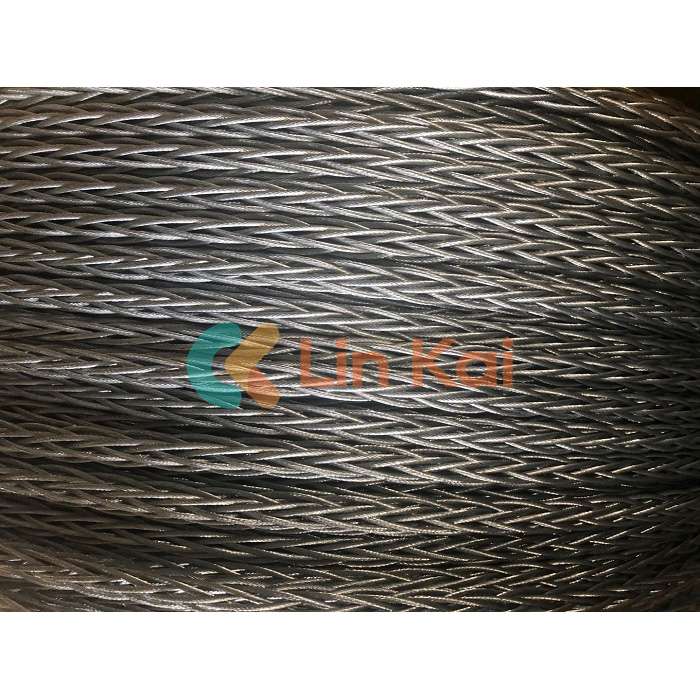

10mm Anti Twisting Steel Wire Rope is carefully braided from eight or twelve strands of extremely flexible and robust galvanized steel wire. The braided steel strand has high flexibility and great rotational stability under tension stress.
10mm Anti Twisting Steel Wire Rope has the capacity to equally distribute pressure throughout the fundamental wires. When stringing overhead transmission lines, using a specific rope can help to increase efficiency.

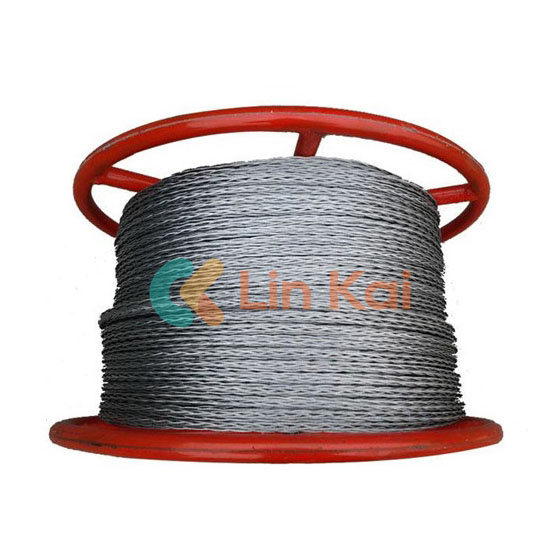

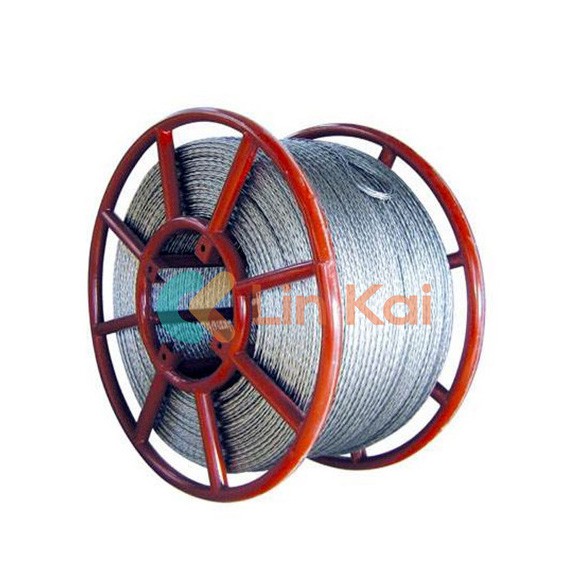

The 10mm Anti Twisting Steel Wire Rope is neatly packed in a steel drum that can be installed straight into the puller's reel winder.
Anti twisting braided steel wire rope is used as pilot wire rope for pulling conductors or OPGW cable in overhead transmission line stringing operation.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Lubricated Weight (kg/1000m) |
|
18202A |
10 |
70.00 |
Φ2.3 |
1960 |
350 |
10mm Anti Twisting Steel Wire Rope is made using reverse winding technology, which can effectively prevent the twisting deformation of the steel wire rope. It has the characteristics of fatigue resistance, good durability, high tensile strength, and long service life. It is widely used in lifting, lifting, conveying, and construction fields.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
