When laying overhead transmission lines, 16mm Anti Twist Steel Wire Rope is utilized as the pilot wire rope to draw conductors or OPGW cable. Braided using 1960 MPa high-strength galvanized steel wire, 16 mm anti-twisting braided steel wire rope resists rotation when being pulled.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18208A |
16 |
160 |
Φ3.5 |
1960 |
800 |

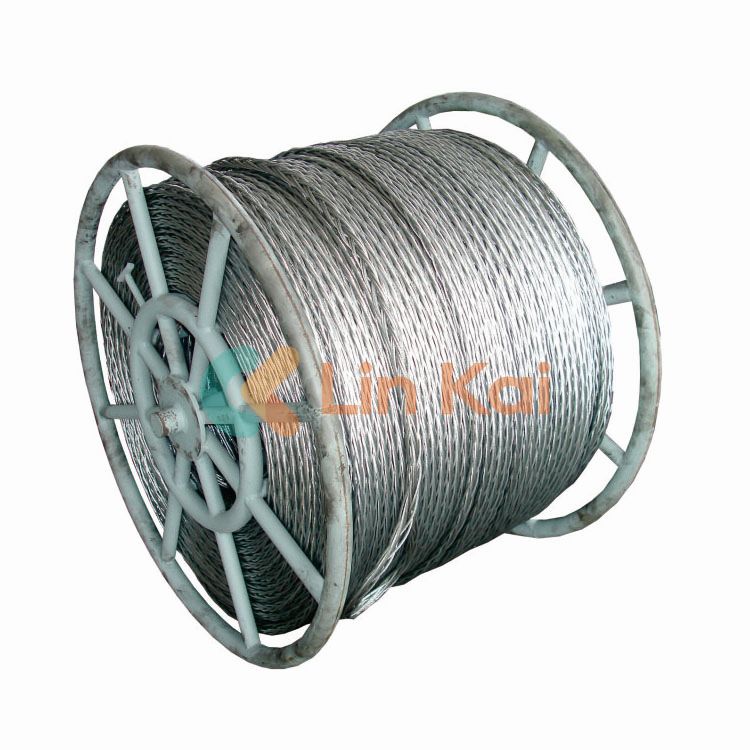

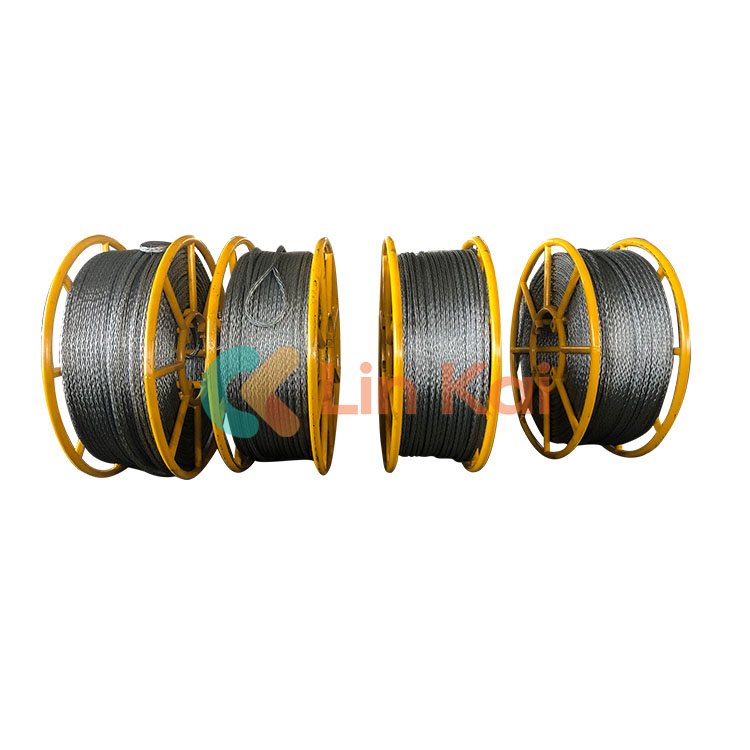

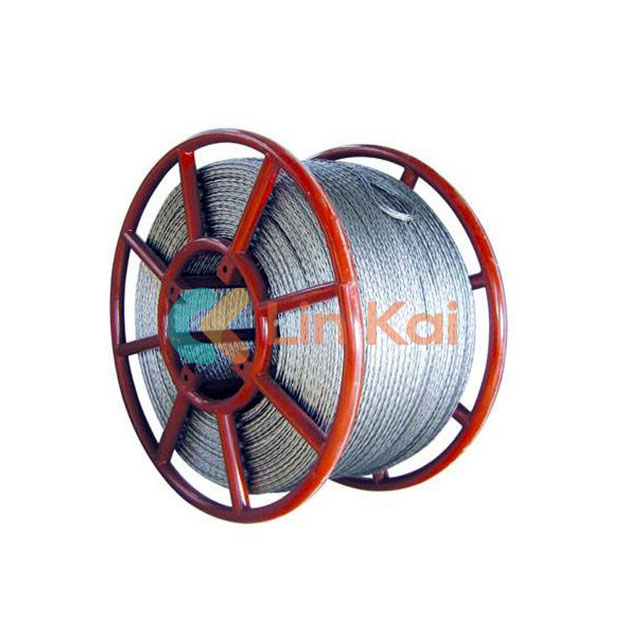

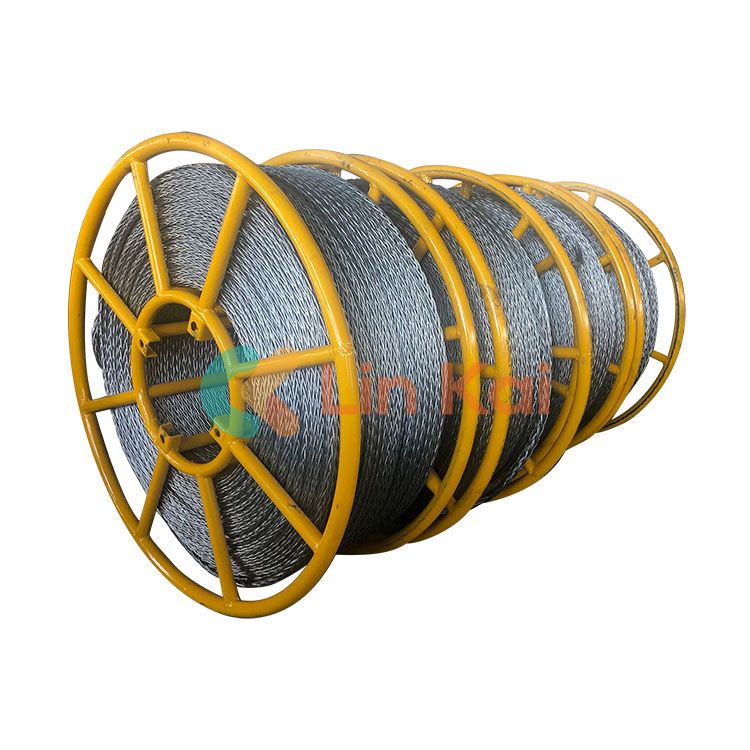

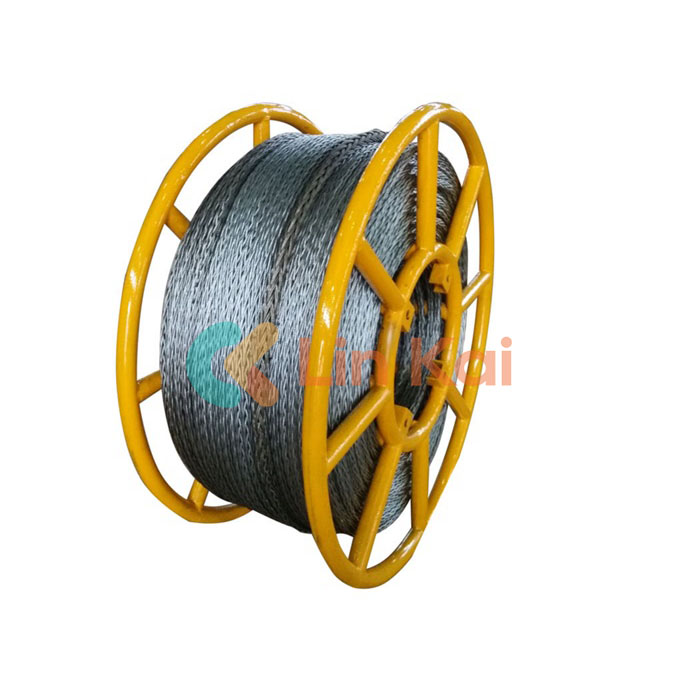

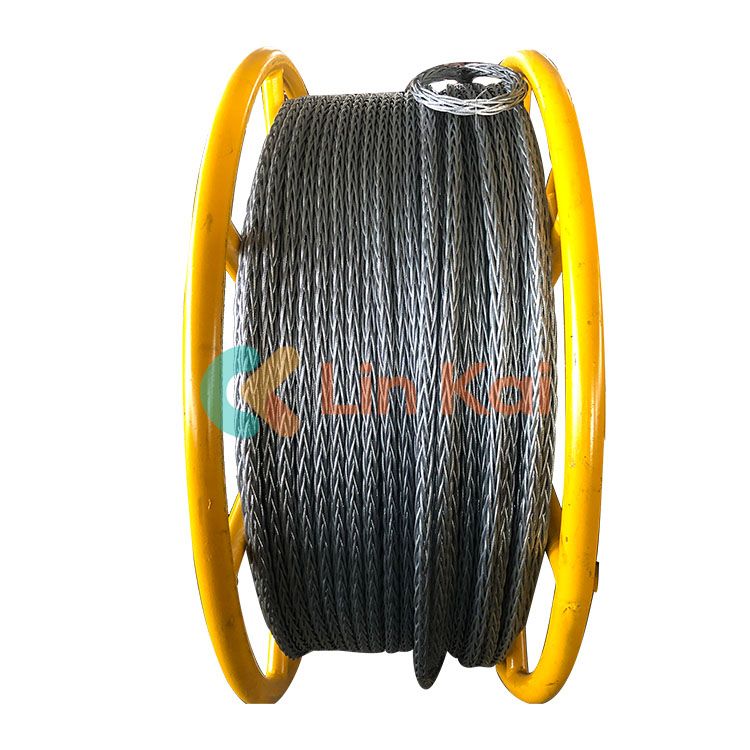

16mm Anti Twist Steel Wire Rope is braid from 12 strands high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force. 16mm steel rope is made of 3.5 mm single steel wire, and be packed into 1200mm X 1100mm X560mm GSP series reel, with 1000m/reel.
Our 16mm Anti Twist Steel Wire Rope has been exported to more than 50 countries in the world. We have 8 strands, 12 strands, 18 strands type anti twisting steel wire rope for different size up to 42mm diameter.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
