13mm Anti Twisting Braided Steel Wire Rope, twelve strands of very flexible and strong galvanized steel wire are carefully braided to create anti-twisting braided steel wire rope. High flexibility and total stability to rotation under tension stress characterize the braided steel strand.
This 13mm Anti Twisting Braided Steel Wire Rope from reliable Chinese manufacturers and suppliers is well-known for its excellent quality, durability, and stability. It provides precision and safety in demanding applications. Each rope is covered by a one-year warranty, demonstrating its dependability and appropriateness for crucial technical applications.
In the process of stringing overhead transmission lines, conductors or OPGW cable are pulled using anti-twist braided steel wire rope as a pilot wire rope.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Lubricated Weight (kg/1000m) |
|
|
18205A |
13 |
115.00 |
Φ3.0 |
1960 |
630 |
|
13mm Anti Twisting Braided Steel Wire Rope is braided from 12 strands of 1X19W wire, 1000 meter/drum

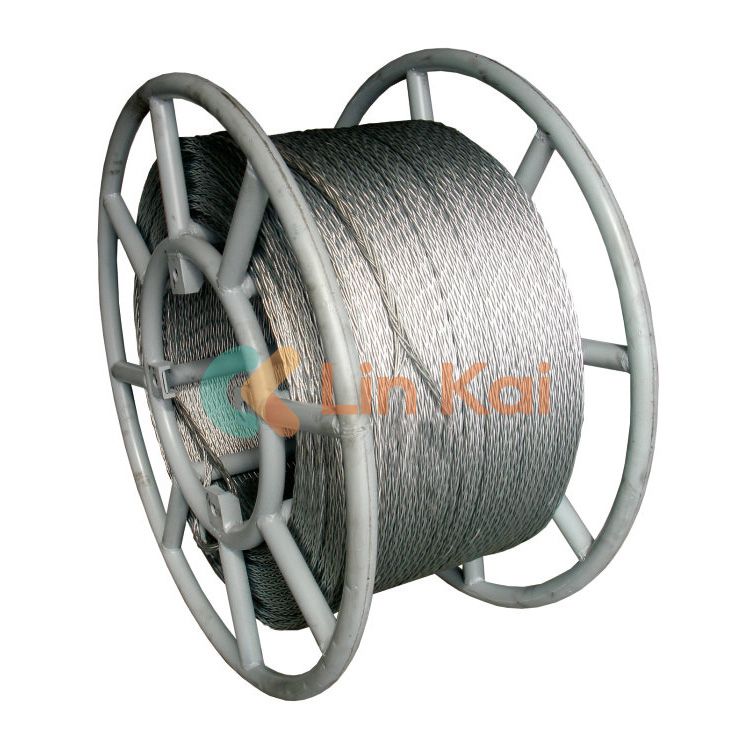

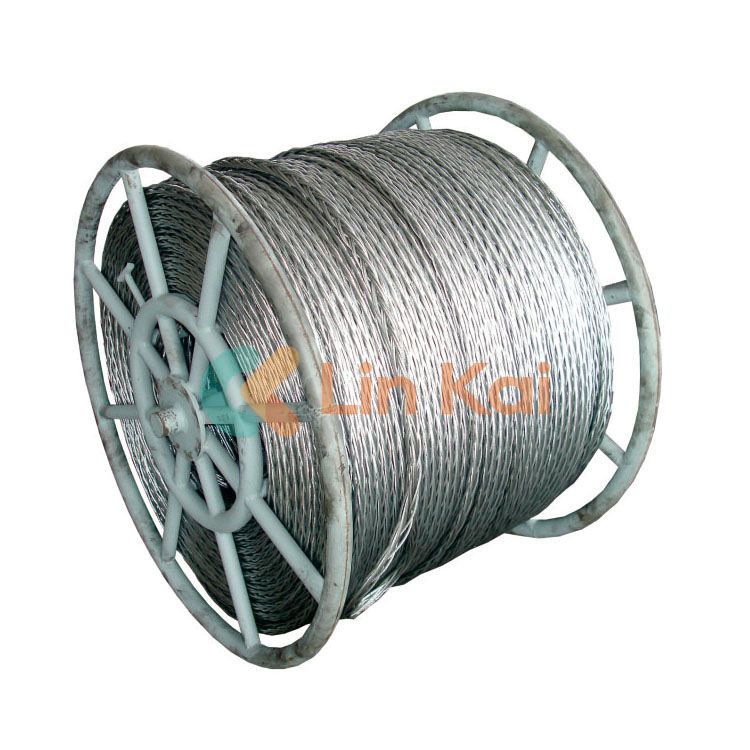

Packed in 1200mm diameter steel drum
13mm Anti Twisting Braided Steel Wire Rope is made using reverse winding technology, which can effectively prevent the twisting deformation of the steel wire rope. It has the characteristics of fatigue resistance, good durability, high tensile strength, and long service life. It is widely used in lifting, lifting, conveying, and construction fields.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
