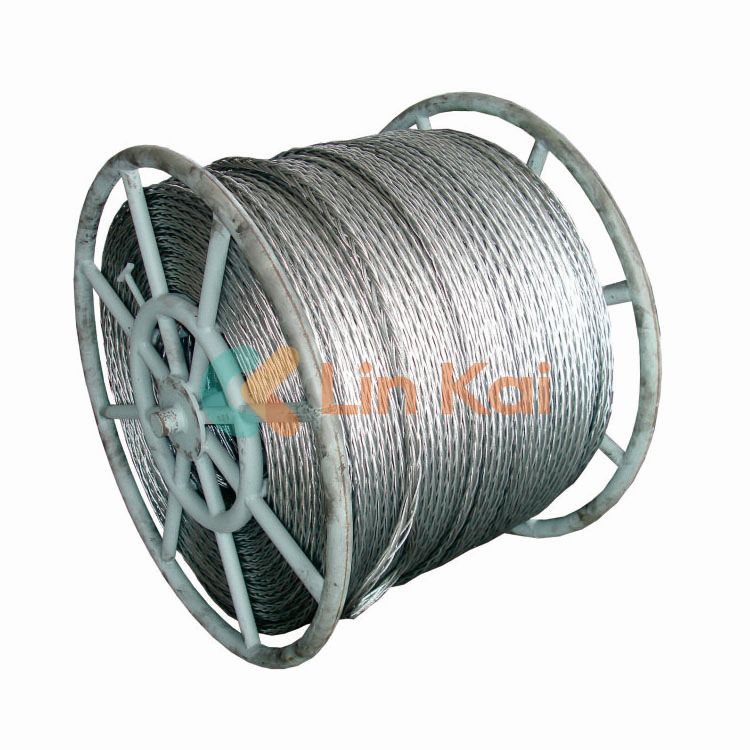

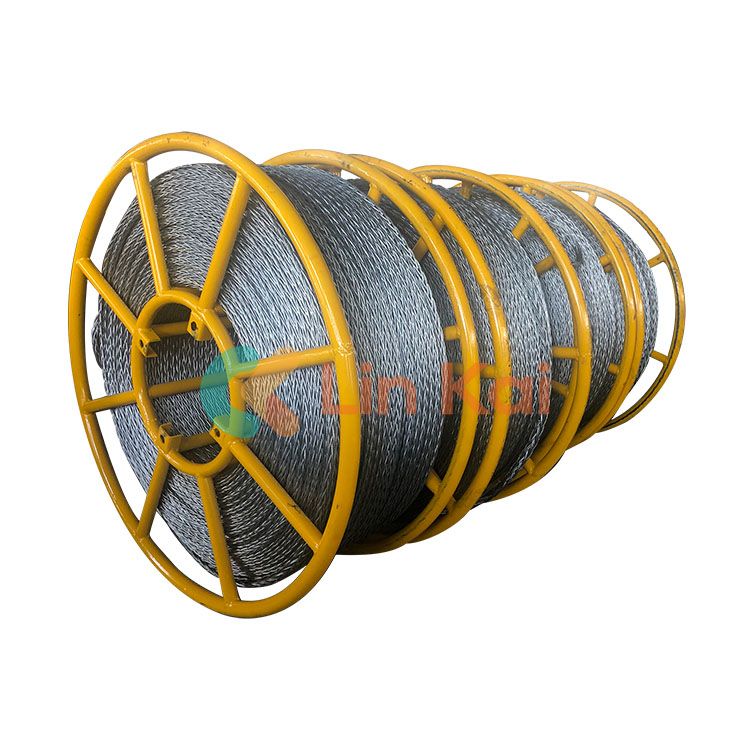

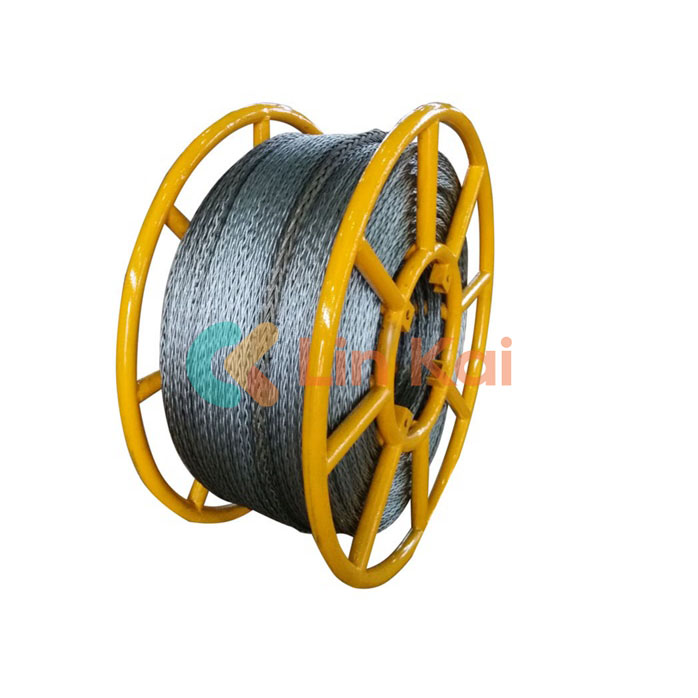

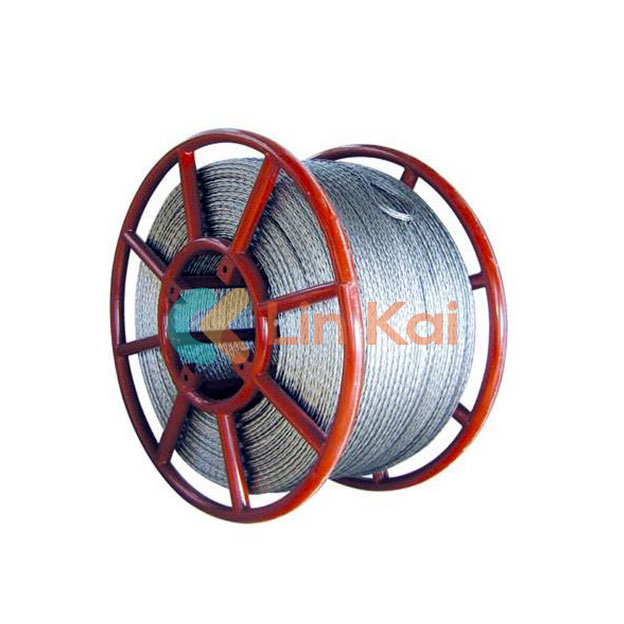

16mm Anti Twisting Braided Steel Rope is used for pulling two bundled conductors on overhead transmission line. It can be used as pilot rope for pulling bigger conductors on 500KV transmission line. 16mm Anti Twisting Braided Steel Rope is made of singe wire diameter 3.5mm steel wire, be braided from 12 strands of 1X19W wire, packed in 1200mm X1100MX 560mm, or be customized by client requirements, 1000M/reel.
16mm Anti Twisting Braided Steel Rope in bulk, manufactured in China, is used to pull two bundled conductors or larger conductors on a 500KV transmission line. 16mm Anti Twisting Steel Wire Rope is braided from 12 strands of 1X19W wire, 1000 meters per drum, and packed in a 1200mm diameter steel barrel.
16mm Anti Twisting Braided Steel Rope is used as pilot wire rope for pulling conductors or OPGW cable in overhead transmission line stringing operation.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18208A |
16 |
160 |
Φ3.5 |
1960 |
800 |
Highly quality Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The 16mm Anti Twisting Braided Steel Rope has high flexibility, complete stability to rotation under tension force.

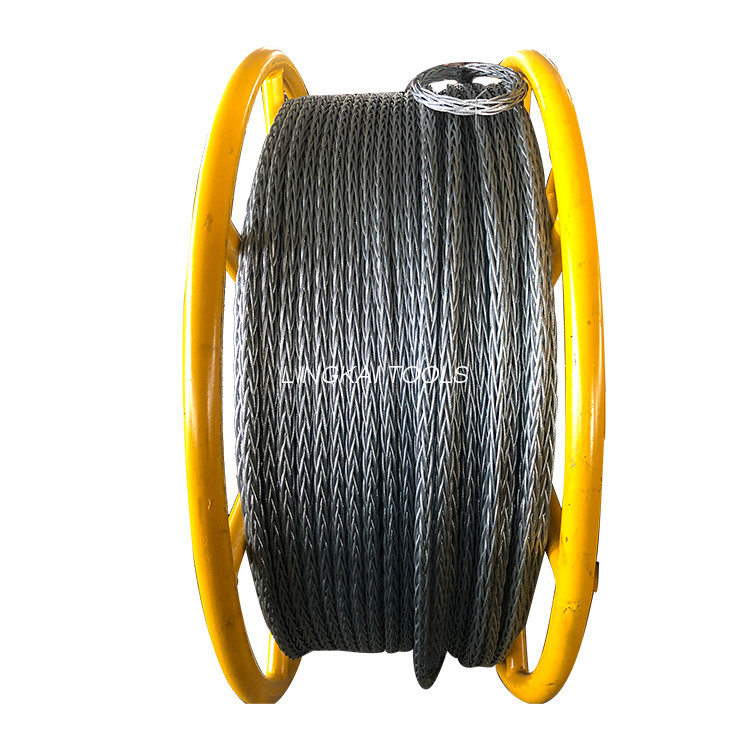

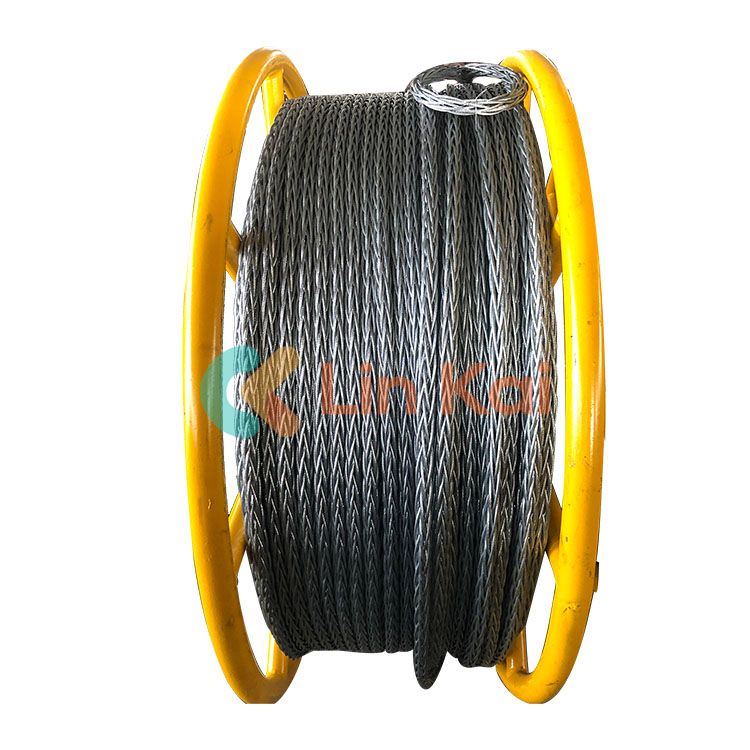

12 Strands Anti twisting braided steel wire rope can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The 16mm Anti Twisting Braided Steel Rope is packed in steel drum which can be installed directly on the reel winder of puller.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
Precautions when using 16mm Anti Twisting Braided Steel Rope
Anti Twisting Braided Steel Rope 16mm for pulling Two Bundled Conductors
Anti Twisting Galvanized Steel Wire Rope 18mm for pulling two conductors
Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors on transmission line
22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on
Anti Twist Wire Rope 24MM for stringing 6 conductors
Dyneema Rope for pulling conductors or OPGW on hot transmission line
Braided Dupont Polyester Rope for Transmission Line Stringing
16mm Anti Twisting Braided Steel Rope
Galvanized steel rope with braided strands that prevent twisting. High tensile strength steel strands used to make 16mm Anti Twisting Braided Steel ropes provide greater working and breaking loads with the same linear mass.
16mm Anti Twisting Braided Steel Rope made up of braiding strands.
Advantages:
High flexibility
Complete stability to rotation
Homogeneous distribution of pressure between the elementary wires
Increased efficiency during stringing operations
Strands with individual galvanized elementary wires
This 16mm Anti Twisting Braided Steel Rope offers the same technological advantages as the FUX product but, due to its high tensile strength steel strands, it provides higher working and breaking loads with the same linear mass.
