This 14mm Anti Twist steel wire rope is specially braided from 12 strands of high strength, highly flexible galvanized steel wire. The braided steel strand has high flexibility, and complete stability to rotation under tension force. The 14mm Anti Twist steel wire rope can homogeneously distribute the pressure between the elementary wires.
When stringing overhead transmission lines, this sturdy steel rope from a reputable manufacturer and supplier with factories in China increases productivity. With its trustworthy 1-year warranty, customers can purchase with confidence.
14mm Anti Twist steel wire rope is used as pilot wire rope for pulling conductors or OPGW cable in overhead transmission line stringing operations.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Lubricated Weight (kg/1000m) |
|
18206A |
14 |
130.00 |
Φ3.2 |
1960 |
710 |

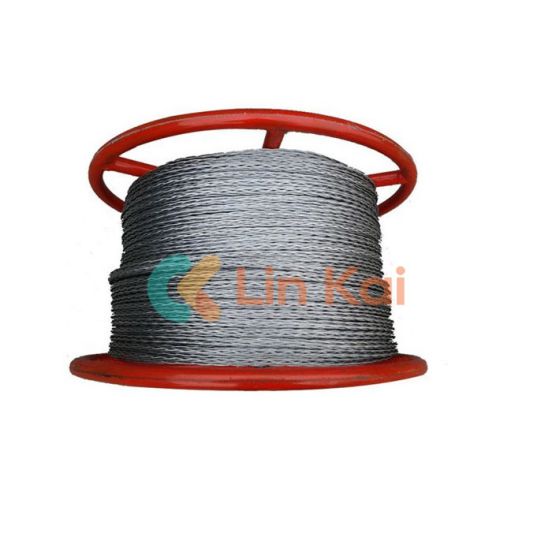

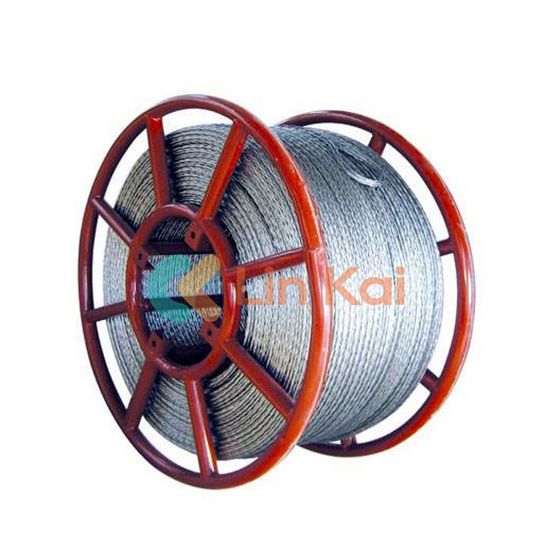

14mm rope is braided from 12 strands of 3.2mm 1X19W steel wire, 1000 meter/drum
Packed in 1200mm diameter steel drum.
The main structure of the 14mm Anti Twist steel wire rope is composed of multiple strands of steel wire rope wound, and there is a specially made steel core wound at the core of the steel wire rope, which can effectively prevent the twisting deformation of the steel wire rope. Anti-twist steel wire rope has the characteristics of fatigue resistance, good durability, high tensile strength, and long service life. At the same time, 14mm Anti Twist steel wire rope also has good flexibility and high load-bearing capacity
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
