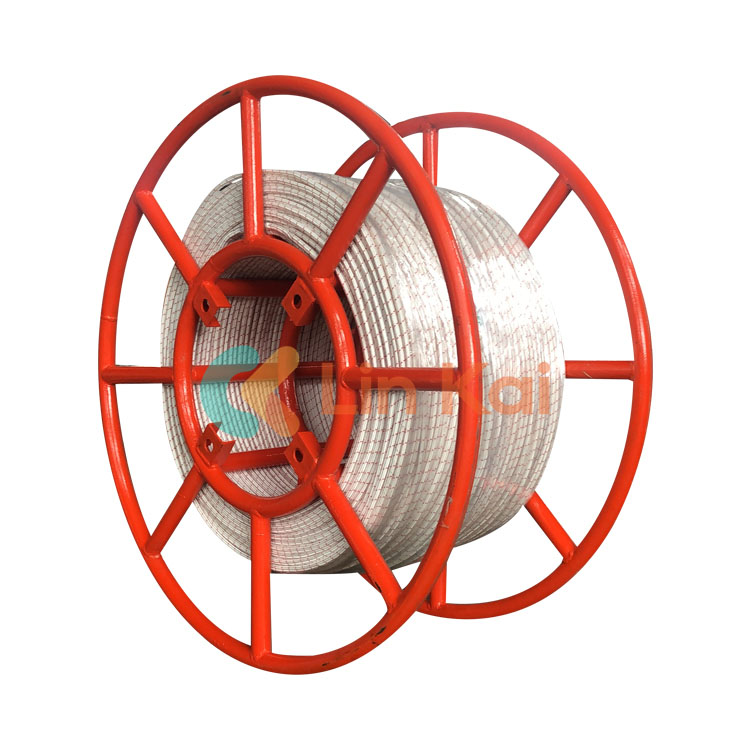

The use of 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing produced by Lingkai factory made in China.
is essential for mechanical pulling and tensioning release conductors, as it provides the necessary pulling force or leading rope. This 11MM Anti Twist Steel Wire Rope is particularly useful for overhead transmission lines, where it is used to pull single conductors or OPGW.
Moreover, Durable 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing is suitable for use on super-high transmission lines, where it is used to pull bigger conductors, resulting in faster and more efficient transmission line stringing work. One of the main benefits of this wire rope is its unique design, which prevents twisting during pulling, ensuring a more secure and stable work environment.
Overall, the use of 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing 1 Years Warranty is a critical component of any mechanical pulling and tensioning release conductors project, making it an ideal choice for power transmission professionals.
Our brand, Lingkai, offers customizable services for the Quality 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing. This product, with model number Anti-twist steel wire rope, is produced in Ningbo, China and is certified with ISO CE. The minimum order quantity is 2000m and the pricing is based on the latest rates. The packaging details include a drum or reel, and the delivery time takes 7-10 days. Payment terms are T/T and the supply ability is 200 KM PER MONTH.
The 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing comes in two different strand options, 12 or 8. It has a high strength broken load and is light and flexible. It is used for lifting, rigging, and towing purposes.
We also offer customization services for the Anti-Twist Steel Wire Rope. The 20mm rope is ideal for pulling four bundled conductors on a transmission line. The 12MM rope is suitable for pulling a single conductor or OPGW.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
