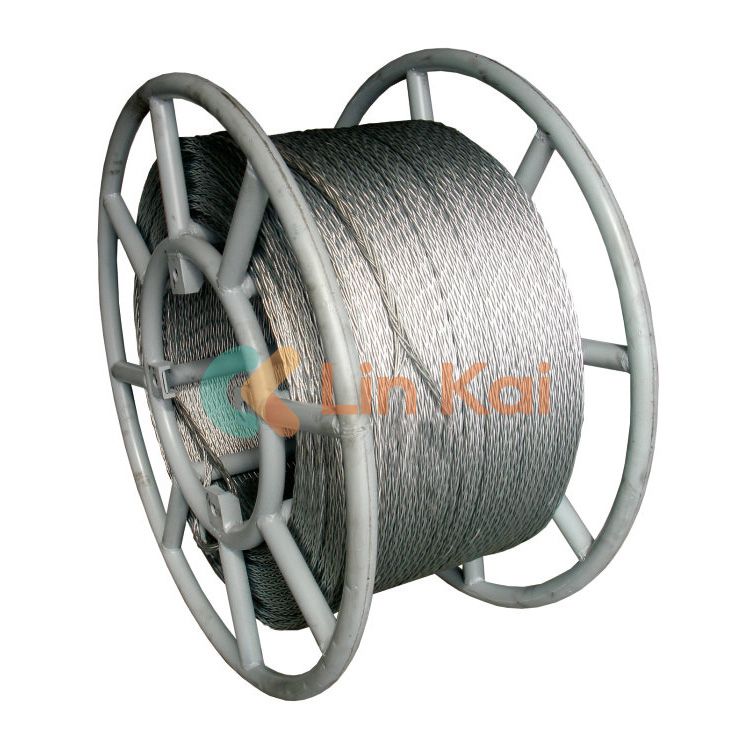

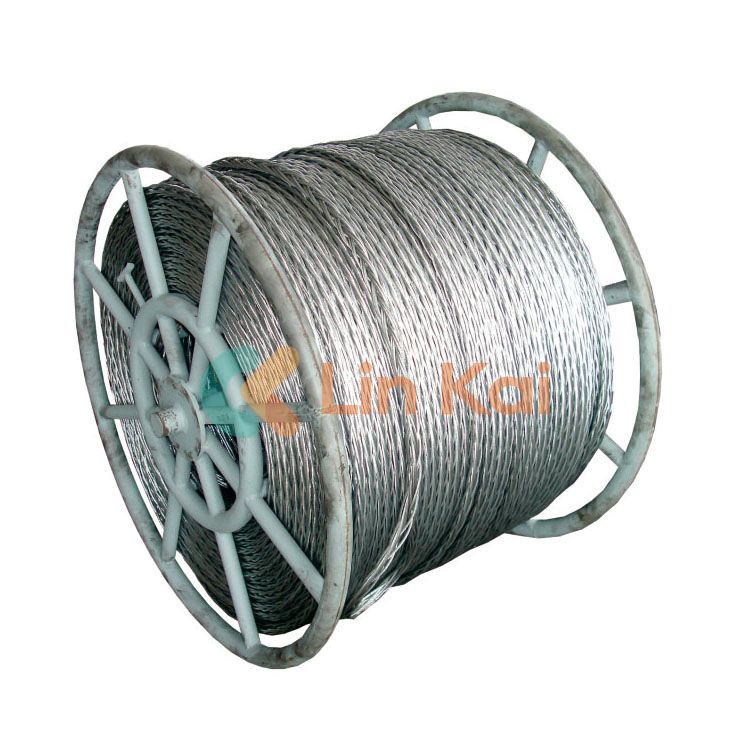

Ningbo Lingkai created and manufactured our own braiding machines for anti-twisting steel wire rope with eight, twelve, and eighteen strands. Our 11mm Anti Twisting Braided Steel Ropes are rapid, have a tight braiding force, and balance the force and speed of the braids between the strands.
It comes in two types, with eight or twelve strands of microscopic anti-twisting braided steel wire, and is designed for efficiency and dependability in industrial applications. It is also backed by a solid 1-year guarantee, assuring long-lasting performance.
11mm Anti Twisting Braided Steel Rope, when stringing overhead transmission lines, anti-twisting braided steel wire rope is utilized as the pilot wire rope to draw conductors or OPGW cable.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Lubricated Weight (kg/1000m) |
|
|
18203A |
11 |
82.00 |
Φ2.5 |
1960 |
420 |
|
We produce 8 strands, 12 strands, 18 strands anti-twisting steel wire rope according to customer's requirement. 8 strands is used for braiding small diameter rope up to 13mm diameter, 12 strands is usually used for rope up to 26mm diameter. 18 strands is used for big diameter rope up to 34 mm diameter.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
|
18212A |
22 mm |
316 KN |
4.8 mm |
1960 |
1500 |
|
|
18213 |
23 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
|
18213A |
24 mm |
360 KN |
5.2 mm |
1960 |
1800 |
|
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
|
The main structure of 11mm Anti Twisting Braided Steel Rope is composed of multiple strands of steel wire rope wound, and there is a specially made steel core wound at the core of the steel wire rope, which can effectively prevent the twisting deformation of the steel wire rope. 11mm Anti Twisting Braided Steel Rope has the characteristics of fatigue resistance, good durability, high tensile strength, and long service life. At the same time, it also has good flexibility and high load-bearing capacity.
