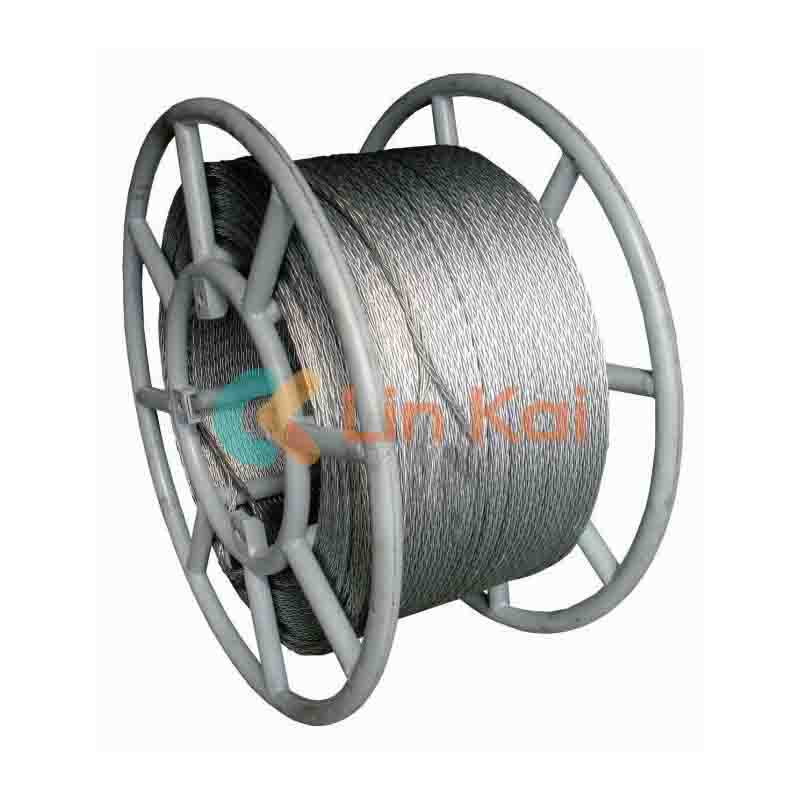

The Durable Lingkai factory 16MM Anti Twist Steel Wire Rope for Two bundled conductors stringing is commonly used in mechanical pulling and tensioning release of conductors as either a pulling force or leading rope. Its specialized anti-twisting design is essential for increasing efficiency and ensuring a safer overhead transmission line stringing work.
In particular, 16MM Anti Twist Steel Wire Rope for Two bundled conductors stringing are widely utilized in the power transmission industry for pulling a single conductor or OPGW on the overhead transmission line. Additionally, they offer reliable and sturdy support for super-high transmission lines, capable of handling bigger conductors that require more power to pull.
The advantages of using 16MM Anti Twist Steel Wire Rope for Two bundled conductors stringing in power transmission applications is clear. These specialized ropes can minimize downtime caused by wire twists and tangles, and they help ensure a quick, efficient, and cost-effective installation process.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
