Support and Services:The 22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line is designed to provide high performance and durability in various applications such as cranes, elevators, and mining equipment.
Our technical support team is dedicated to assisting you with any questions or issues you may encounter during installation or operation of the product. We also offer maintenance and repair services to ensure the longevity and reliability of your Anti Twist Steel Rope.

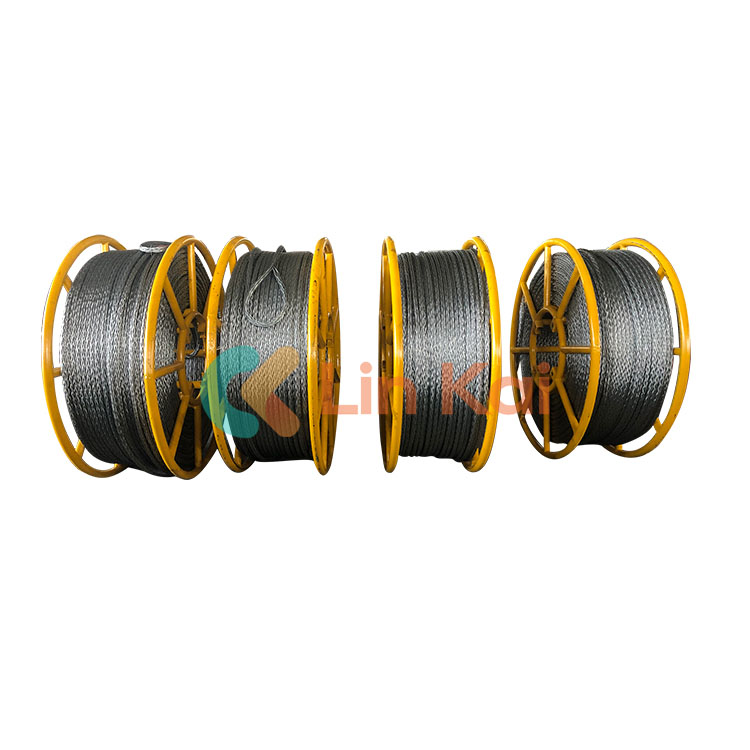

The 22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line comes in a sturdy GSP reels with the product name and description printed on the front., the 22mm Anti Twisting Pilot Wire Rope is securely wrapped in plastic to prevent any damages during transit.
The 22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line is shipped via standard shipping and usually takes 3-15 business days for delivery. Once shipped, customers will receive a tracking number to track the delivery status of their product.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
