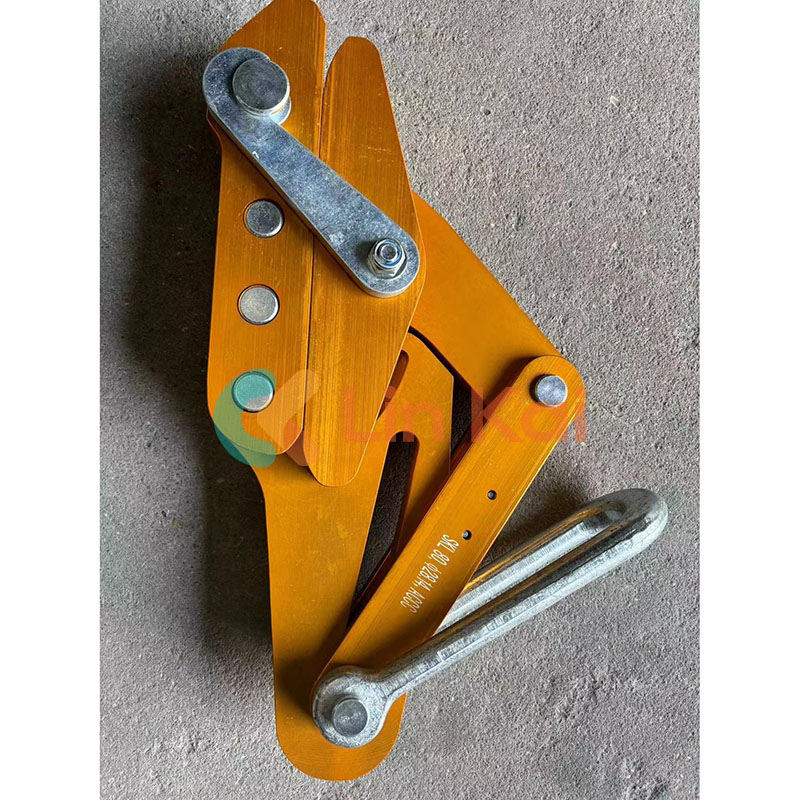

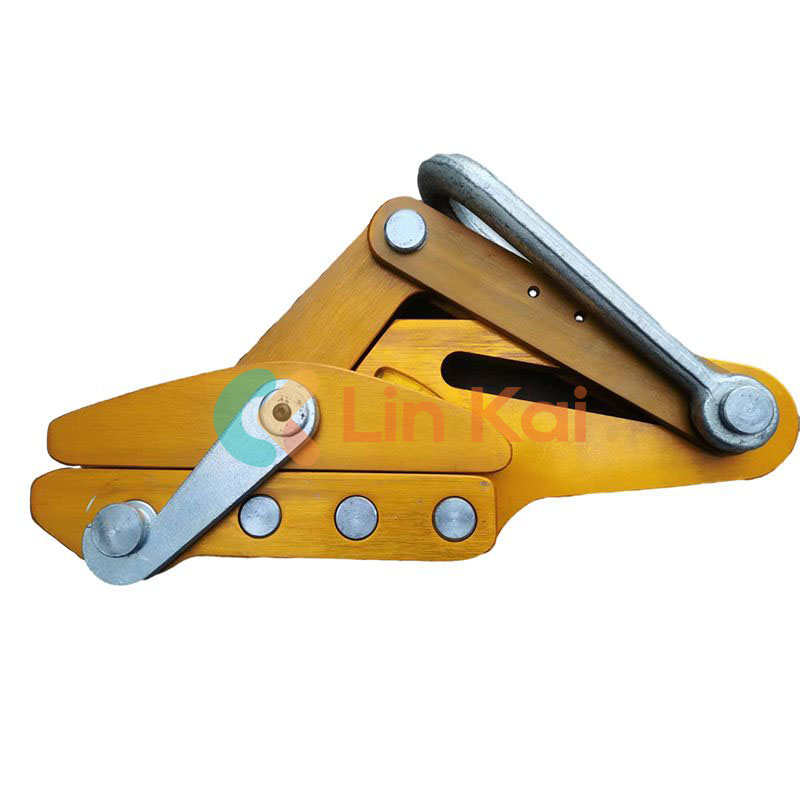

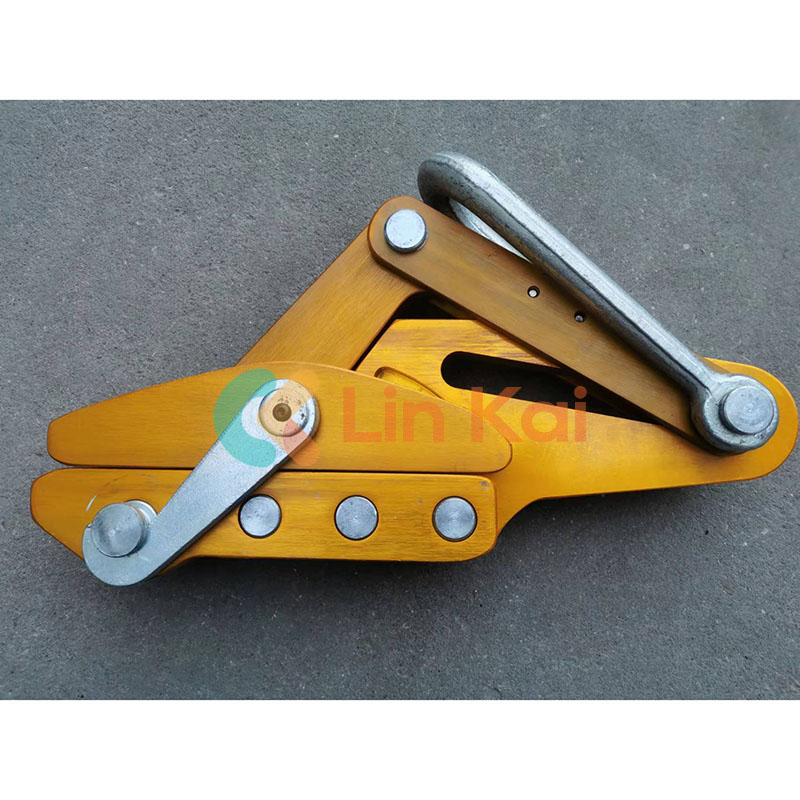

ACCC Conductor Clamp

Transmission line stringing tools replaced aluminum alloy with the ACCC conductor clamp, which is composed of a compact aluminum magnesium alloy. Additionally, Ningbo Lingkai can supply various couplings for various cables, including aluminum conductors, earth wire, steel wire ropes, insulated conductors, and anti-twisting steel wire ropes.

ACCC Conductor Clamp

Come along ACCC conductor clamp made in China is used for stringing aluminum conductors and ACCC conductor on overhead transmission line. All ACCC conductor clamps are produced with special jaw for protection of surface of aluminum conductor and hold the conductor well in operation. All the clamps have safety factor of 3.

Customized ACCC conductor clamp, the whole body is made of High strength Alloy Steel with special jaw length of 270mm, 320mm, and other longer mm. It is per the ACCC opening size.

Our newest ACCC conductor clamp are all used the ACSR body, and under ACSR body to make the jaw, the opening size, and the force rated load. So it looks like the same as ACSR come along clamp, with all hooked type. Wholesale ACCC conductor clamp is equipped with difference size of interchangeable aluminum jaws, light weight and good for protecting the surface of conductors. Special size jaws can be ordered specially.

We have exported these clamps to a few Europe countries, India, Vietnam, Indonesia, Malaysia, Canada, United States, Brazil, Chile etc.

Alloy Steel Automatic Come Along Clamp for ACCC conductors

Item No.

Model

Work Load (KN)

Breaking Load (KN)

Size

Data (mm)

Inter - changeable Jaw

Conductor Size Range (mm)

Weight (kg)

13246A

SK-60

60

180

A

115

conductor diameter 23-35 mm

23-26

19

B

340

26-29

C

590

29-32

D

23-35

32-35






Hot Tags: ACCC Conductor Clamp, China ACCC Conductor Clamp, manufacturers, suppliers, Factory
