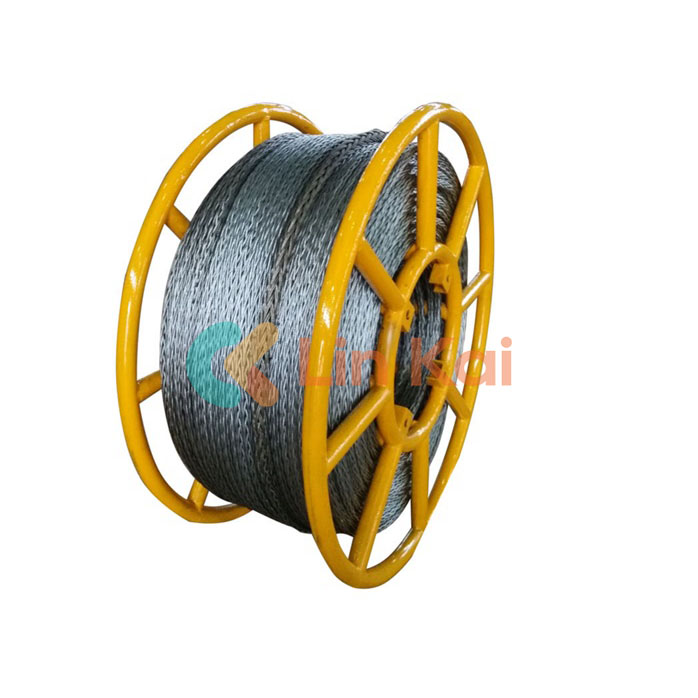

The Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors on transmission line has a unique structure that consists of several strands of steel wire rope wound together. A specially designed steel core is wound at the center of the steel wire rope to prevent twisting deformation.
This design makes the High Quality Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors highly effective in applications that require frequent or prolonged use. One of the significant advantages of the Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors is its fatigue resistance, making it capable of withstanding high levels of wear and tear. It is also durable, with a high tensile strength that gives it a long service life when used appropriately.
Additionally, the Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors offers excellent flexibility and has a high load-bearing capacity, making it ideal for use in a range of settings, including construction, industrial, and marine applications.
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
18201A |
9mm |
50 kN |
2.0mm |
1960 |
250 |
|
18202A |
10mm |
70 kN |
2.3mm |
1960 |
356 |
|
18203A |
11 mm |
85 kN |
2.5mm |
1960 |
410 |
|
18204A |
12 mm |
100 kN |
2.7mm |
1960 |
510 |
|
18205A |
13 mm |
115 kN |
3.0mm |
1960 |
620 |
|
18206A |
14 mm |
130 kN |
3.2mm |
1960 |
710 |
|
18207A |
15mm |
143 kN |
3.3mm |
1960 |
770 |
|
18208A |
16mm |
160 kN |
3.5mm |
1960 |
800 |
|
18209A |
18mm |
206 kN |
4.0mm |
1960 |
1060 |
|
18210A |
19mm |
236 kN |
4.3mm |
1960 |
1210 |
|
18211A |
20mm |
266 kN |
4.5mm |
1960 |
1310 |
|
18212A |
22 mm |
313 KN |
4.8 mm |
1960 |
1500 |
|
18213A |
24 mm |
342 KN |
5.0 mm |
1960 |
1650 |
|
18214A |
26 mm |
400 KN |
5.4 mm |
1960 |
1950 |
|
18215A |
28 mm |
462 KN |
6.0 mm |
1960 |
2020 |
