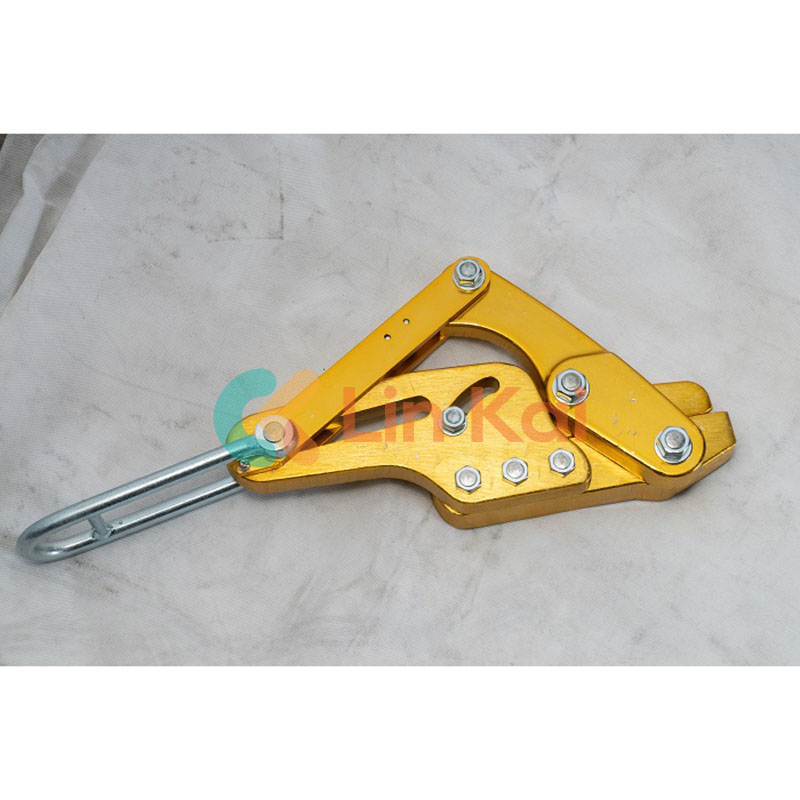

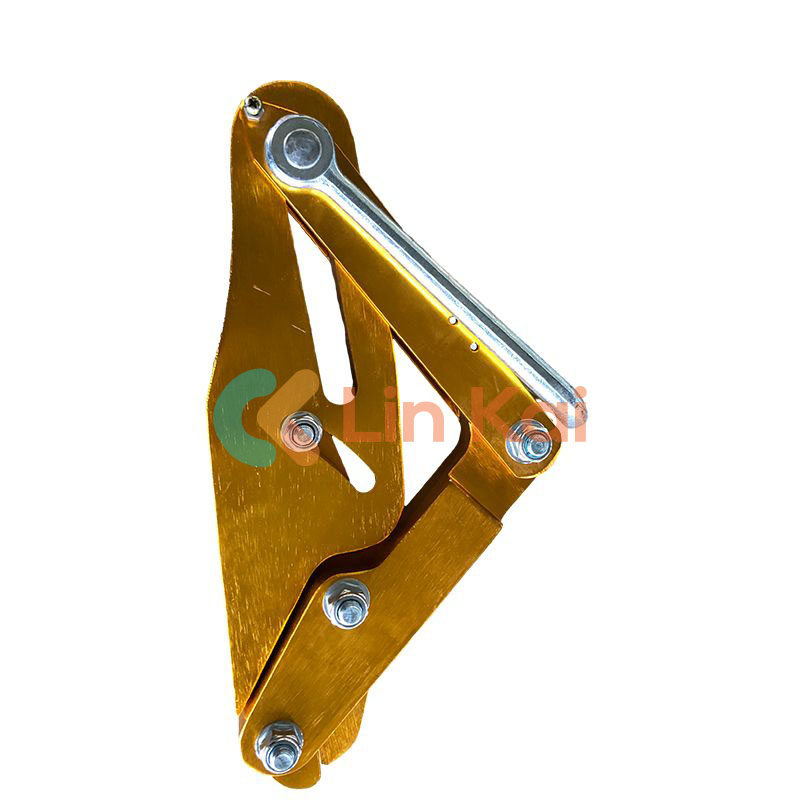

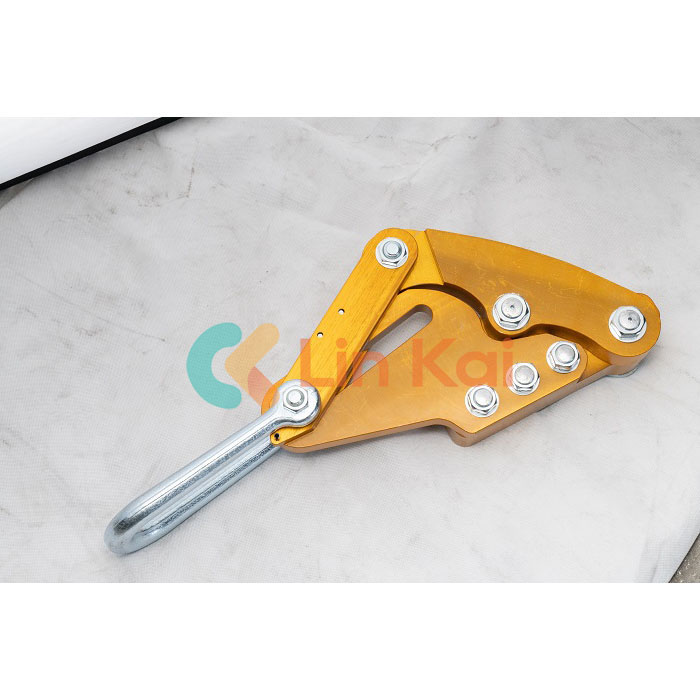

Automatic come along clamps for aluminum conductor made in China Ningbo Lingkai is made of the Aluminum magnesium alloy compact, to replace the aluminum alloy, it has more strength than before type. The customized Automatic come along clamps for aluminum conductor it is per the ACSR diameter size to see the opening max.
Automatic come along clamps for aluminum conductor can specified the max range cross of ACSR diameter, technically we will not advise to cross more than 5mm, due to the more the less hold force of the Automatic come along clamps for aluminum conductor, and it will increase the risk in the operation.

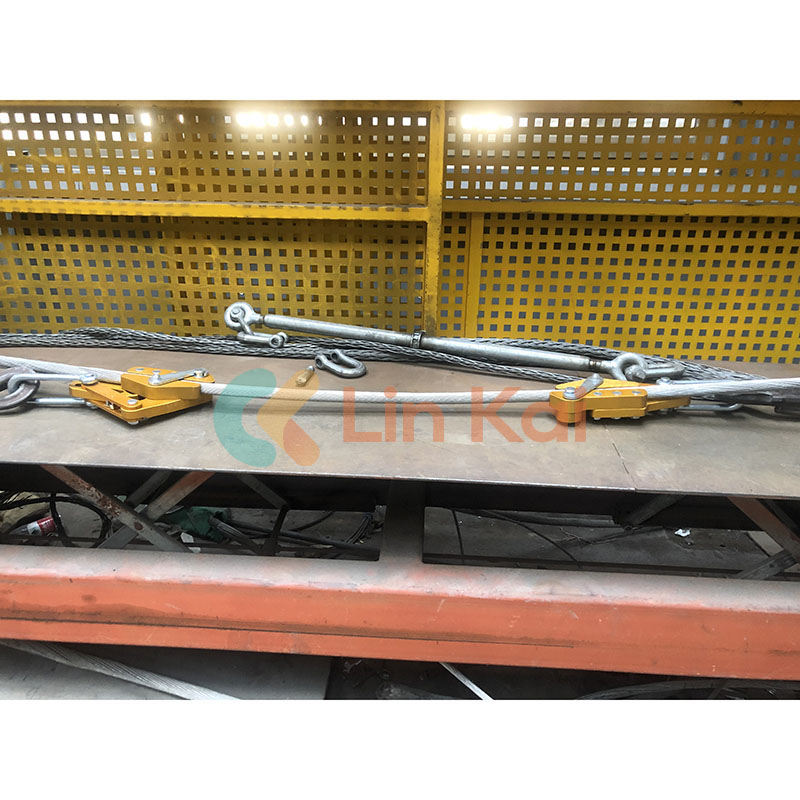

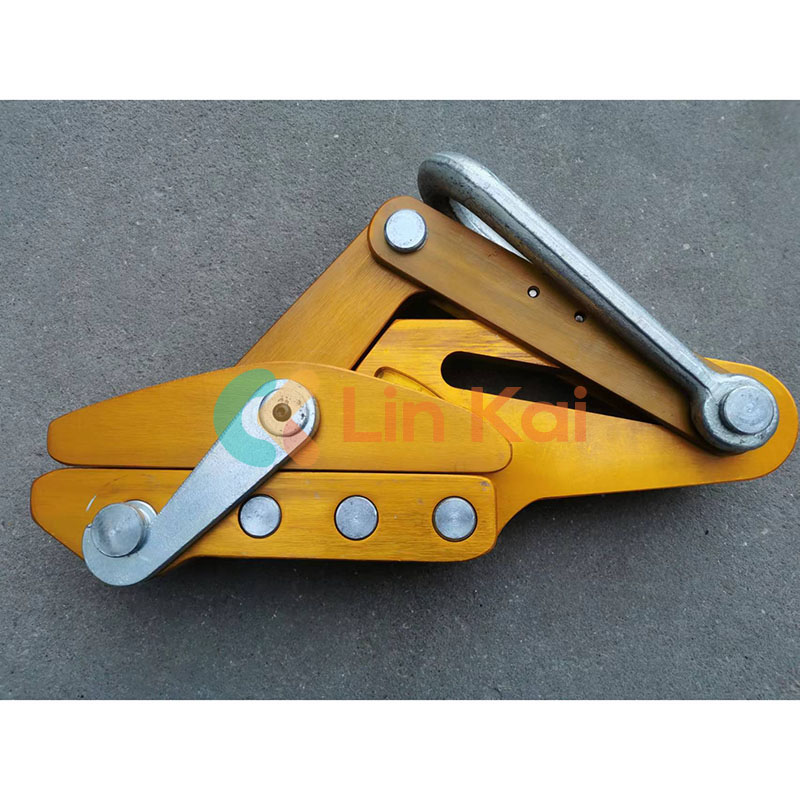

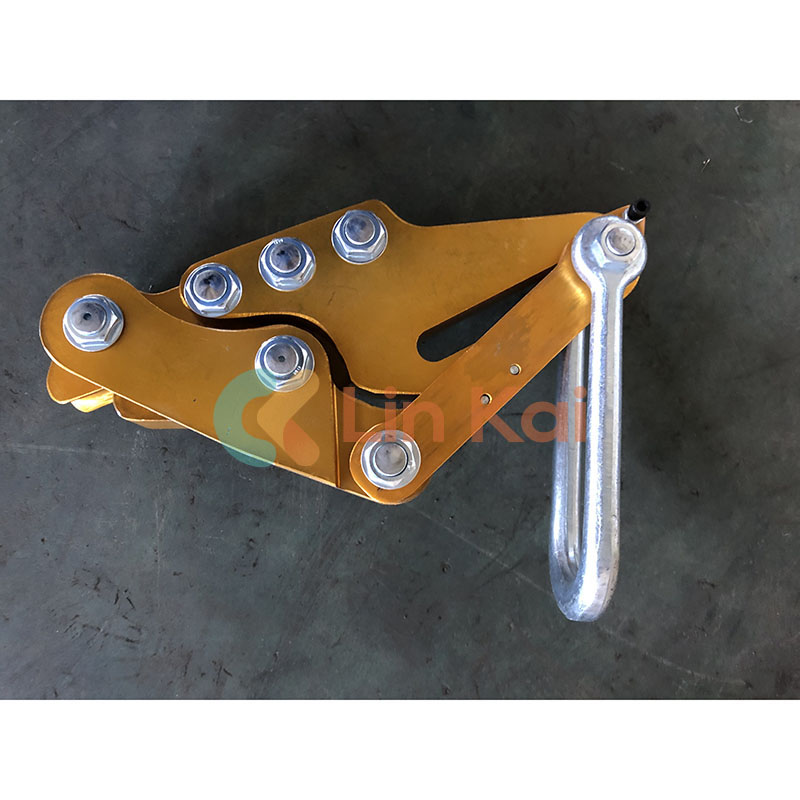

Newest Automatic come along clamps for aluminum conductor is to maintain temporary tension until it can be permanently terminated. Some Automatic come along clamps for aluminum conductor with hook type needed, it is beyond the LGJ ACSR 400, along with the hook in the Along Clamp For Conductor it can make sure the force much more bigger, and make the whole operation much more easily for the worker, also safety factors will be good !
|
Item number |
Model |
Rated Load （KN） |
Applicable Conductor |
Max Open （MM） |
Weight （KG） |
|
13221 |
SKL-7 |
7 |
LGJ25-70 |
14 |
1.0 |
|
13222 |
SKL-15 |
15 |
LGJ95-120 |
18 |
1.4 |
|
13223 |
SKL-25 |
25 |
LGJ150-240 |
24 |
3.0 |
|
13224 |
SKL-40 |
40 |
LGJ300-400 |
32 |
4.0 |
|
13225A |
SKL-50C |
50 |
LGJ500-630 |
36 |
6.6 |
|
13224A |
SKL-40A |
40 |
LGJ400 |
32 |
4.3 |
|
13225 |
SKL-50A |
50 |
LGJ500 |
34 |
7.0 |
|
13226 |
SKL-50B |
50 |
LGJ630 |
36 |
7.3 |
|
13227 |
SKL-60 |
60 |
LGJ720 |
38 |
9.2 |
|
13228 |
SKL-70 |
70 |
LGJ900 |
42 |
14.0 |
|
13229 |
SKL-80 |
80 |
LGJ1000 |
45 |
18.0 |
|
13229A |
SKL-80A |
80 |
LGJ1120 |
48 |
18.0 |
