Braided UHMWPE rope for stringing overhead transmission line
  • Braided UHMWPE rope for stringing overhead transmission lineBraided UHMWPE rope for stringing overhead transmission line

Braided UHMWPE rope for stringing overhead transmission line

Braided UHMWPE rope for stringing overhead transmission lines made in China offer a smooth surface that self-lubricates, unmatched abrasion resistance, and high strength thanks to its hollow braid and 0.5mm–1.6mm diameter. For further security, Braided UHMWPE rope for stringing overhead transmission lines is most effective when used as whipping twine to bind rope ends and spliced eyes. strong webbing sewing cable; robust repair cord and sewing thread for bulky canvas, tarps, backpacks, and load-bearing apparatus; Utility wires and emergency fishing line outside.

Applications:

Braided UHMWPE rope for stringing overhead transmission line Made in China can also be used in live line or hot line pulling, which is a technique used to maintain power transmission while still energized. On the other hand, High Strength Braided UHMWPE rope for stringing overhead transmission line 1 Years Warranty is made from special polyester fiber that is precisely braided from 12 strands. It also has a protective layer that enhances its resilience to abrasion and impact. This Durable Braided UHMWPE rope for stringing overhead transmission line is particularly useful as a pilot rope or pulling rope during overhead transmission line stringing operations. Its soft and pliable design allows it to pass through pulleys and make corners smoothly without snagging or breaking.


The double layer high strength Dupont polyester fiber rope is braided in a special way that makes it anti-twisting and light weight. This type of fiber rope is commonly used as pilot rope or pulling rope during overhead transmission line stringing operations. Quality Braided UHMWPE rope for stringing overhead transmission line can also be utilized for hot line work, helicopter stringing, or drone stringing.

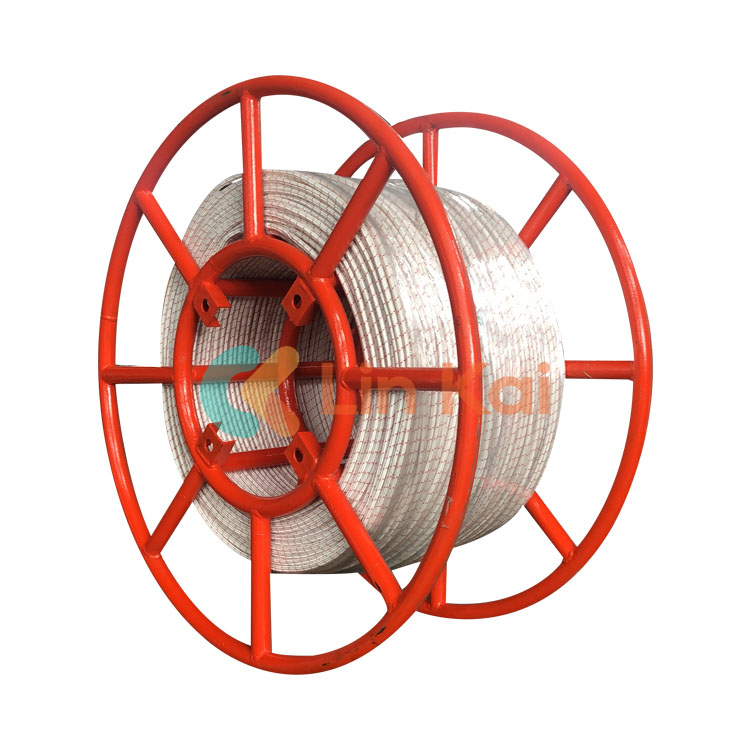

The high-strength fiber rope is packaged in a steel reel that can be easily installed onto the reel winder of a hydraulic puller. The reel effectively ensures the safe storage and transportation of the rope.

DOUBLE LAYER BRAIDED UHMWPE ROPE (DYNEEMA ROPE)

Item No.

Nominal diameter (mm)

Breaking Load (KN)

Diameter after covering Polyester (mm)

Net Weight (kg/1000m)

Weight After Covering (kg/1000m)

18170A

2

4.3

3

2.70

4.8

18170B

3

8.5

4.5

4.65

9.6

18170D

4

16.6

5.5

9.31

13.5

18170F

5

24.4

7

14

20

18170G

6

31.9

8

20

28.2

18170H

7

43.6

9

27

36

18170J

8

58.8

10

35

48.4

18170K

9

70.3

11

42

58.5

18170L

10

92.5

12

56

77

18170M

11

115

13

70

97

18170N

12

137

14

84

113.4

18170P

13

159

15

98

132

18170Q

14

180

16

106

150

18170R

16

211

18

132

177

18170S

18

296

21

186

247.3
