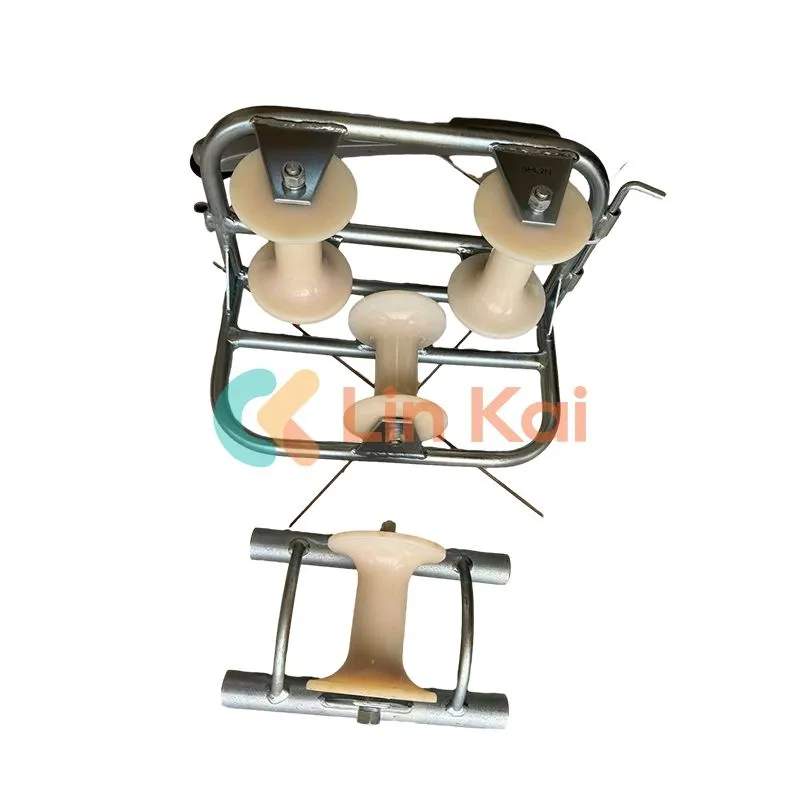

Our cable ground roller made in China Ningbo Lingkai Manufactures is ideal for cables with a diameter less than 200mm and comes equipped with both Nylon and Aluminum sheaves.
The triple sheave cable roller is perfect for larger diameter cables and can be customized to achieve any turning angle required.
Designed to protect cable extensions, our cable entrance protection roller can be placed at any angle inside a tube entrance. It has a sturdy and lockable zinc-coated steel surface and a single nylon sheave to keep cables properly aligned.
The D series cable entrance protection roller features an enhanced length fixed mechanism and a single nylon sheave.
Our cable pithead roller is an essential tool for protecting both cables and pulling ropes at the pithead.
Our Electrical Cable Pulling Tools are designed to make cable installation easier and more efficient. We offer a range of tools including durable Cable guide roller, cable winch, cable socks, and conduit snakes. Our products are made from high-quality materials and are built to withstand the demands of the job site.
Our team of technical experts is available to provide support and answer any questions you may have about our products. We also offer services such as product training and on-site support to ensure that you are getting the most out of our tools.
Whether you are working on a small residential project or a large commercial installation, our Electrical Cable Pulling Tools are the perfect solution for your cable installation needs.
|
Item No. |
Model |
Working load (KN) |
Diameter of Cable |
Construction of Cable Roller |
Weight (kg) |
|
21171 |
SHL1 |
10 |
Φ150 |
Casting Aluminum Frame Aluminum Roller |
5.4 |
|
21172 |
SHL1N |
10 |
Φ150 |
Casting Aluminum Frame Nylon Roller |
3.6 |
|
21181 |
SHL1B |
10 |
Φ160 |
Steel Plate Base Aluminum Roller |
5.5 |
|
21182 |
SHL1BN |
10 |
Φ150 |
Steel Plate Base Nylon Roller |
3.7 |
|
21183 |
SHL2BN |
10 |
Φ160 |
5.5 |
|
|
21184 |
SHL3BN |
10 |
Φ200 |
8.0 |
|
|
21191 |
SHL1G |
10 |
Φ150 |
Steel Tubing Frame Aluminum Roller |
5.1 |
|
21192 |
SHL1GN |
10 |
Φ150 |
Steel Tubing Frame Nylon Roller |
3.3 |
|
21193 |
SHL2GN |
10 |
Φ160 |
5.7 |
|
|
21194 |
SHL3GN |
10 |
Φ200 |
8.0 |
|
|
21201 |
SHLG1 |
10 |
Φ150 |
Steel Tubing Long Legs Aluminum Roller |
9.4 |
|
21202 |
SHLG1N |
10 |
Φ150 |
Steel Tubing Long Legs Nylon Roller |
7.8 |
Note: The Cable Guide Rollers are utilized for installing various subterranean power cables with a maximum diameter of Ø200mm; kindly select the appropriate roller based on the size of your cable.
Every sheaf is fixed on a bearing. The steel frame is galvanized.
|
Item No. |
Model |
Working load (KN) |
Size of Cables (mm) |
Weight (kg) |
|
21211 |
SHL |
8 |
≤ Ø80 |
5.5 |
|
21221 |
SHL2 |
10 |
≤ Ø150 |
12 |
|
21222 |
SHL2N |
10 |
≤ Ø150 |
10 |
|
21223 |
SHL3 |
10 |
≤ Ø150 |
11 |
|
21224 |
SHL3N |
10 |
≤ Ø150 |
9 |
Application: Cable Corner Rollers are used for installation power cable on corner of trench.
