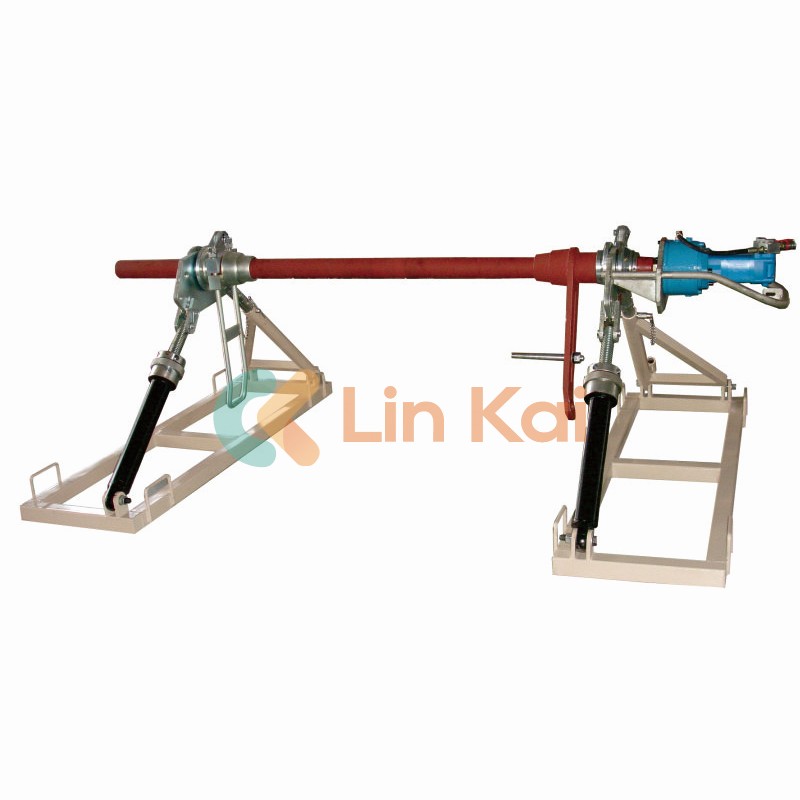

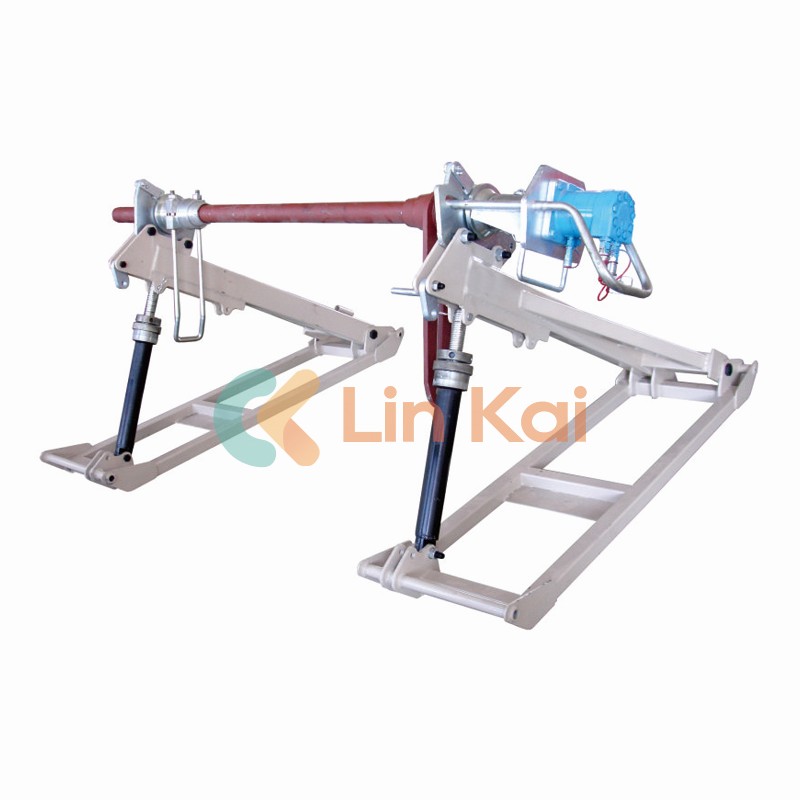

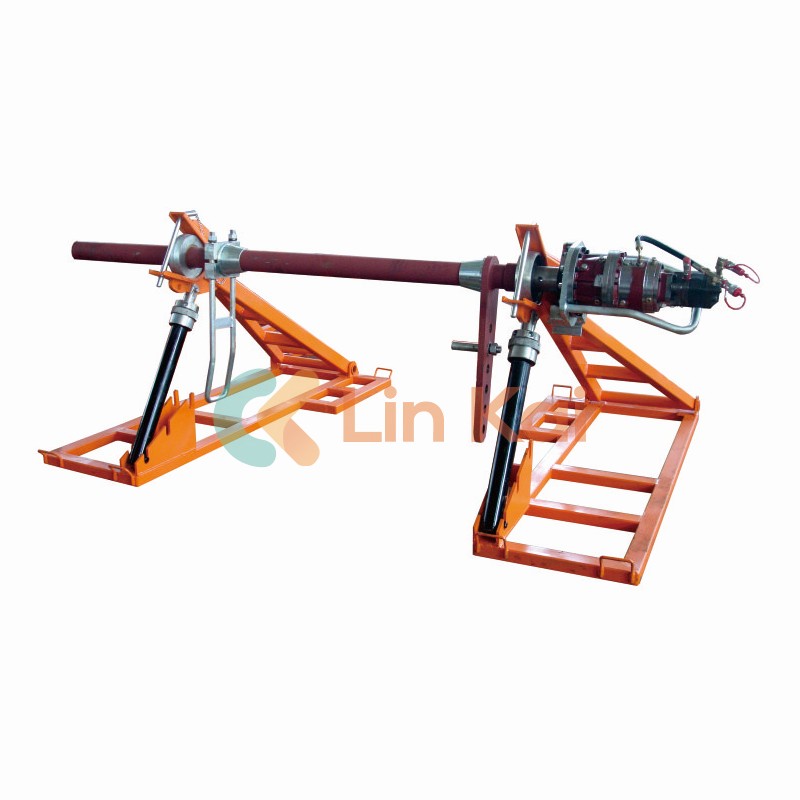

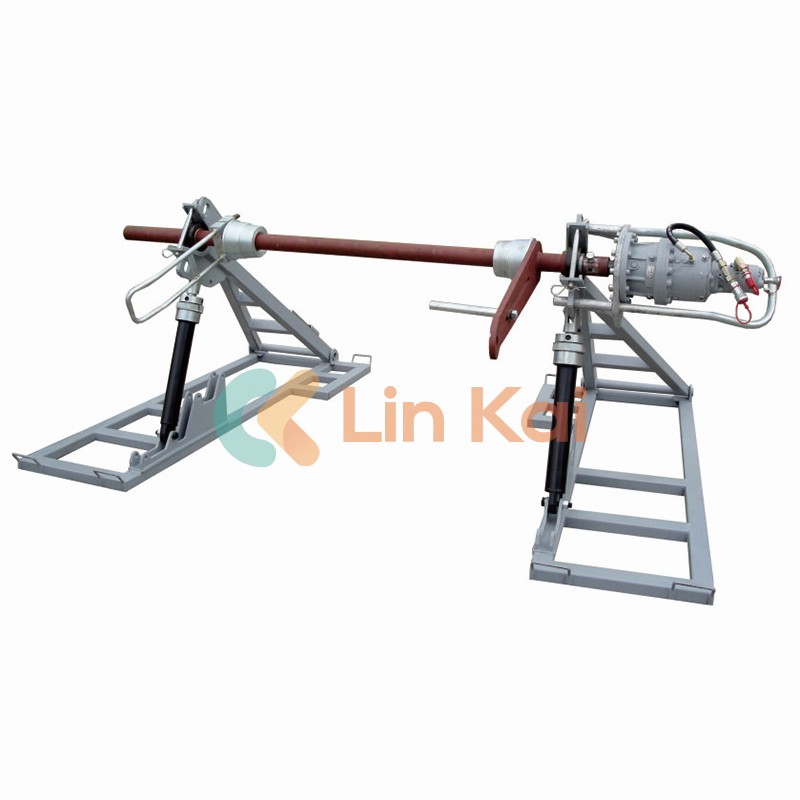

Conductor reel stands are in stock at Ningbo Lingkai Manufacture, and we imported the motors installed in the hydraulic conductor reel stands. It makes this large-capacity reel highly efficient in stringing line sites and lasts a long time.
While a hydraulic puller tensioner is used to stretch and tension conductor wire, hydraulic conductor reel, conductor reel stands supports offer a sturdy platform for holding and transporting conductor reels. The hydraulic puller tensioner coupling ought to inform us, and our coupling is compatible with all machine models; the principle remains the same, but we must comply with our instructions to complete this coupling. Meanwhile, there is freedom to choose and modify the hydraulic tube's length.
|
Item number |
15155 |
15158 |
|
|
Model |
SIYZ10 |
SIYZ15 |
|
|
Applicable reel |
Diameter of coil (mm) |
Φ2000～3000 |
Φ2000～2800 |
|
Max width of coil (mm) |
1700 |
1950 |
|
|
Diameter of axle hole (mm) |
Φ125-130 |
||
|
Maximum weight (kg) |
10000 |
15000 |
|
|
Max working torque (N.m) |
3300 |
4500 |
|
|
Max Speed (rpm) |
45 |
45 |
|
|
Axle diameter |
Φ94 |
Φ119 |
|
|
Weight (kg) |
597 |
789 |
|
|
Length of hydraulic tube |
15 |
20 |
|
