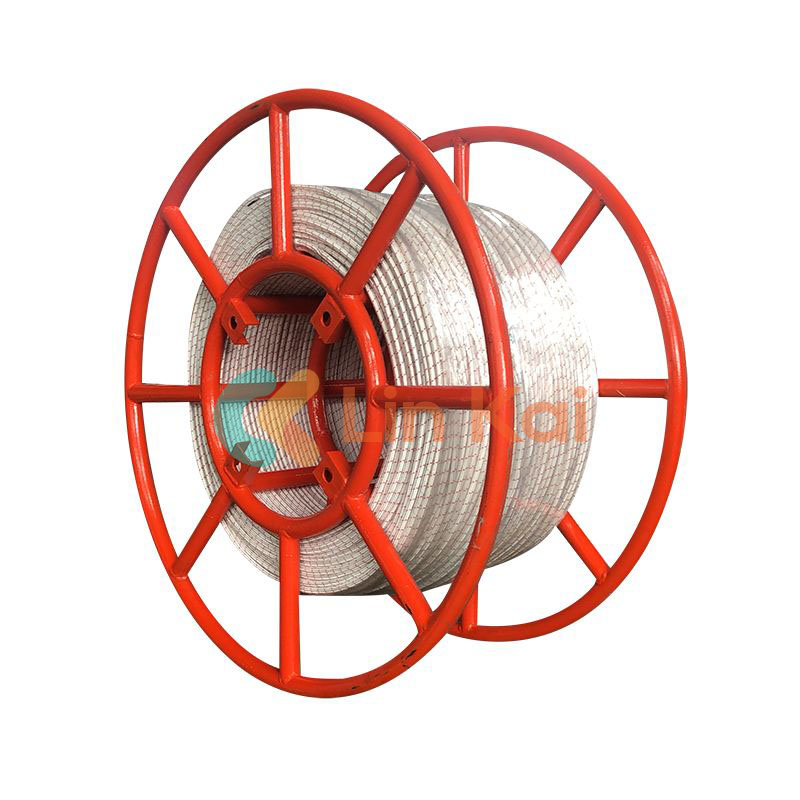

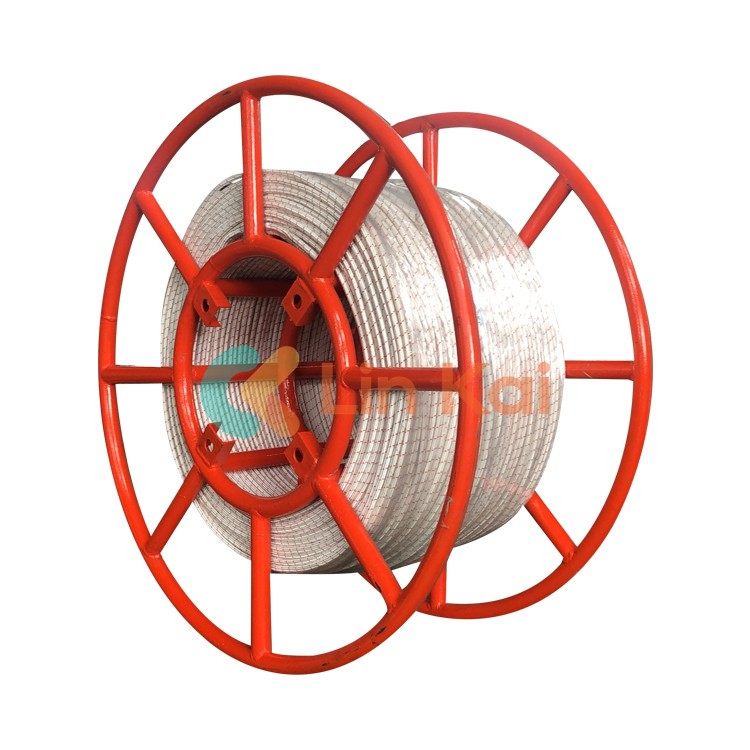

The High Strength Dyneema Rope for pulling conductors or OPGW on hot transmission line 1 Years Warranty, on the other hand, is made from special polyester fibers that are braided together using 12 strands. This allows the rope to be exceptionally strong and durable, while also providing it with the flexibility it needs to handle the complex movements that are often required during overhead transmission line stringing operations.
Dyneema Rope for pulling conductors or OPGW on hot transmission line Made in China is also covered with a protective layer to help extend its lifespan. Like Dyneema rope, the High Strength Dupont Rope is ideal for use as a pilot rope or pulling rope. It can easily handle heavy loads while still remaining stable and secure.
Durable Dyneema Rope for pulling conductors or OPGW on hot transmission line is frequently used for overhead transmission line stringing and other construction projects. Whether you are working on a utility repair project or a major construction job, the High Strength DuPont Rope is a reliable and durable choice for all of your needs.
|
Item No. |
Nominal diameter (mm) |
Breaking Load (KN) |
Diameter after covering Polyester (mm) |
Net Weight (kg/1000m) |
Weight After Covering (kg/1000m) |
|
18170A |
2 |
4.3 |
3 |
2.70 |
4.8 |
|
18170B |
3 |
8.5 |
4.5 |
4.65 |
9.6 |
|
18170D |
4 |
16.6 |
5.5 |
9.31 |
13.5 |
|
18170F |
5 |
24.4 |
7 |
14 |
20 |
|
18170G |
6 |
31.9 |
8 |
20 |
28.2 |
|
18170H |
7 |
43.6 |
9 |
27 |
36 |
|
18170J |
8 |
58.8 |
10 |
35 |
48.4 |
|
18170K |
9 |
70.3 |
11 |
42 |
58.5 |
|
18170L |
10 |
92.5 |
12 |
56 |
77 |
|
18170M |
11 |
115 |
13 |
70 |
97 |
|
18170N |
12 |
137 |
14 |
84 |
113.4 |
|
18170P |
13 |
159 |
15 |
98 |
132 |
|
18170Q |
14 |
180 |
16 |
106 |
150 |
|
18170R |
16 |
211 |
18 |
132 |
177 |
|
18170S |
18 |
296 |
21 |
186 |
247.3 |
